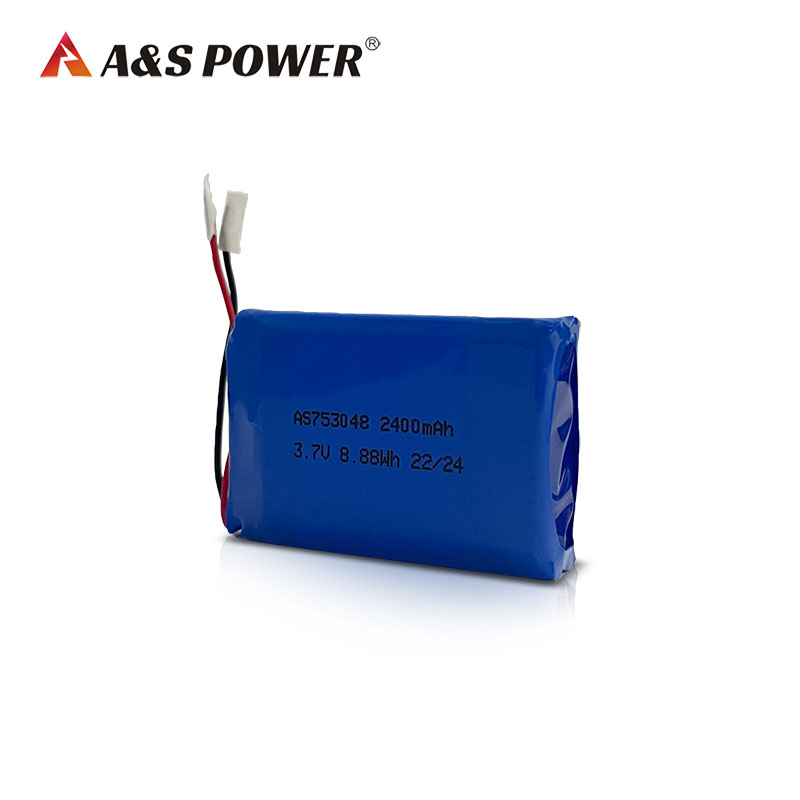

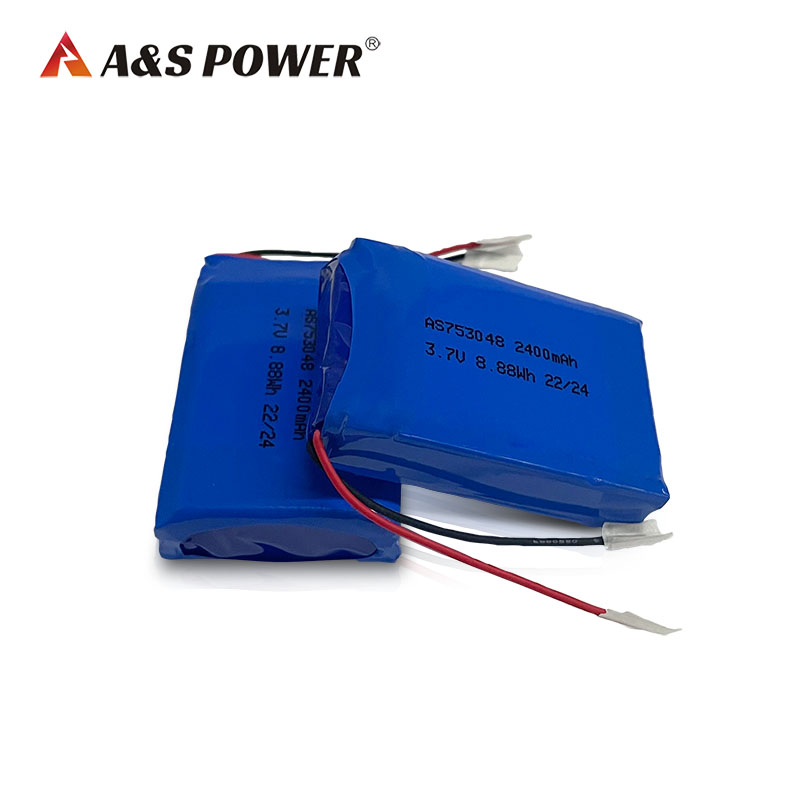

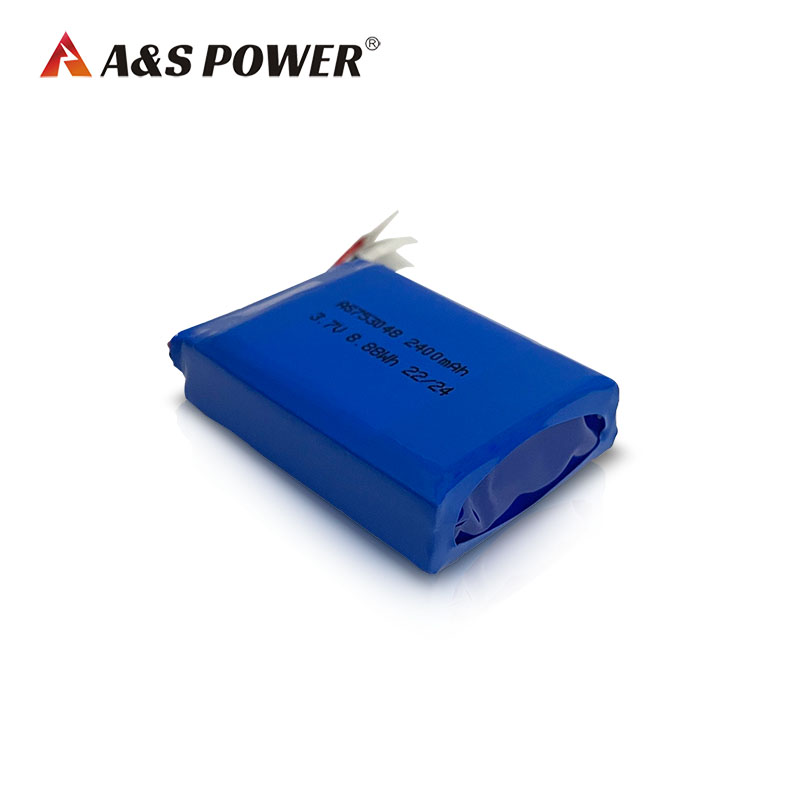

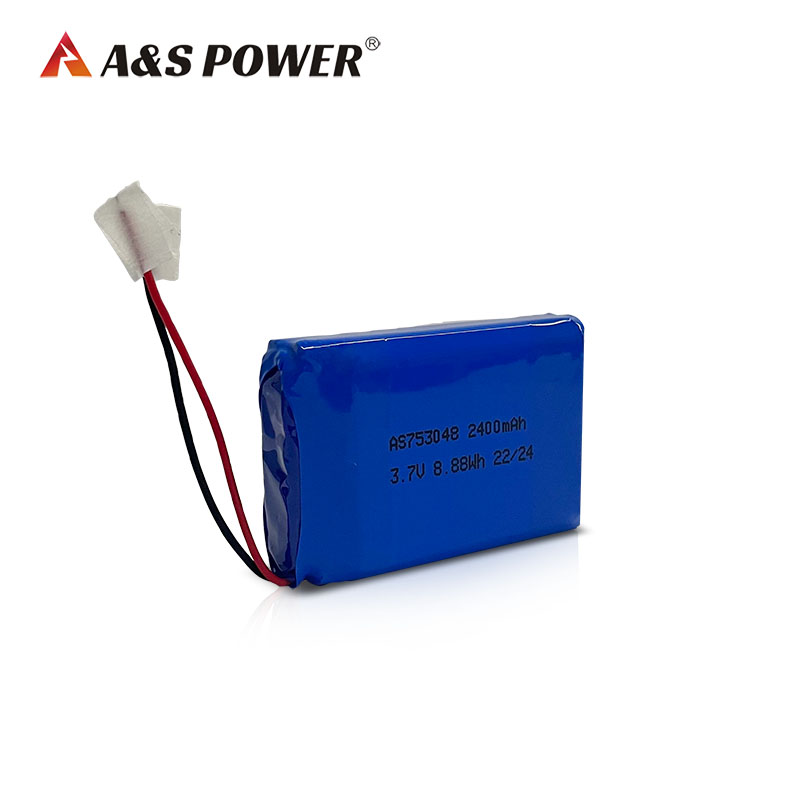

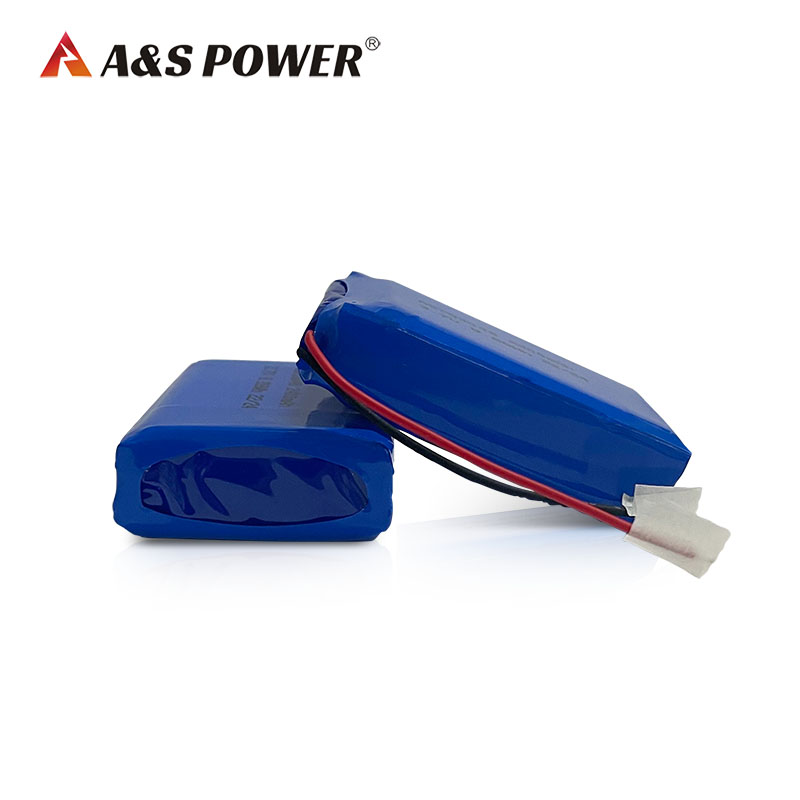

AS-753048 3.7V 2400mAh LiPo Battery

Product Specifications
- Model No. : AS-753048
- Voltage : 3.7V
- Capacity : 2400mAh
- Cycle life : over 500times
- Unit Size : 7.5*30.0*48.0 mm
- Weight : 47.0g
- Certification : IEC62133(CB)
- Application Field : Toys, Home Appliances, Consumer Electronics
- One of the key features of this battery is its lightweight design, which makes it easy to carry and ideal for portable devices. It is also available in customized sizes to fit your specific requirements. This flexibility in size ensures that it can be used in a wide range of applications, including medical devices, industrial equipment, and handheld devices.
- The excellent discharge performance of this battery ensures that it can deliver a consistent and stable power supply to your devices, even in high-drain situations. This makes it ideal for applications that require high levels of power, such as mobile phones and other handheld devices.
- In summary, this lithium polymer battery is a reliable and safe option for your B2B needs. Its IEC62133(CB) certifications ensure that it meets the highest safety standards. With a 500-cycle lifespan, lightweight design, and excellent discharge performance, it provides reliable power to meet the demands of your business. Its customizable size also makes it a versatile option for a wide range of applications.
Product Introduction
Item |
Rating |
Note |
||
3.1 Capacity |
Typical |
2400mAh |
Discharge:0.2CmA |
|
Minimum |
2300mAh |
|||
3.2 Nominal Voltage |
Average 3.7V |
|||
3.3 AC Impedance Resistance |
≤180mΩ |
|||
3.4 Discharge Cut-off Voltage |
3.00V |
|||
3.5 Charge Current |
480 mA |
Standard Charge |
||
3.6 Charge Voltage |
4.2V |
|||
3.7 Max Charge Voltage |
4.23V |
|||
3.8 Storage humidity |
< 85%RH |
Hygrometer |
||
3.9 Max Charge Current |
2400mA |
1.0 CmA |
||
3.10 Max Discharge Current |
2400mA |
1.0 CmA |
||
3.11 Weight |
Approx 47g |
|||
3.12 Operating Temperature |
Charge |
0~+45°C |
||
Discharge |
-20~+60°C |
|||
3.13 Storage Temperature |
less than 1 month |
-20~+45°C |
Recommended storage temperature: 20°C, at the shipment state |
|
less than 3 months |
-20~+35°C |
Applications
- Toys
- Home Appliances
- Consumer Electronics
Certification
- IEC62133(CB)
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
