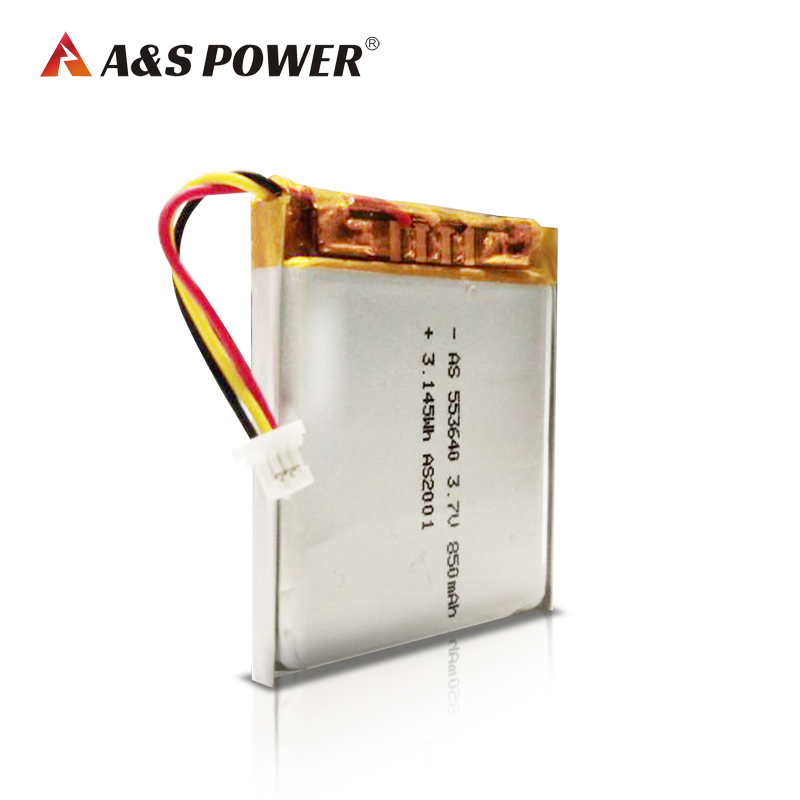

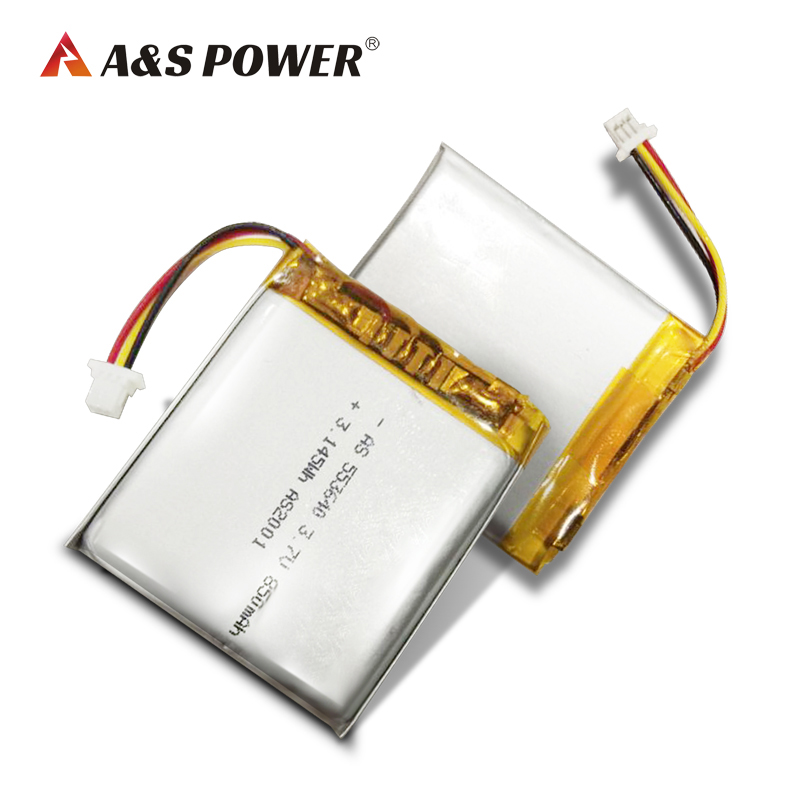

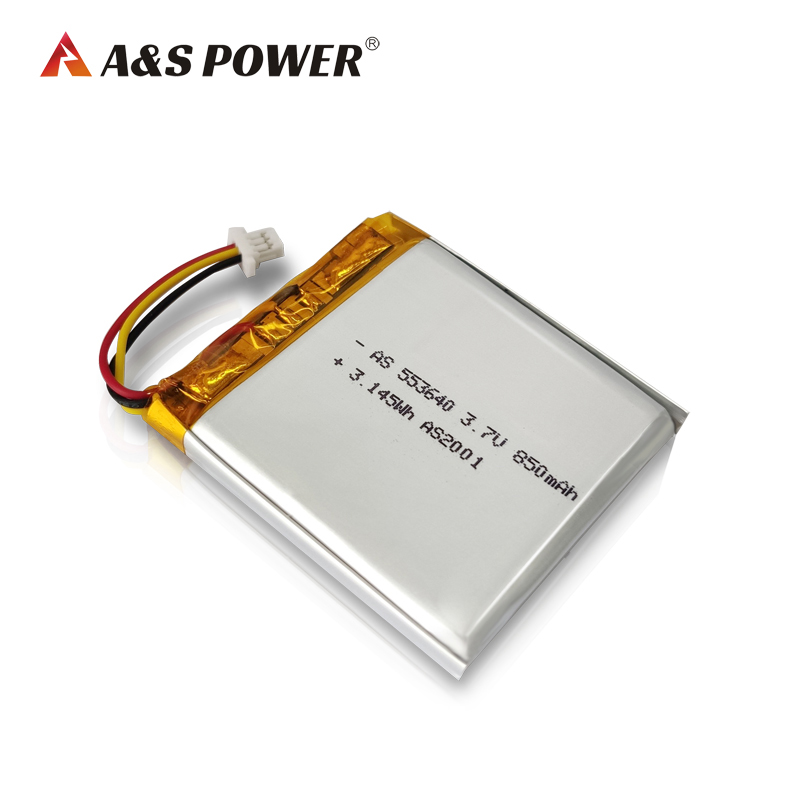

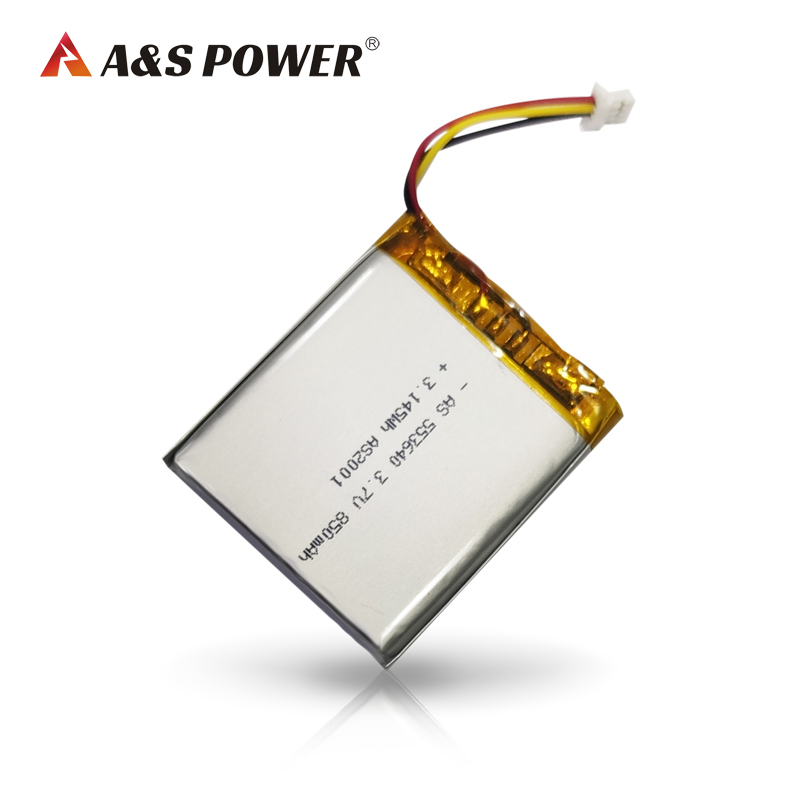

AS-553640 3.7V 850MAH LiPo Battery
Product Specifications
- Model No.: AS-553640
- Voltage: 3.7v
- Capacity: 850mAh
- Cycle life:over 500times
- Material:lithium cobalt oxides
- Unit Size :5.7*36.5*42.5mm
- Weight:17.0g
- Certification: UL2054 CB, KC,UN38.3
- Application Field: Livestock Monitor,Security Camera,Bluetooth Headset
Product Introduction
*This high-quality lithium polymer battery is designed to meet the demands of various B2B applications. With a capacity of 3.7v and 850mAh, it offers excellent discharge performance, ensuring uninterrupted power supply to your devices. It is UL, CB, KC, CE, and UN38.3 certified, making it a reliable and safe option for your business needs.
*The battery has been tested and certified to undergo 500 cycles, which means it can be recharged and used up to 500 times without losing its capacity. This ensures long-lasting performance and helps reduce the cost of replacing batteries frequently.
*One of the key features of this battery is its lightweight design, which makes it easy to carry and ideal for portable devices. It is also available in customized sizes to fit your specific requirements. This flexibility in size ensures that it can be used in a wide range of applications, including medical devices, industrial equipment, and handheld devices.
*The excellent discharge performance of this battery ensures that it can deliver a consistent and stable power supply to your devices, even in high-drain situations. This makes it ideal for applications that require high levels of power, such as mobile phones and other handheld devices.
*In summary, this lithium polymer battery is a reliable and safe option for your B2B needs. Its UL, CB, KC, CE, and UN38.3 certifications ensure that it meets the highest safety standards. With a 500-cycle lifespan, lightweight design, and excellent discharge performance, it provides reliable power to meet the demands of your business. Its customizable size also makes it a versatile option for a wide range of applications.
| Item | Rating | Note | ||
| 3.1 Capacity | Typical | 850mAh | From 4.2V to 3.0V by discharge current 0.2C. | |
| Minimum | 830mAh | |||
| 3.2 Nominal Voltage | 3.7V | |||
| 3.3 AC Impedance Resistance | ≤600mΩ | |||
| 3.4 Discharge Cut-off Voltage | 3.00V | |||
| 3.5 Charge Current | 166 mA | Standard Charge | ||
| 3.6 Charge voltage | 4.2V | |||
| 3.7 Max. Charge Voltage | 4.23V | |||
| 3.8 Charge Time | Approx 6 h | Standard Charge | ||
| 3.9 Fast Charge current | 830mA | 10~45℃ | ||
| 3.10 Fast Discharge Current | 830mA | 1.0CmA | ||
| 3.11 Weight | Approx 16.0g | |||
| 3.12 Shipping Voltage | 3.85-3.95V | |||
| 3.13 Voltage decay rate | ≈ 1.2mV/Day | |||
| 3.14 Battery energy density | 397Wh/L | 850*3700 By Typical
5.5*36*40 Dimension |
||
|
3.15 Operating Temperature |
Charge | 0~+45℃ | ||
| Discharge | -20~+60℃ | |||
|
3.16 Storage Temperature |
less than 1 month | -20~+45℃ | Recommended storage
temperature: 25±2℃,at the shipment state |
|
| less than 3 months | -20~+35℃ | |||
| less than 6months | -20~+30℃ | |||
Applications
*Livestock Monitor
*Security Camera
*Bluetooth Headset
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
