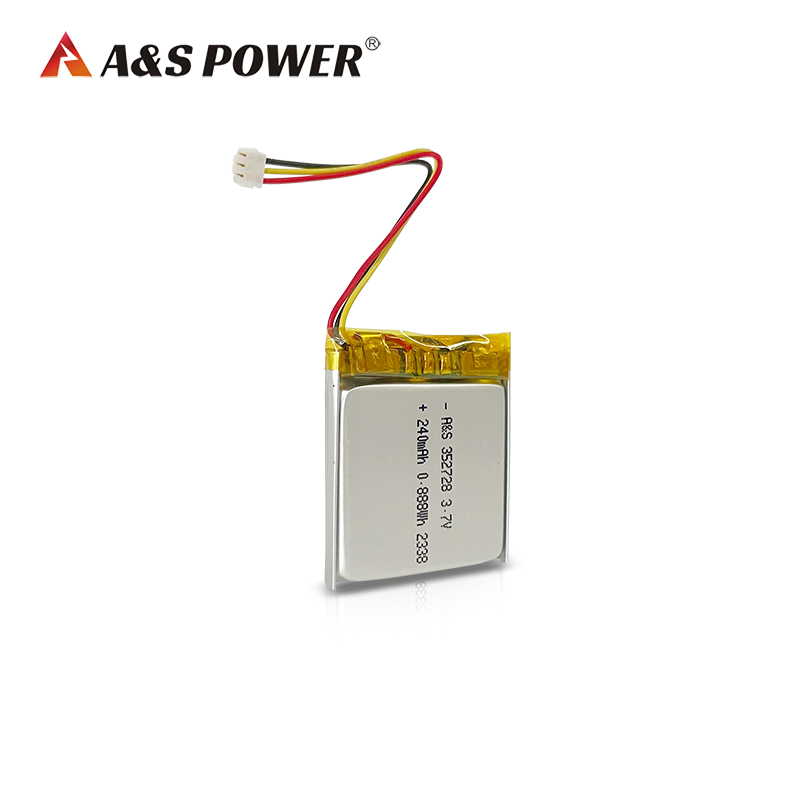

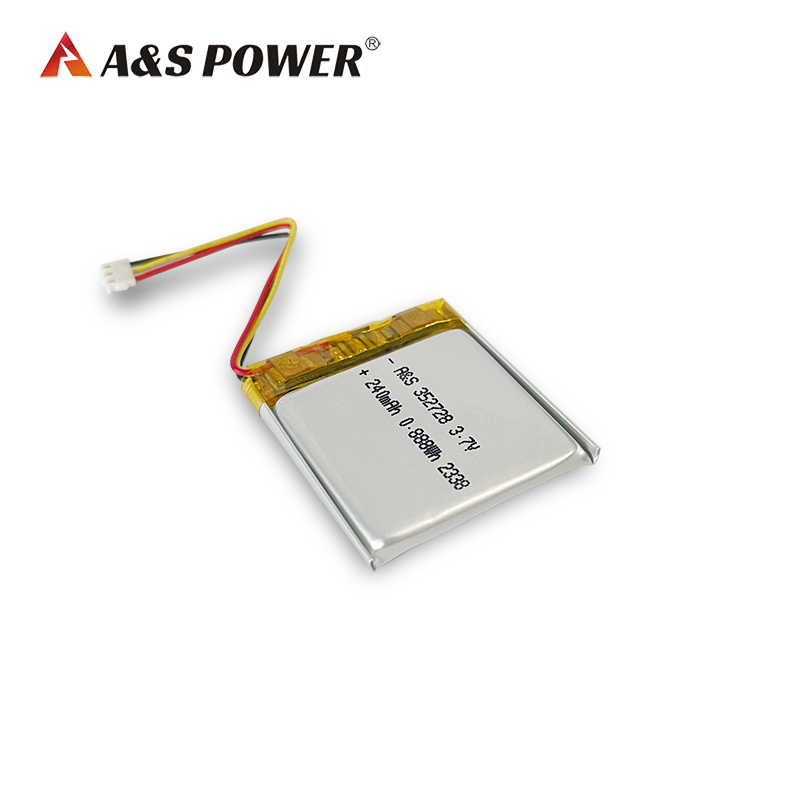

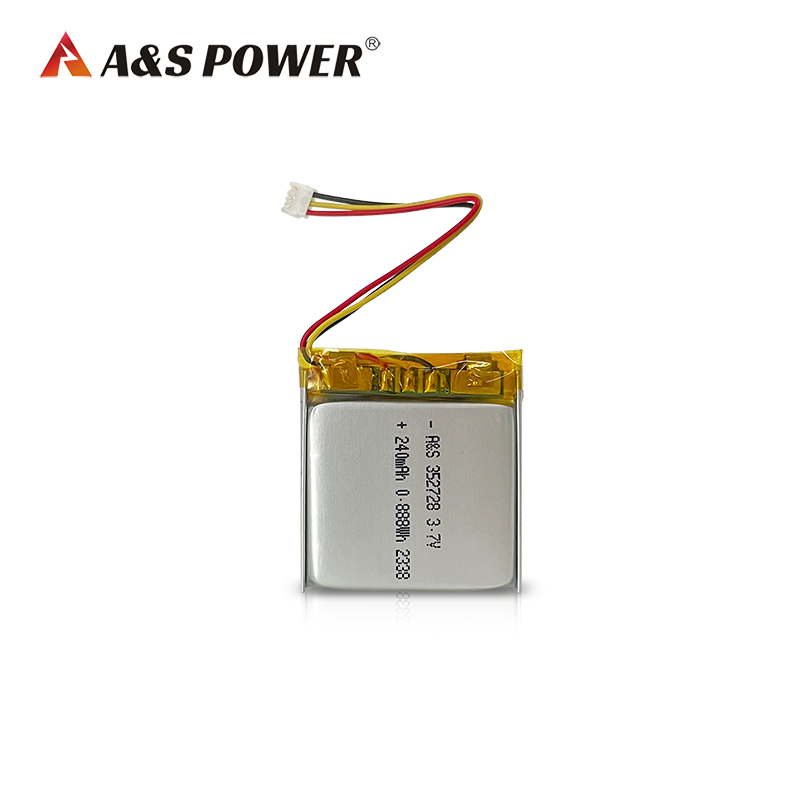

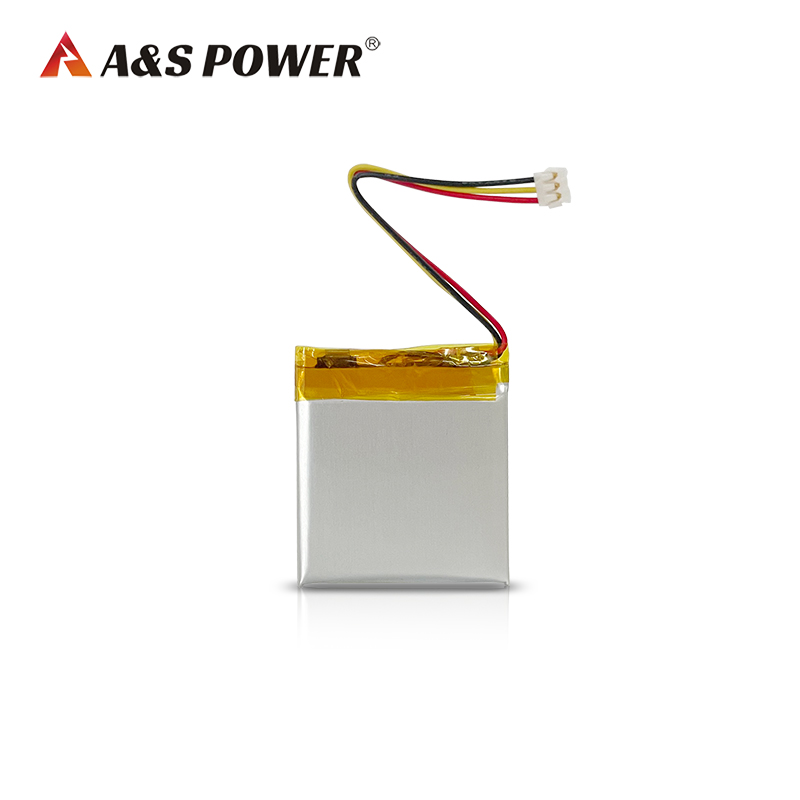

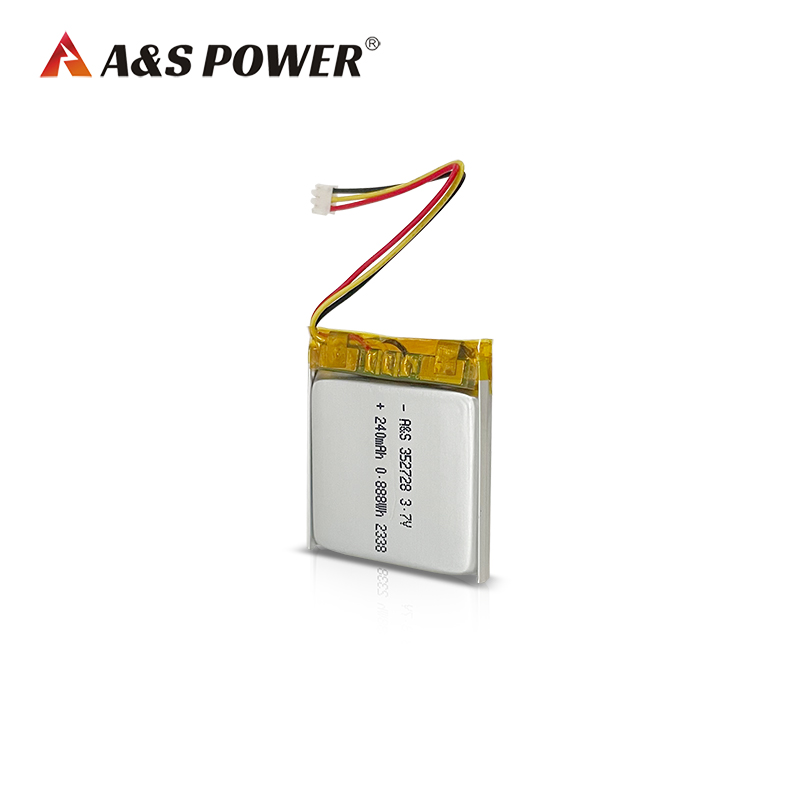

AS-352728 3.7V 240mAh LiPo Battery

Product Specifications
- Model No. : AS-352728
- Voltage : 3.7V
- Capacity : 240mAh
- Cycle life : over 500times
- Unit Size : 3.4*26.5*28.0 mm
- Weight : 4.5g
- Certification : IEC62133, CE, UN38.3
- Application Field : Livestock Monitor, Security Camera, Bluetooth Headset
- One of the key features of this battery is its lightweight design, which makes it easy to carry and ideal for portable devices. It is also available in customized sizes to fit your specific requirements. This flexibility in size ensures that it can be used in a wide range of applications, including medical devices, industrial equipment, and handheld devices.
- The excellent discharge performance of this battery ensures that it can deliver a consistent and stable power supply to your devices, even in high-drain situations. This makes it ideal for applications that require high levels of power, such as mobile phones and other handheld devices.
- In summary, this lithium polymer battery is a reliable and safe option for your B2B needs. Its IEC62133, CE and UN38.3 certifications ensure that it meets the highest safety standards. With a 500-cycle lifespan, lightweight design, and excellent discharge performance, it provides reliable power to meet the demands of your business. Its customizable size also makes it a versatile option for a wide range of applications.
Product Introduction
Item |
Rating |
Note |
||
3.1 Capacity |
Typical |
240mAh |
Temperature:25±2℃ Charge:0.2C Discharge:0.2C |
|
Minimum |
200mAh |
|||
3.2 Nominal Voltage |
Average 3.7V |
|||
3.3 AC Impedance Resistance |
≤200mΩ |
Cell |
||
≤300mΩ |
Battery Pack |
|||
3.4 Discharge Cut-off Voltage |
3.00V |
|||
3.5 Charge Current |
48mA |
Standard Charge |
||
3.6 Charge Voltage |
4.2V |
Cut-off current≤2.4mA |
||
3.7 Charge Time |
Approx:6 h |
Standard Charge |
||
3.8 Storage humidity |
< 85%RH |
|||
3.9 Max Charge Continuous |
240mA |
10~45℃ |
||
3.10 Discharge Continuous |
120mA |
|||
3.11 Max Discharge Continuous |
240mA |
10~45℃ |
||
3.12 Weight |
Approx 4.5 g |
|||
3.13 Shipping Voltage |
3.85~3.95V |
|||
3.14 Operating Temperature |
Charge |
0~+10℃ |
Max Charge:48mAh |
|
10~+45℃ |
Max Charge:240mAh |
|||
Discharge |
-20~+60℃ |
|||
3.15 Storage Temperature |
less than 1 month |
-10~+45℃ |
Recommended storage temperature: 25±2℃, at the shipment state |
|
less than 3 months |
-10~+35℃ |
|||
less than 6months |
-10~+30℃ |
Certification
- IEC62133
- CE
- UN38.3
Applications
- Livestock Monitor
- Security Camera
- Bluetooth Headset
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
