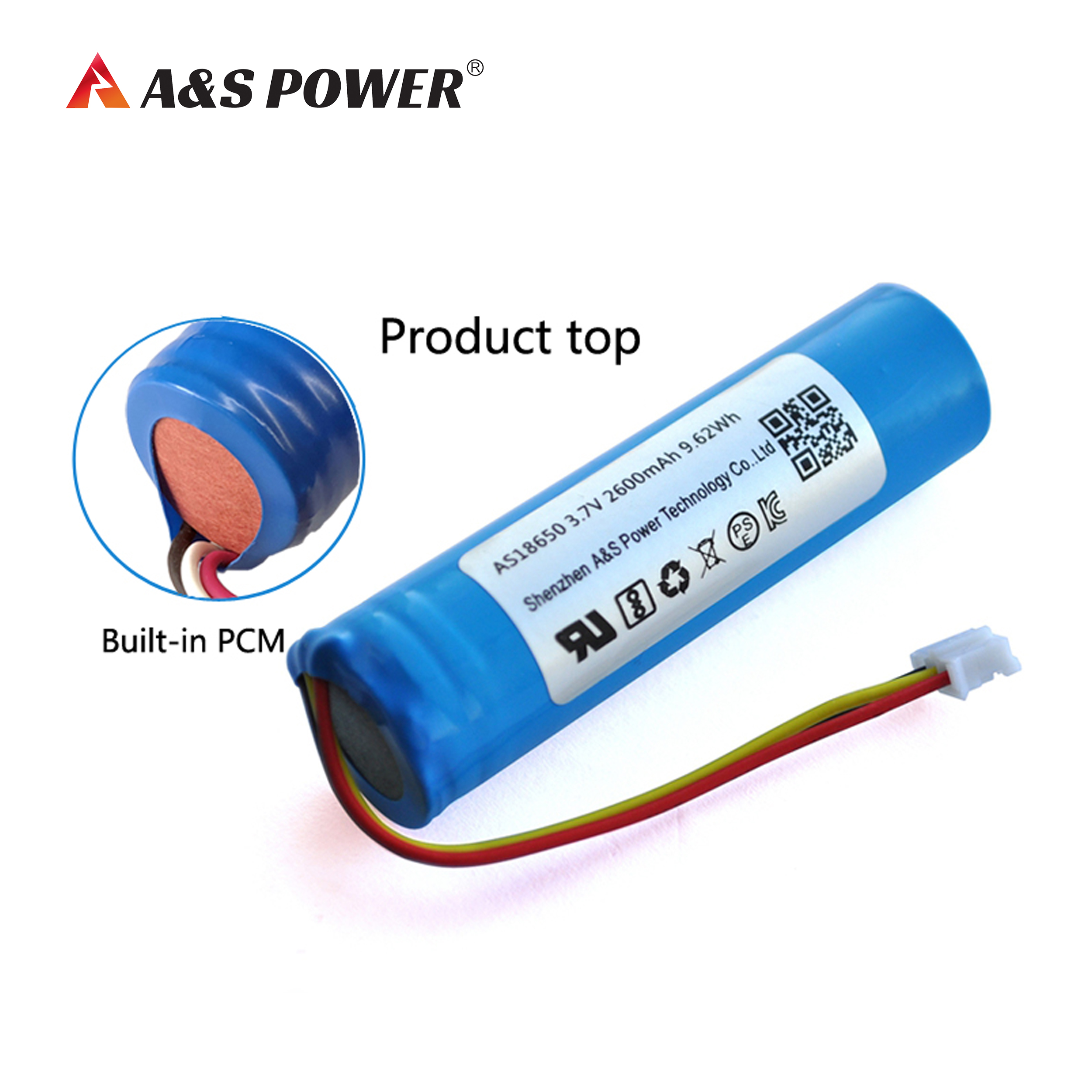

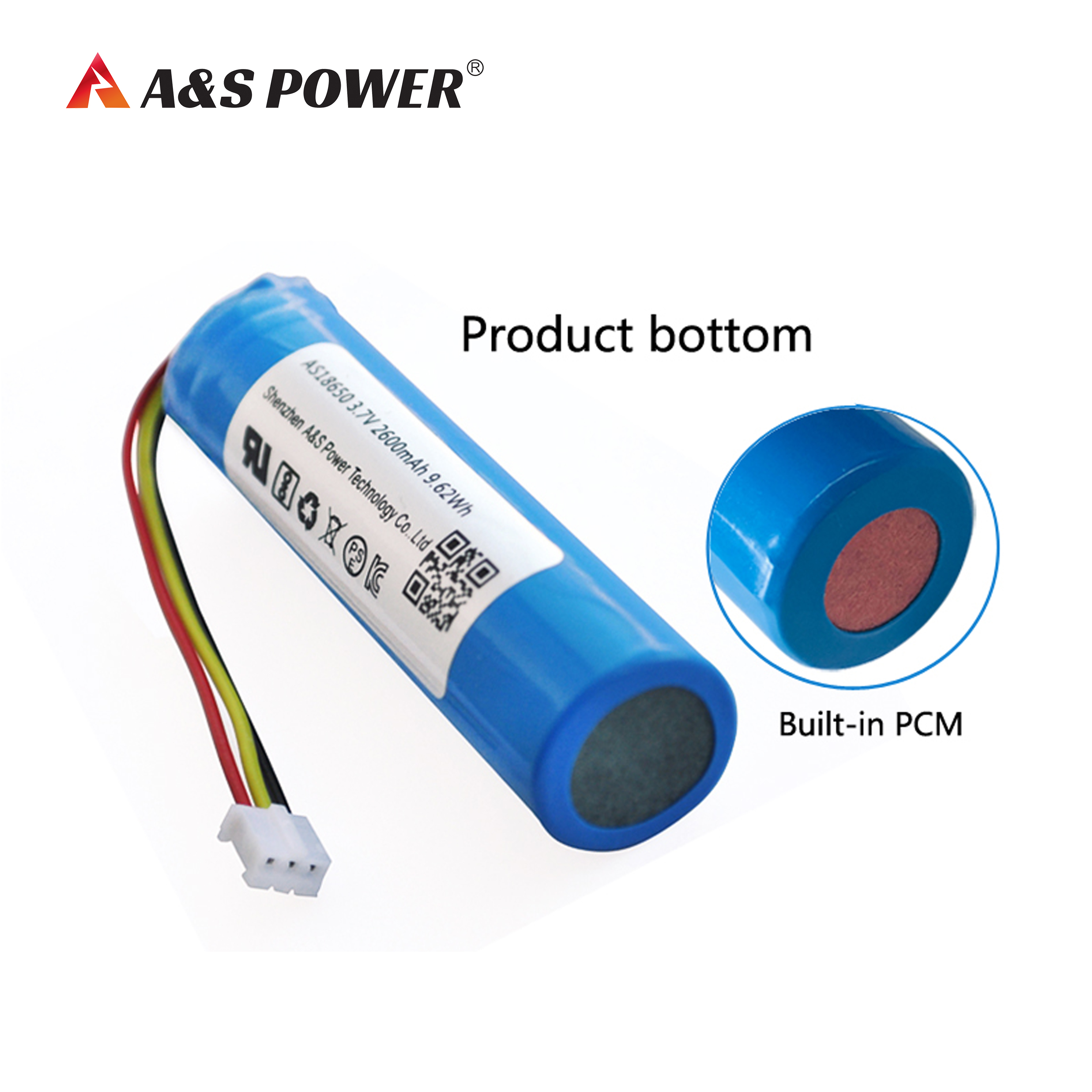

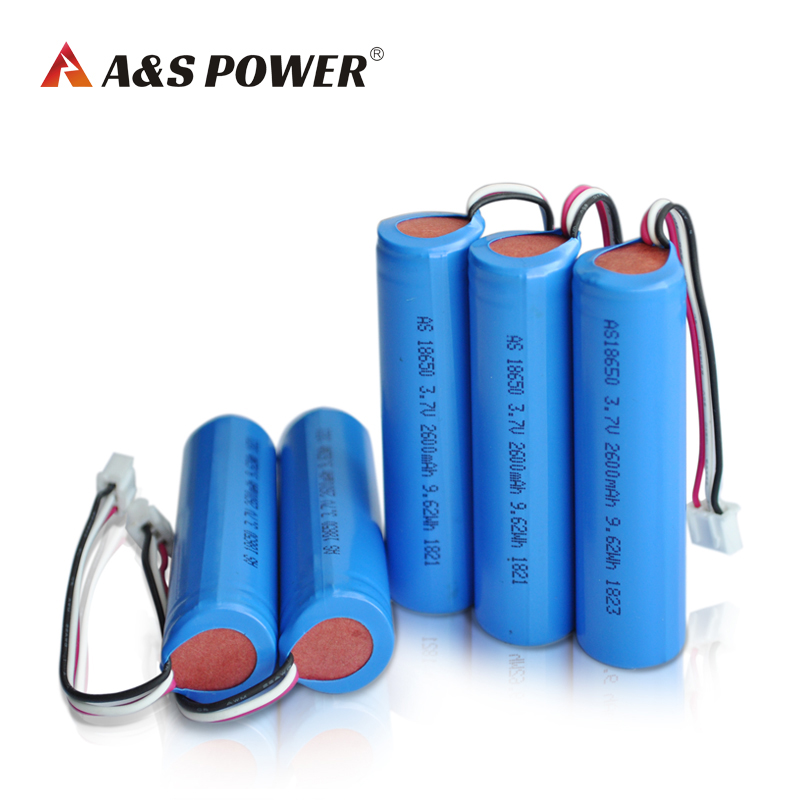

AS-18650 3.7V 2600mAh Battery
With a cycle life of up to 500 times, this battery is designed to last.
Product Specifications
- Model No.: AS-18650
- Battery Type:Lithium Ion Battery
- Weight:50g

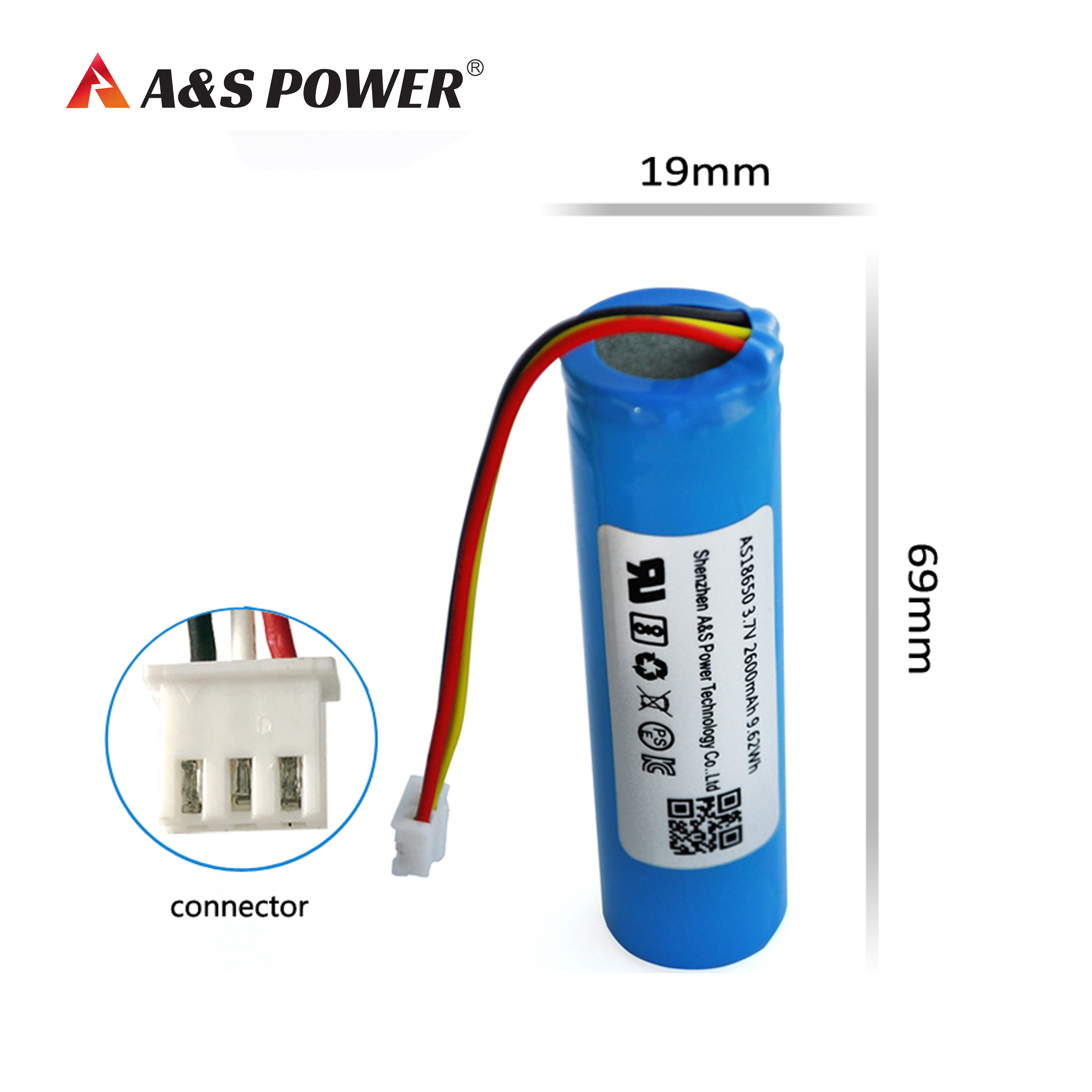

- Unit size: 18mmx65mm
- Cycle life:over 500times
- Certifications: UL2054/CB/KC/PSE/BIS/UN38.3/MSDS/CE
Product Introduction
| Item | Rating | Note | ||
| 3.1 Capacity | Typical | 2600mAh | Discharge:0.2CmA cut off Voltage:3.0V for cell |
|
| Minimum | 2500mAh | |||
| 3.2 Nominal Voltage | Average 3.7V | Discharge:0.2CmA cut off Voltage:3.0V for cell |
||
| 3.3 AC Impedance Resistance | ≤180mΩ | |||
| 3.4 Discharge Cut-off Voltage | 3.00V | |||
| 3.5 Charge Current | 520mA | Standard Charge | ||
| 3.6 Charge Voltage | 4.2V | |||
| 3.7 Max. Charge Voltage | 4.23V | |||
| 3.8 Charge Time | Approx 2.5h | Charge: 1.0CmA | ||
| 3.9 Max. Charge Current | 2500mA | 1.0CmA | ||
| 3.10 Max. Discharge Current | 2500mA | 2.0CmA | ||
| 3.11 Weight | Approx 50.0g | cell | ||
| 3.12 Operating Temperature | Charge | 0~+45°C | ||
| Discharge | -20~+60°C | |||
| 3.13 Storage Temperature | less than 1 month | -20~+45°C | Recommended storage temperature: 20°C,at the shipment stte |
|
| less than 3 months | -20~+35°C | |||
Applications
*Torch Light
*LED Light
*Power Tool
*Hand Fan
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
