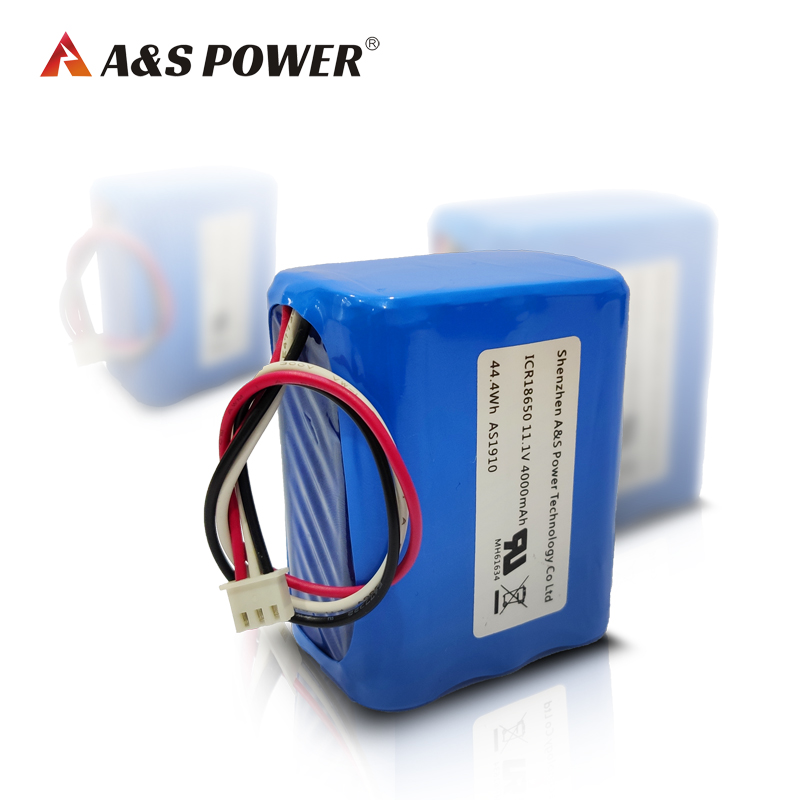

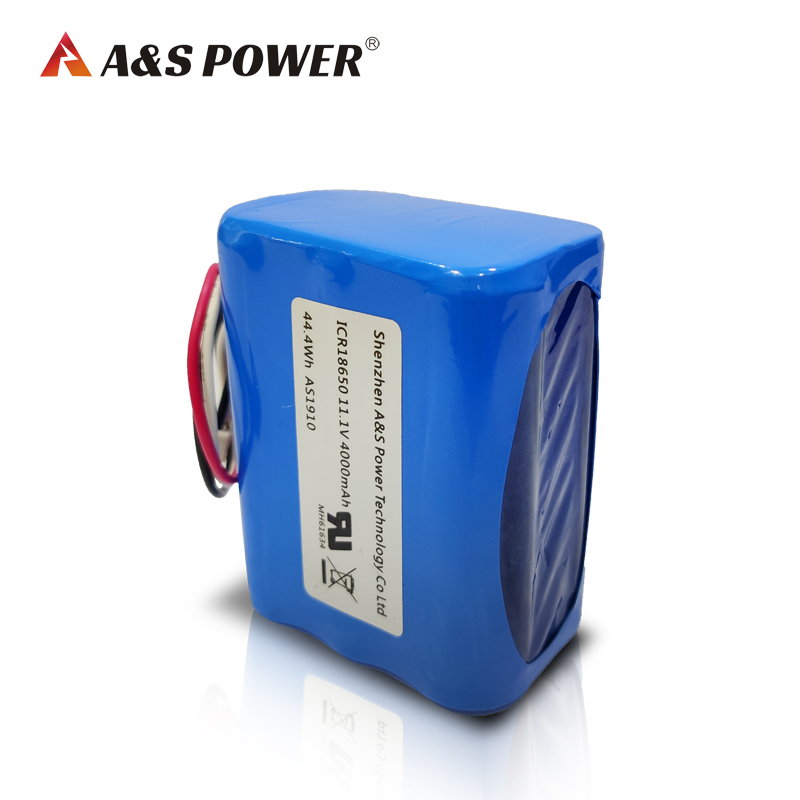

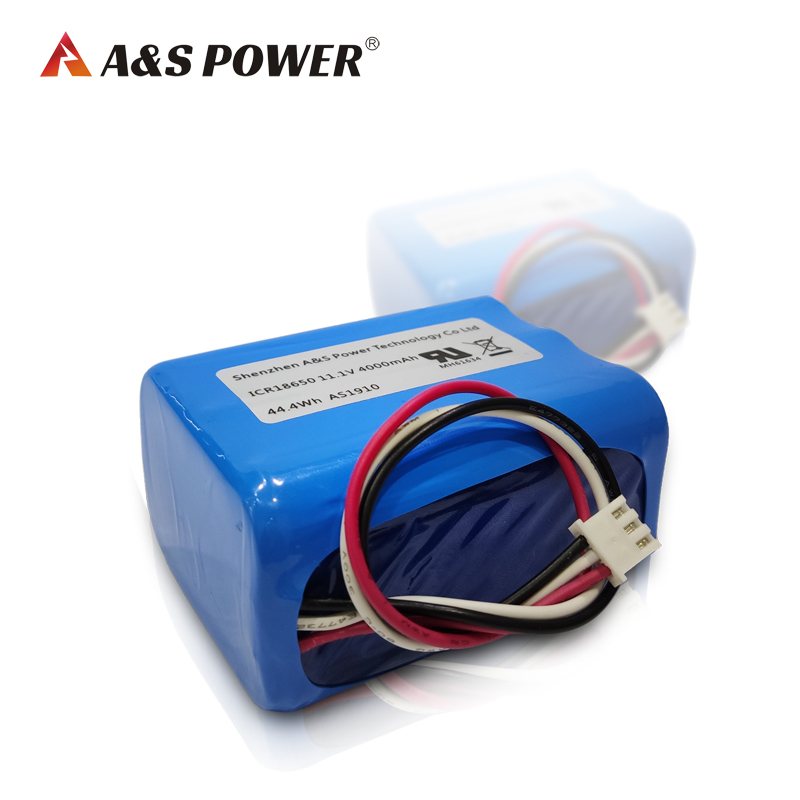

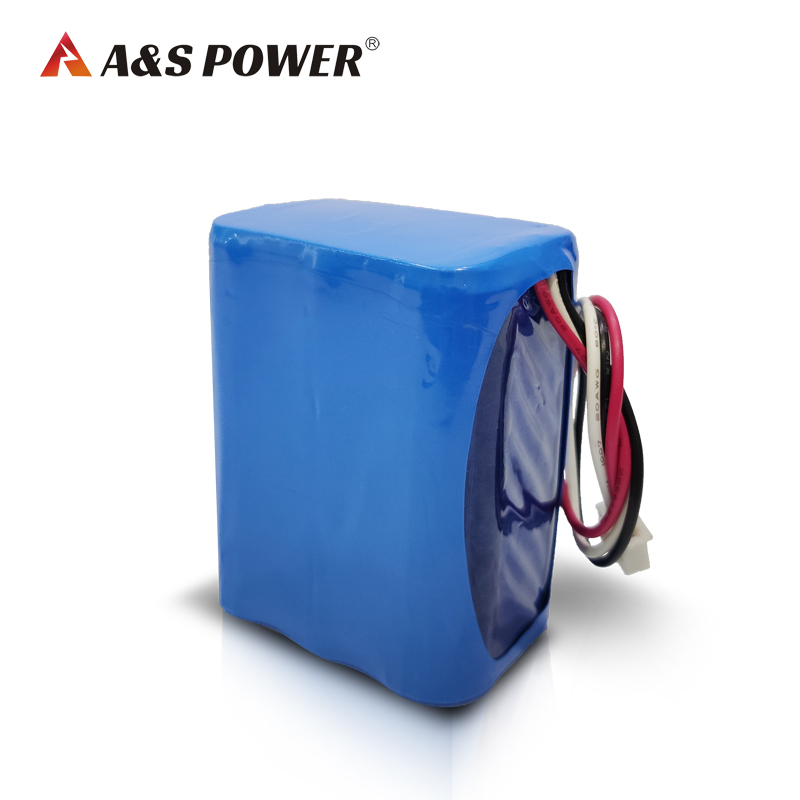

18650 3S2P 11.1V 4Ah Li-ion Battery Packs
Product Specifications
- Model No.: AS-18650 3S2P
- Battery Type:Lithium Ion Battery
- Voltage : 11.1v
- Capacity: 4000mAh
- UnitSize :60*40*72mm
- Weight:300G
- Certification: UL2054
- Application Field: Solar Street Light/bluetooth speaker
Product Introduction
| Item | Rating | Note | |
| 3.1 Capacity | Typical | 4000mAh | Discharge:0.2CmA |
| Minimum | 3850mAh | ||
| 3.2 Nominal Voltage | Average 11.1V | ||
| 3.3 Discharge Cut-off Voltage | 9.0V | ||
| 3.4 Charge Current | 800mA | Standard Charge | |
| 3.5 Charge Voltage | 12.6V | ||
| 3.6 Charge Time | Approx6h | ||
| 3.7 Max. Charge Current | 4000mA | The battery with PCB | |
| 3.8 Max Charge Voltage | 12.6V | ||
| 3.9. Max discharge current | 12A | The battery with PCB | |
| 3.10 Weight | Approx 300g | ||
| 3.11 Operating Temperature | Charge | 0~+45ºC | |
| Discharge | -20~60ºC | ||
| 3.12 Storage Temperature | less than1 month | -20~45ºC | Recommended storage temperature: 20ºC,at the shipment state |
BATTERY CELL
We current main produce 18650 /26650lithium ion cell and lithium iron phosphatecell, for lithium ion cell, they cycle life around300 times, and for lifepo4 cell, the cycle lifearound 1500 times
BATTERY WITH PCM
The PCM main IC we used Japan Seiko lC, it hasOver-charge, over-discharge, over-current andshort-circuit Protection function. The PCM alsocan customized to your request, such as add PTC.NTC, and with cell balance function.
FINISHED BATTERY WITH PCM
Finished battery usually it is with PCM.Wire,and connector, it used for Bluetooth speaker,led light, solar street light and other digitaldevice.
Applications
*Solar Street Light
*bluetooth speaker
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
