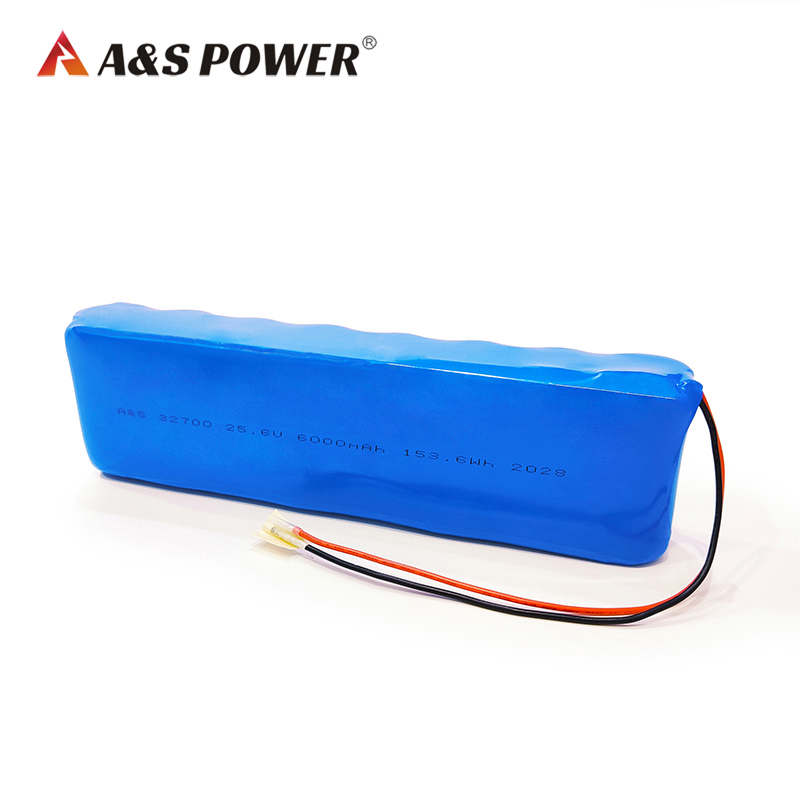

32700 8S1P 25.6V 6Ah LiFePO4 Battery Pack
Cycle life:over 2000times.
Product Specifications
- Model No.: AS-32700
- Battery Type: Lifepo4 Battery
- Voltage: 25.6V
- Capacity: 6Ah
- Weight: 1.0KG
- Cycle life:over 2000times
- Application: Power Tools, Home Appliances, BOATS, Golf Carts
Product Introduction
|
Item
|
Rating
|
Note
|
|
|
Capacity
|
Typical
|
6000mAh
|
Charge: 0.2C@25±2℃
Discharge: 0.2C@25±2℃ |
|
Minimum
|
5900mAh
|
||
|
Nominal Voltage
|
Average 25.6V
|
||
|
AC Impedance Resistance
|
≤40mΩ
|
Cell
|
|
|
≤220mΩ
|
Battery Pack
|
||
|
Discharge Cut-off Voltage
|
20.0V
|
||
|
Charge Current
|
1200 mA
|
||
|
Charge voltage
|
29.2V
|
||
|
Charge Time
|
Approx 6 H
|
||
|
Storage Humidity
|
< 75%RH
|
||
|
Fast Charge Current
|
6000 mA
|
10~45℃
|
|
|
Discharge Current
|
5000 mA
|
||
|
Peak Current
|
24.0 A
|
||
|
Weight
|
Approx 1kg
|
||
|
Operating Temperature
|
Charge
|
0~+45ºC
|
|
|
Discharge
|
–20~+60℃
|
||
|
Storage Temperature
|
less than1 month
|
-20~+45℃
|
Recommended storage
temperature: 20ºC, at the shipment state
|
|
less than 3 months
|
-20~+45℃
|
||
Product Advantage
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 2000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
Applications
*Power Tools
*Home Appliances
*BOATS
*Golf Carts
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
