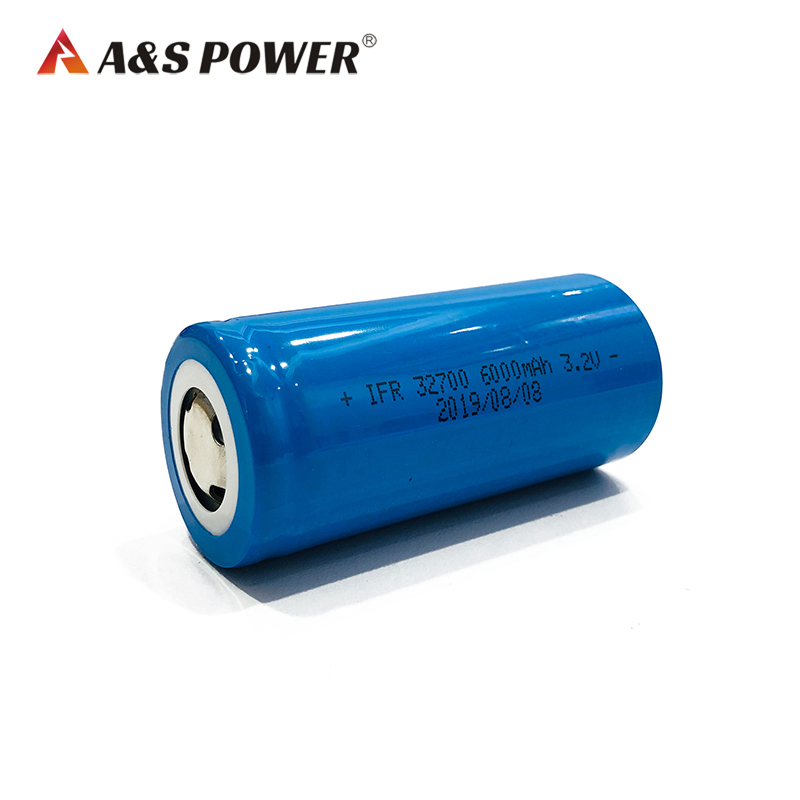

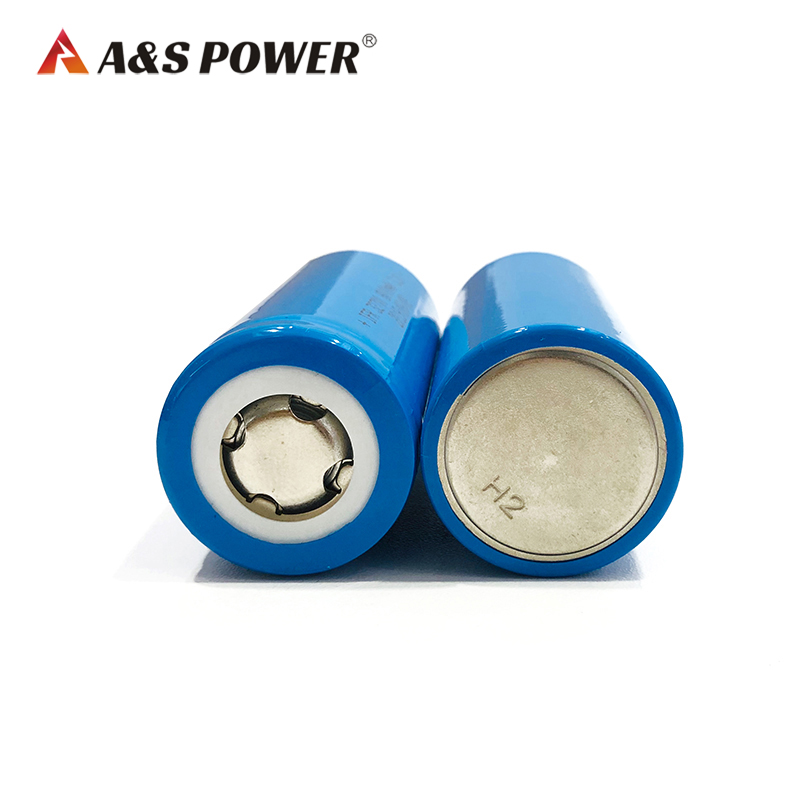

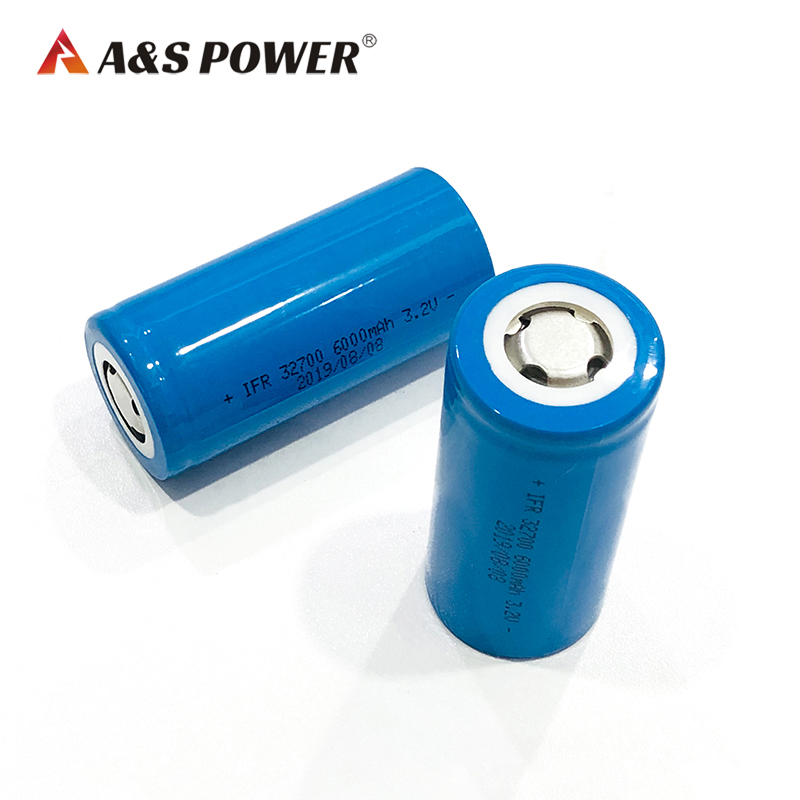

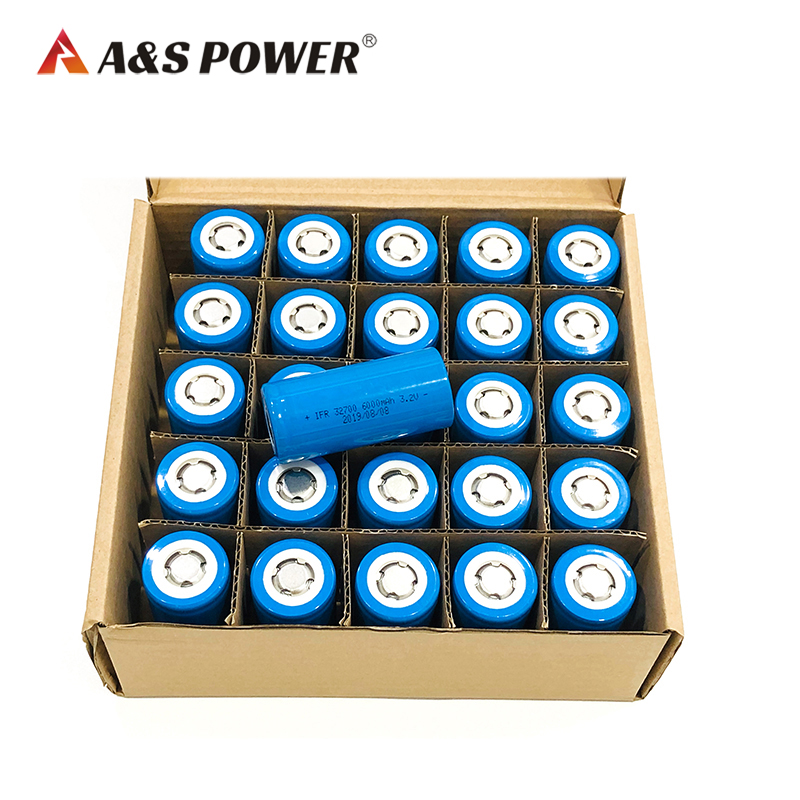

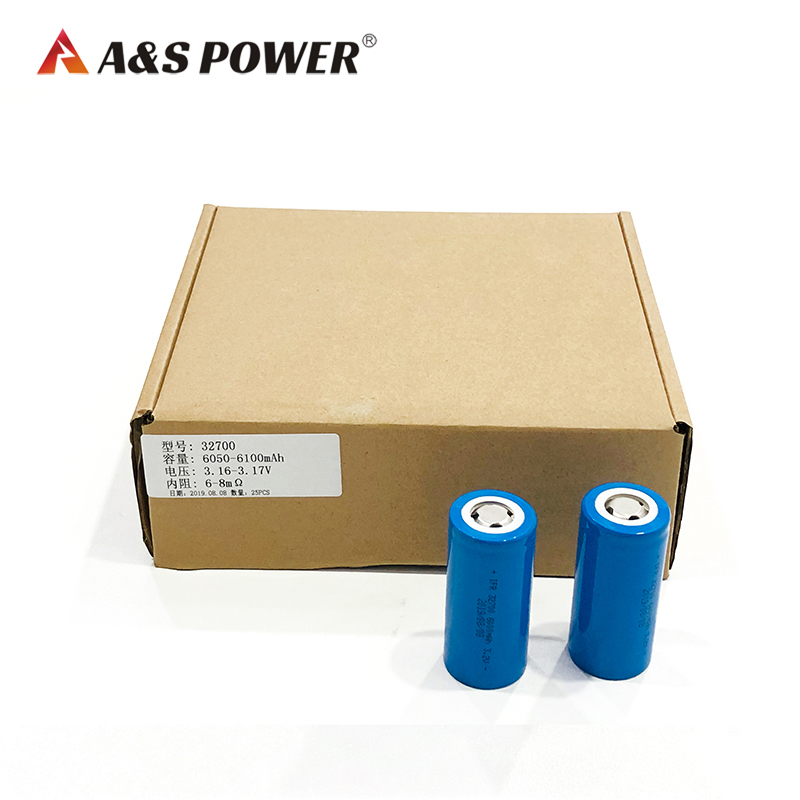

32700 3.2V 6Ah Lifepo4 Battery Cell
Product Specifications
- Model No.: AS-IFR32700
- Battery Type: Lifepo4 Battery
- Voltage: 3.2V
- Capacity: 6Ah
- Weight: 130G
- Unit size: 32*70mm
- Cycle life:over 2000tims
- Application: Solar Street Light /Storage/EV
Product Introduction
| Item | Rating | Note | ||
|
3.1 Capacity |
Typical | 6.1Ah | Discharge:0.2CmA | |
| Minimum |
6.05Ah |
|||
|
3.2 Nominal Voltage |
Average 3.2V |
|||
|
3.3 Discharge Cut-off Voltage |
2.5V |
|||
|
3.4 Charge Current |
1.22A |
Standard Charge |
||
|
3.5 Charge Voltage |
3.65V |
|||
|
3.6 Charge Time |
Approx 6h |
|||
|
3.7 Max. Charge Current |
6.1A |
|||
|
3.8 Continuous discharge current |
3.05A |
|||
|
3.9 Max. discharge current |
6.1A |
|||
|
3.10 Weight |
Approx 130g |
|||
|
3.11 Operating Temperature |
Charge |
0~45℃ |
||
|
Discharge |
-20~60℃ |
|||
|
3.12 Storage Temperature |
less than 1 month |
-20~45℃ |
Recommended storage temperature: 20℃,at the shipment state |
|
Product Advantage
Applications
*Solar Street Light
*Storage
*EV
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
