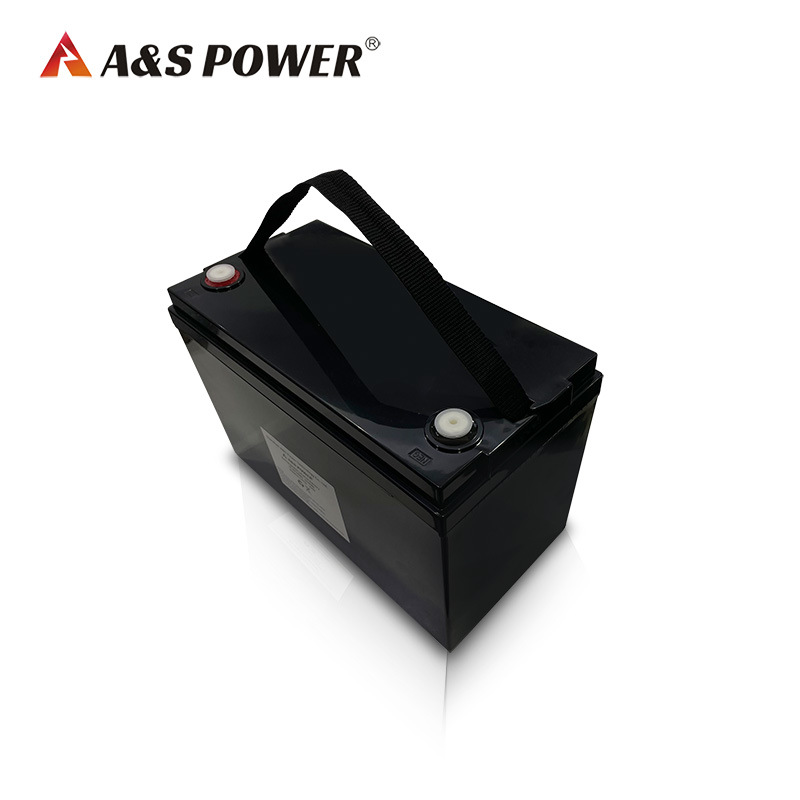

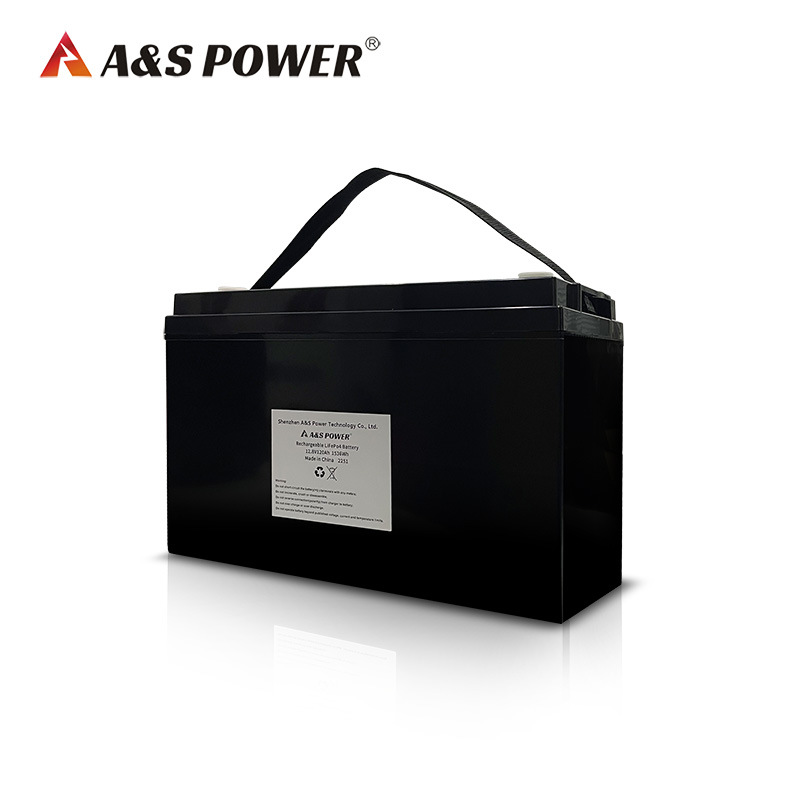

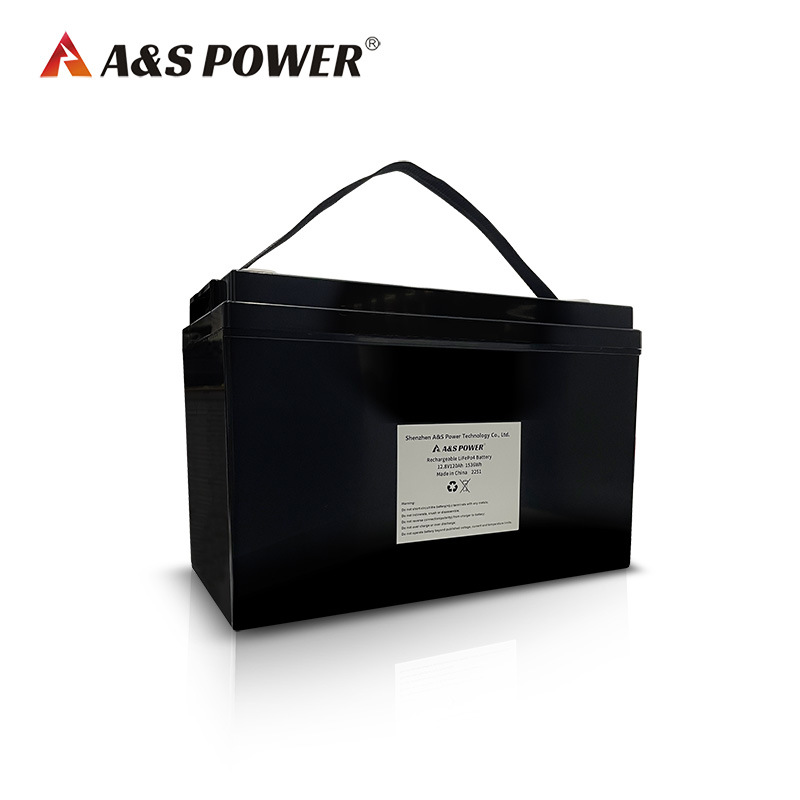

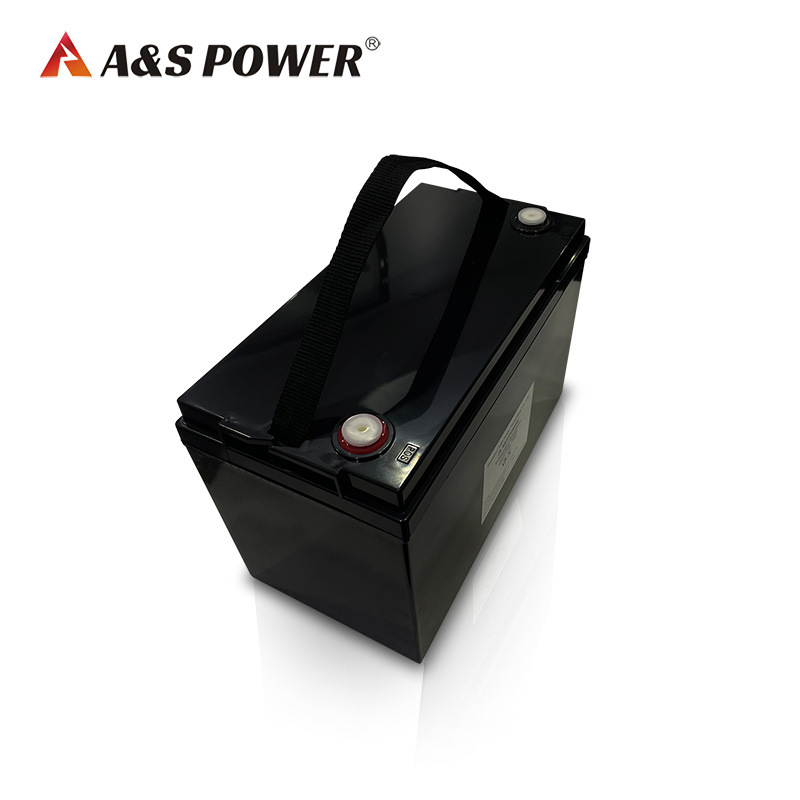

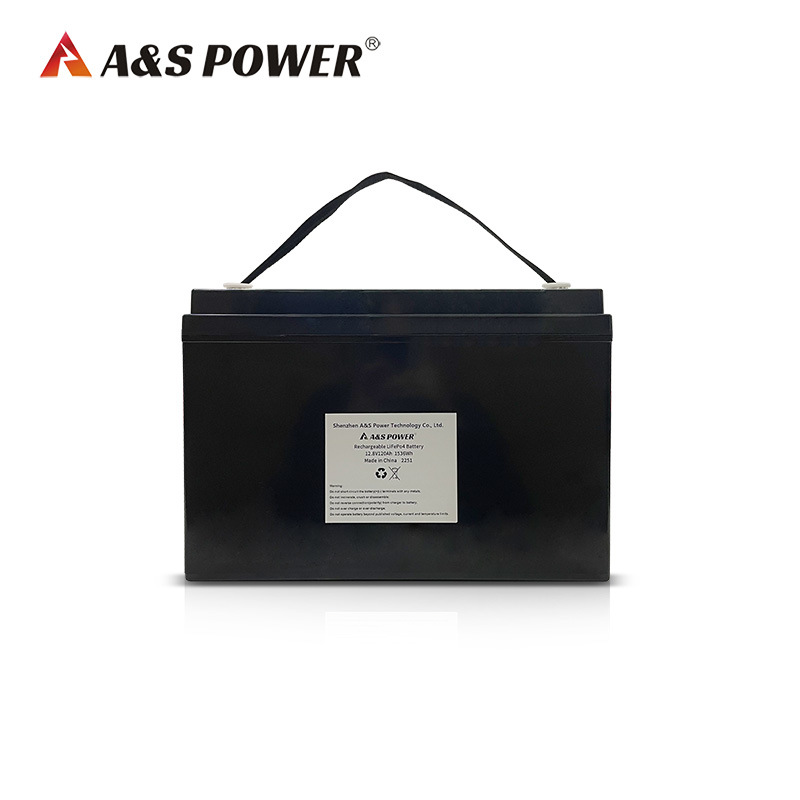

32700 12.8V 120Ah LiFePO4 Battery Pack
Product Specifications
- Model No.: AS-32700
- Battery Type: Lifepo4 Battery
- Voltage: 12.8V
- Capacity: 120.0Ah
- Weight: 16.2KG
- Unit size: 483.0*170.0*240.0 mm
- Cycle life:over 2000times
- Application: Solar Energy Storage, Power Tools
Product Introduction
|
Electrical Characteristics |
Nominal Voltage |
12.8v |
|
Nominal Capacity |
120Ah @ 0.2C |
|
|
Energy |
1536Wh |
|
|
Internal resistance |
≤40mΩ |
|
|
Cycle Life |
>2000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70% capacity |
|
|
Months Self discharge |
≤3.5% per month at 25ºC |
|
|
Standard Charge |
Charge voltage |
14.6±0.2V |
|
Charge Mode( CC/CV) |
At 0ºC~45ºC temperature, charged to 14.6v at constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6v until the current was not more than 0.02C5A |
|
|
Charge current |
24A |
|
|
Max.Charge current |
60A |
|
|
Standard Discharge |
Discharge current |
24A |
|
Max.continuous current |
100A |
|
|
Max. Pulse current |
200A (<3S) |
|
|
Discharge cut-off voltage |
10.0V |
|
|
Environmental |
Charge Temperature |
0ºC to 45 ºC |
|
Discharge Temperature |
-20ºC to 60 ºC |
|
|
Storage Temperature |
0ºC to 45 ºC |
|
|
Water Dust Resistance |
IP55 |
|
|
Mechanical |
Cell & Method |
IFR32700, 4S20P |
|
Plastic Case |
ABS |
|
|
Dimension (L*W*H) |
483*170 *240mm |
|
|
Weight |
Approx. 16.2KG |
|
|
Terminal |
M8 |
Product Advantage
Applications
*Solar Energy Storage
*Power Tools
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
