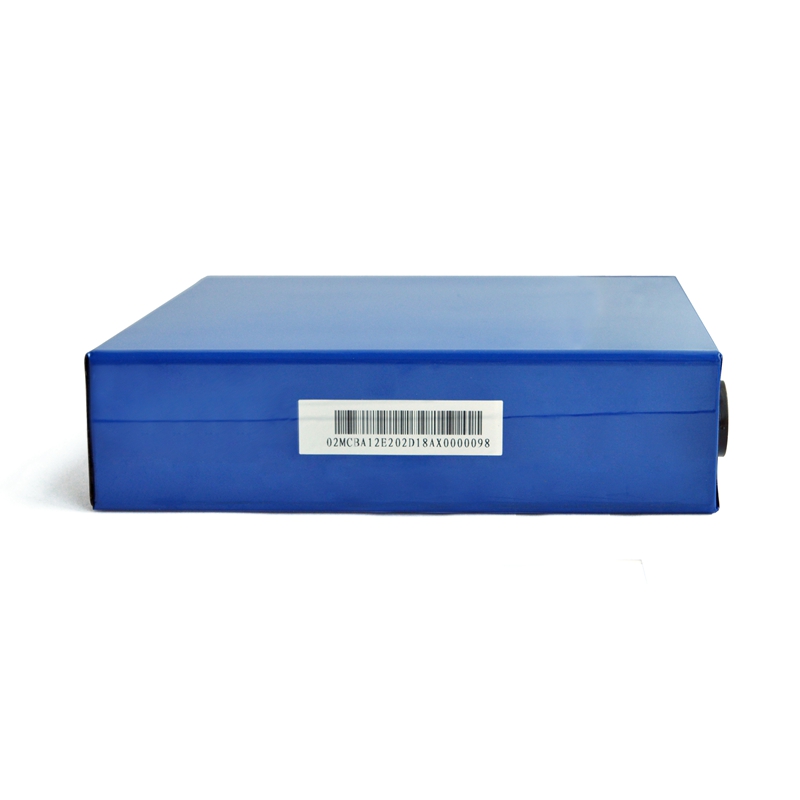

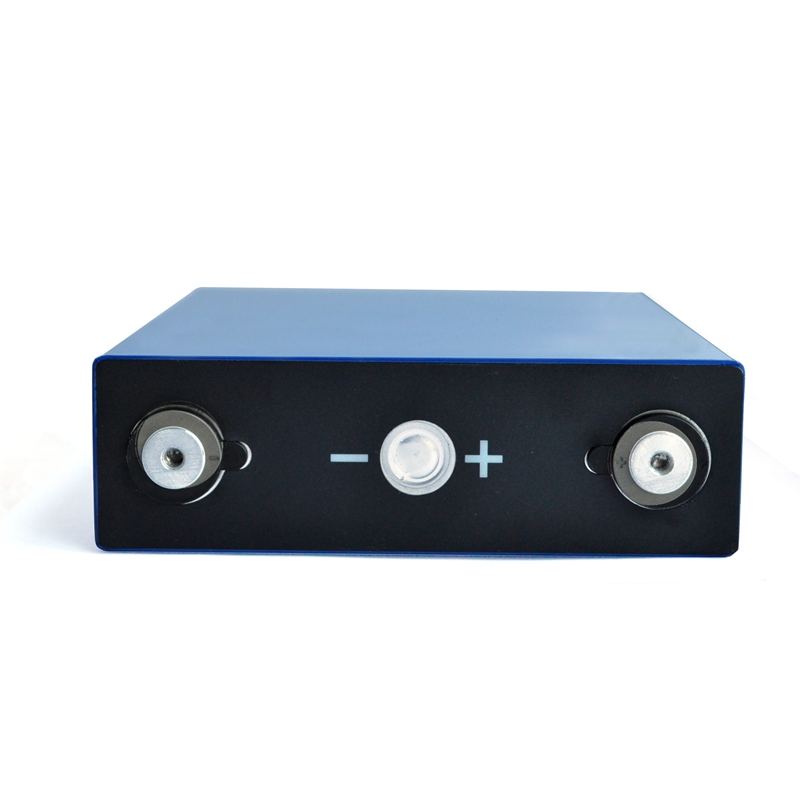

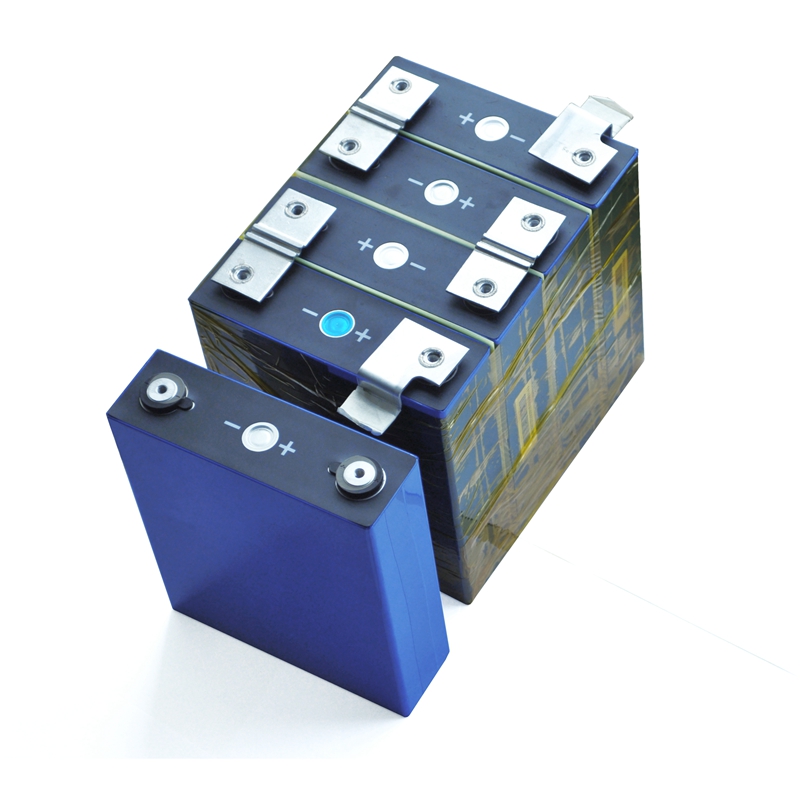

3.2V 200Ah Lifepo4 Battery
Product Specifications
- Model No.: AS71182279
- Battery Type: Lifepo4 Battery
- Voltage: 3.2V
- Capacity: 200Ah
- Weight: 5.8KG
- Unit size: 71*182*279mm
- Cycle life:over 2000 times
- Application: Solar Storage System
Product Introduction
| Item | Rating | Note | ||
|
3.1 Capacity |
Typical | 200Ah | Discharge:0.2CmA | |
| Minimum |
195Ah |
|||
|
3.2 Nominal voltage |
Average 3.2V |
|||
| 3.3 AC impedance resistance | ≤1mΩ | |||
|
3.4 Discharge cut-off voltage |
2.5V |
|||
|
3.5 Charge current |
60A |
Standard Charge |
||
|
3.6 Charge voltage |
3.65V |
|
||
|
3.7 Charge time |
Approx5h |
Charge: 0.3CmA |
||
|
3.8 Max. charge current |
200A |
|||
|
3.9 Standard discharge current |
60A |
|||
|
3.10 Max continuous discharge current |
200A |
|||
|
3.11 Max peak discharge current |
600A |
≤5s |
||
|
3.11 Weight |
Approx 6.4Kg |
|||
|
3.12 Operating temperature |
Charge | 0~+45℃ | ||
| Discharge |
-20~60℃ |
|||
|
3.13 Storage temperature |
less than 1 month | -20~45℃ |
Recommended storage temperature: 20℃,at the shipment state |
|
Product Advantage
Applications
*Solar Storage System
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
