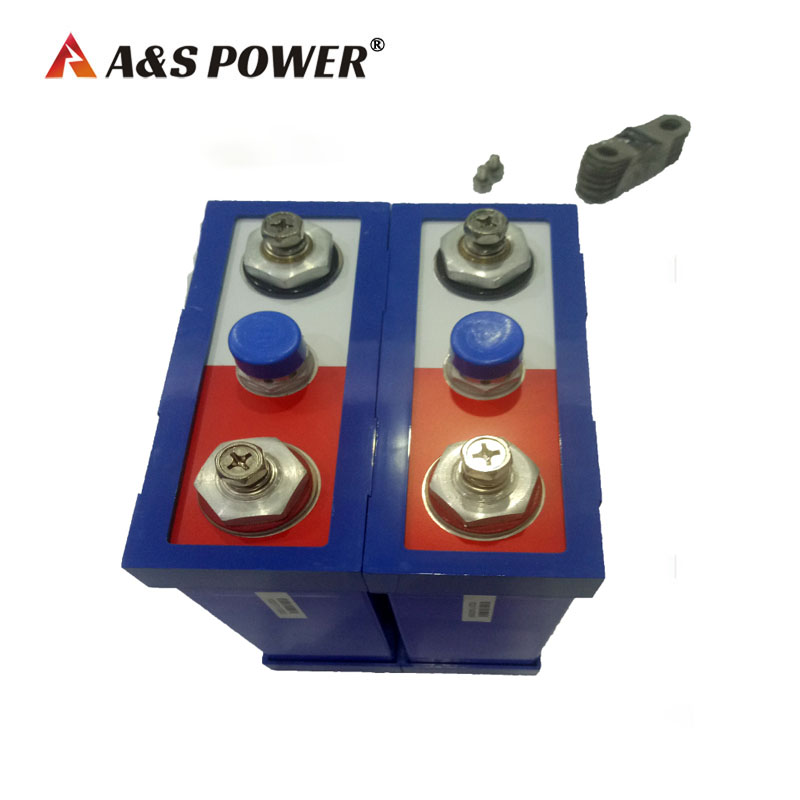

3.2V 100Ah Lifepo4 Solar Battery
Cycle life:over 2000times.
Product Specifications
- Model No.: AS-IFP60150190
- Battery Type: Lifepo4 Battery
- Voltage: 3.2V
- Capacity: 100Ah
- Unit Size : 60*150*190mm
- Weight: 3420G
- Cycle life:over 2000tims Accept OEM order and samples order.
- Application: Solar Street Light /Storage Energy
Product Introduction
| No. | Item | Parameters | Remarks |
| 1 | Norminal Capacity | 100Ah | Capacity according to standard discharge, after standard charge |
| 2 | Norminal Voltage | 3.2V | Average voltage according to stardard discharge, after standard charge |
| 3 | Charge type | CC/CV | / |
| 4 | Charge cut-off voltage | 3.65V | / |
| 5 | Discharge cut-off voltage | 2.0V | / |
| 6 | Charge current | 100A | constant current |
| 7 | Discharge current | 100A | constant current |
| 8 | Max. discharge current | 300A | 15s |
| 9 | Weight | 3420g | / |
| 10 | Inner Resistance | <2mΩ | / |
| 11 | Dimension(T*W*H) | 60*150*190mm | / |
| 12 | Working temperature |
Charging:0~45 °C; Discharging:-20~60°C |
/ |
| 13 | Storage temperature |
1 month: -20~60°C; 3 months: -20~45°C; 6 months: -20~25°C |
Recommended storage temperature: 20°C,at the shipment state |
Product Advantage
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 2000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
Applications
*Solar Street Light
*Storage Energy
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
