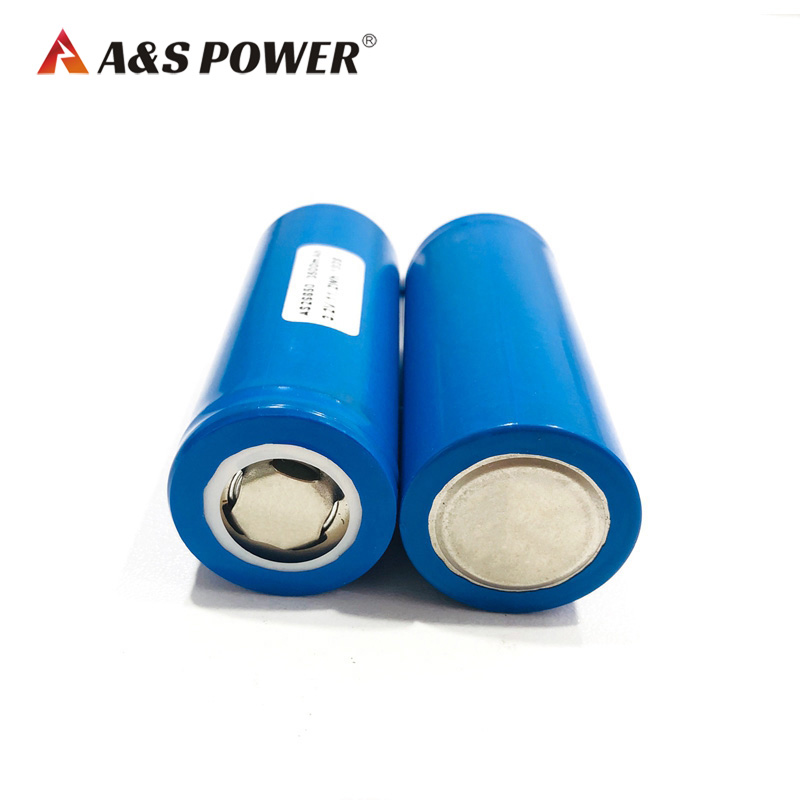

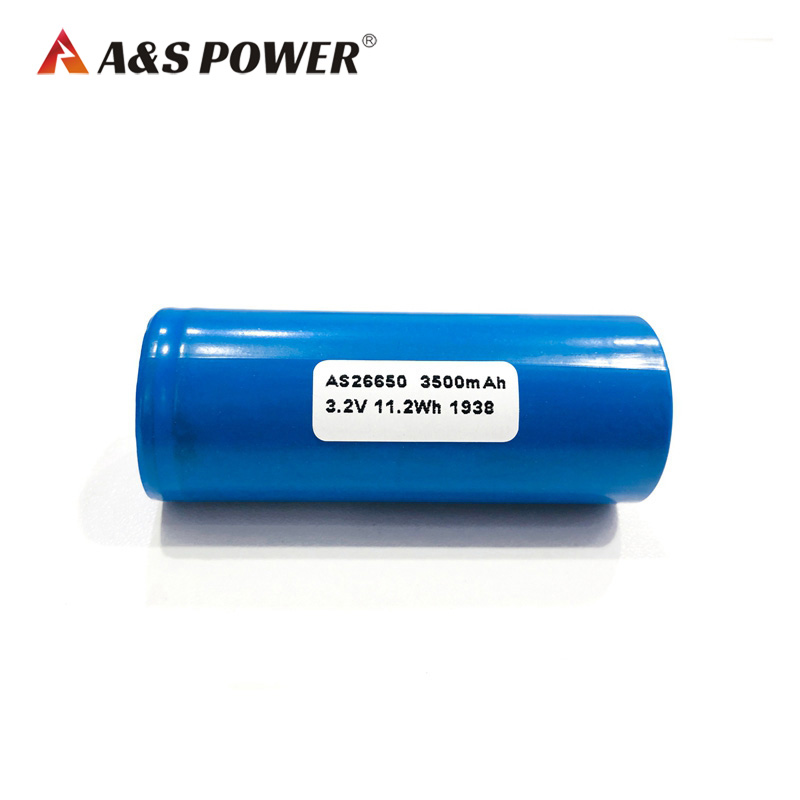

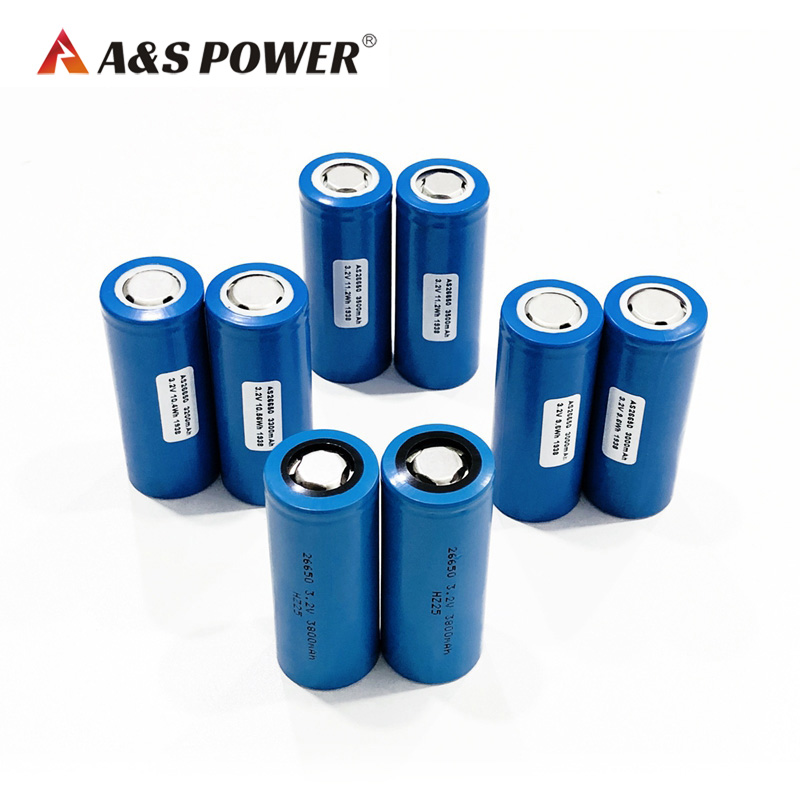

26650 3.2V 3.5Ah Lifepo4 Battery Cells
Cycle life:over 2000times. Certification: IEC62133 (CB)
Product Specifications
- Model No. : AS-IFR26650-3500
- Battery Type: Lifepo4 Battery
- Voltage: 3.2V
- Capacity: 3.5Ah
- Weight: 95G
- Unit size: 26*65mm
- Cycle life:over 2000times
- Certification: IEC62133 (CB)
- Application: Solar Street Light /Storage
Product Introduction
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical | 3.5Ah | Discharge:0.2CmA | |
| Minimum |
3.4Ah |
|||
|
3.2 Nominal Voltage |
Average 3.2V |
|||
|
3.3 Discharge Cut-off Voltage |
2.5V |
|||
|
3.4 Charge Current |
0.7A |
Standard Charge |
||
|
3.5 Charge Voltage |
3.65V |
|||
|
3.6 Charge Time |
Approx 6h |
|||
|
3.7 Max. Charge Current |
3.5A |
|||
|
3.8 Continuous discharge current |
1.75A |
|||
|
3.9 Max. discharge current |
7.0A |
|||
|
3.10 Weight |
Approx 95g |
|||
|
3.11 Operating Temperature |
Charge | 0~45℃ | ||
| Discharge |
-20~60℃ |
|||
|
3.12 Storage Temperature |
less than 1 month | -20~45℃ |
Recommended storage temperature: 20℃,at the shipment state |
|
Product Advantage
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 2000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
Applications
*Storage
*Solar Street Light
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
