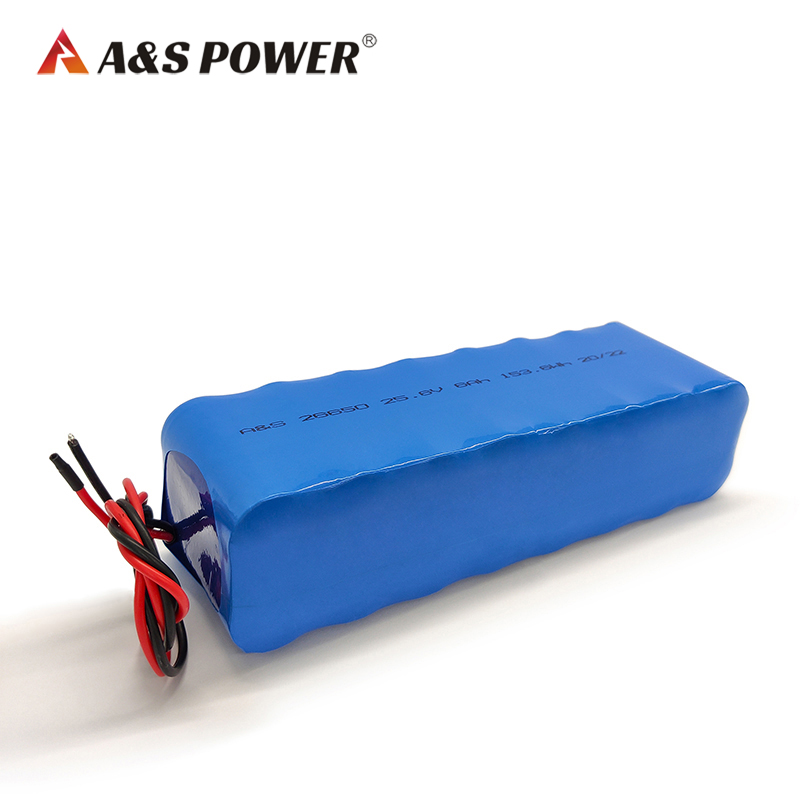

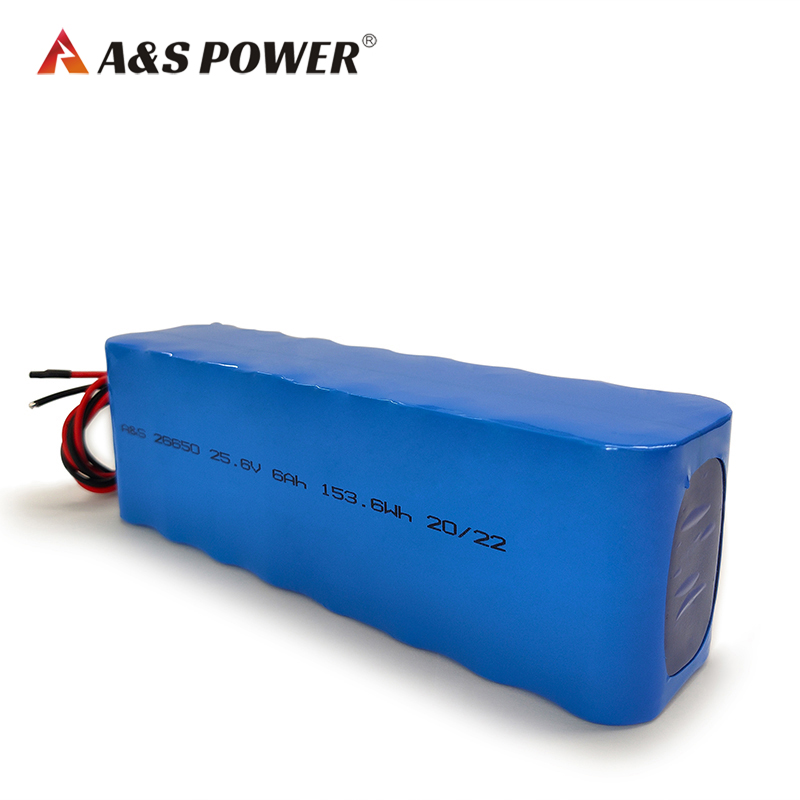

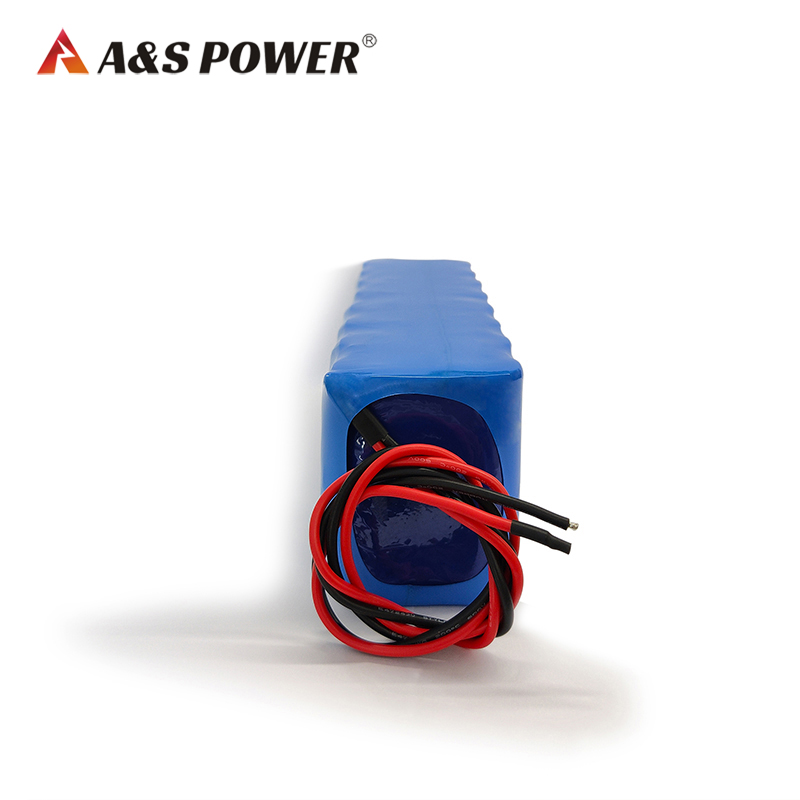

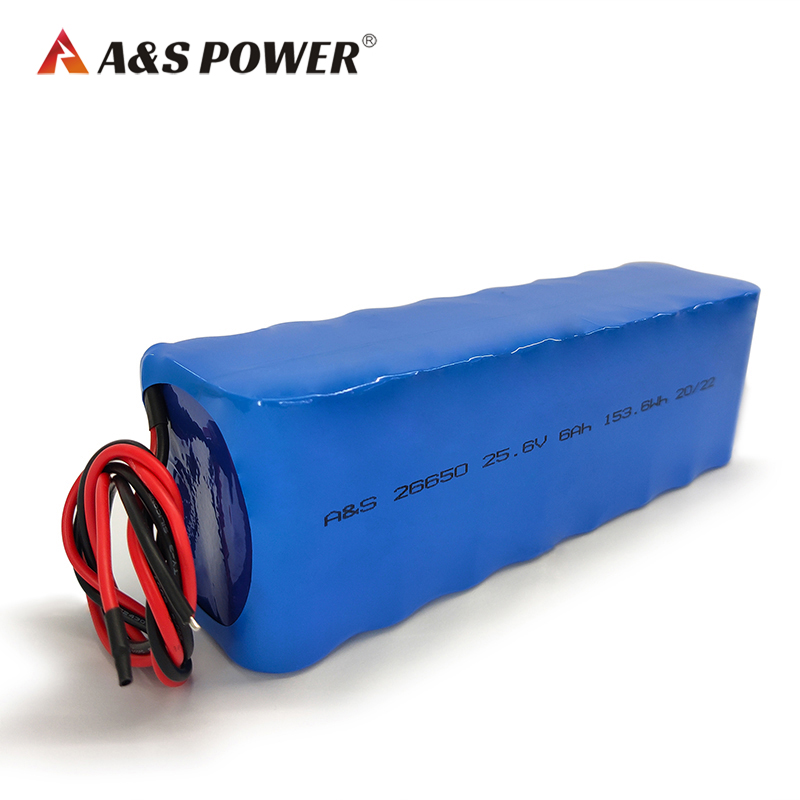

25.6V 6Ah 153.6Wh LiFePo4 Battery Pack
26650 25.6V 6Ah is the best-selling deep cycle lithium battery on the market
Product Specifications
- Model No.: AS26650-25.6V
- Battery Type: Lifepo4 Battery
- Voltage: 25.6v
- Capacity: 6Ah
- Weight: 1508G
- Unit size: 55*68*210mm
- Cycle life:over 2000tims Accept OEM order and samples order.
- Application: Solar Street Light,Storage
Product Introduction
|
Item
|
Rating
|
Note
|
||
|
3.1 Capacity
|
Typical
|
6Ah
|
Discharge:0.2CmA
|
|
|
Minimum
|
5.8Ah
|
|||
|
3.2 Nominal Voltage
|
Average 25.6V
|
Discharge:0.2CmA
|
||
|
3.3 Charge time
|
Approx13h
|
|||
|
3.4 Discharge Cut-off Voltage
|
20V
|
|||
|
3.5 Charge Current
|
1.2A
|
Standard Charge
|
||
|
3.6 Charge Voltage
|
29.2V
|
|||
|
3.7 Continuous charge current
|
1.2A
|
|||
|
3.8 Max. Charge Current
|
6A
|
|||
|
3.9 Max. Discharge Current
|
6A
|
|||
|
3.10 Weight
|
Approx 1.8kg
|
|||
|
3.11 Operating Temperature
|
Charge
|
0~+45°C
|
||
|
Discharge
|
-20~+60°C
|
|||
|
3.12 Storage Temperature
|
less than 1 month
|
-20~+45°C
|
Recommended storage
temperature: 20°C,at the shipment state |
|
Features:
• Environment friendly: Lead-free
• Long life: 2000 times cycle life, life up to 10 years
• Light weight: only 30% of the weight of lead-acid battery
• High power: provide 2 times of lead-acid battery power output
• Flexibility: modular design, can realize 4 series, multiple parallel.
Applications
*Storage
*Solar Street Light
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
