24v 100Ah Lifepo4 Battery Pack
24V 100Ah is the best-selling deep cycle lithium battery on the market
Product Specifications
- Model No.: AS24-100
- Battery Type: Lifepo4 Battery
- Voltage:24v
- Capacity: 100Ah
- Weight: 21KG
- Unit size:405*173*208mm
- Cycle life:over 2000times
- Warranty:3-5 years
- BMS:Built-in BMS Protection
- Application: Off-Grid System/RV/Golf Cart
Product Introduction
|
Item
|
value
|
|
Nominal voltage (V):
|
24
|
|
Nominal capacity (ah):
|
100
|
|
Rated energy (WH):
|
2560
|
|
Maximum charging voltage (V):
|
29.2
|
|
Maximum charging current (a):
|
100
|
|
Floating charge voltage (V):
|
27.2-27.2
|
|
Maximum continuous discharge current (a):
|
100
|
|
Maximum peak discharge current @ 10s (a):
|
200
|
|
Maximum load power (W):
|
2000
|
|
Discharge cut-off voltage (V):
|
21.6
|
|
Charging temperature (℃):
|
0~ +50
|
|
Discharge temperature (℃):
|
0 ~+60
|
|
Operating humidity:
|
|
|
Number of cycles (25 ℃, 0.5c, 100% DoD):
|
>2000
|
|
Cell combination mode:
|
27140160-8S2P
|
|
Terminal specification:
|
F12 / M8
|
|
Degree of protection:
|
IP65
|
|
Overall dimension (mm):
|
405*173*208MM
|
|
Reference weight (kg):
|
21
|
|
authentication:
|
UN 38.3/MSDS
|

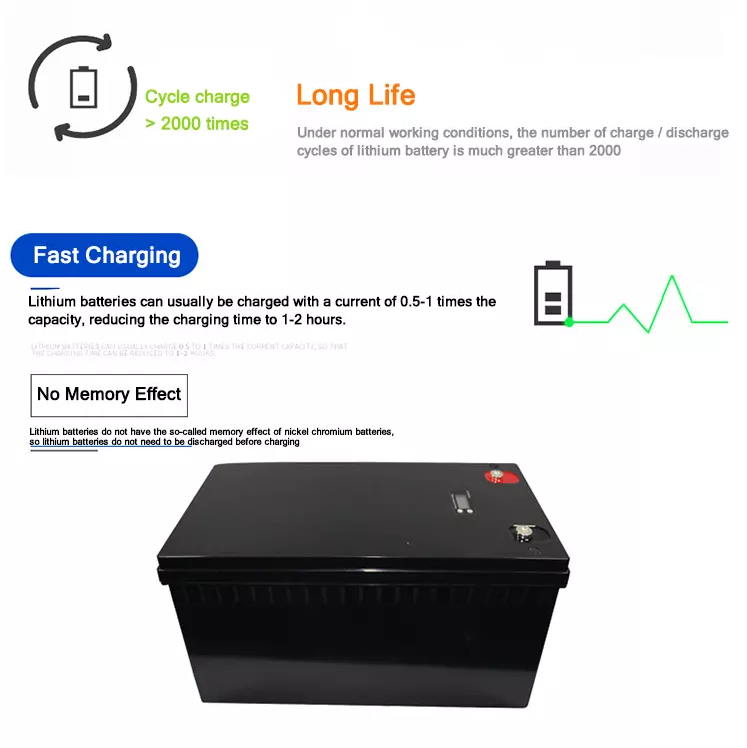

Features:
• Environment friendly: Lead-free
• Long life: 2000 times cycle life, life up to 10 years
• Light weight: only 30% of the weight of lead-acid battery
• High power: provide 2 times of lead-acid battery power output
• Flexibility: modular design, can realize 4 series, multiple parallel.
Applications
* Off-Grid System
*Golf Cart
*RV
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
