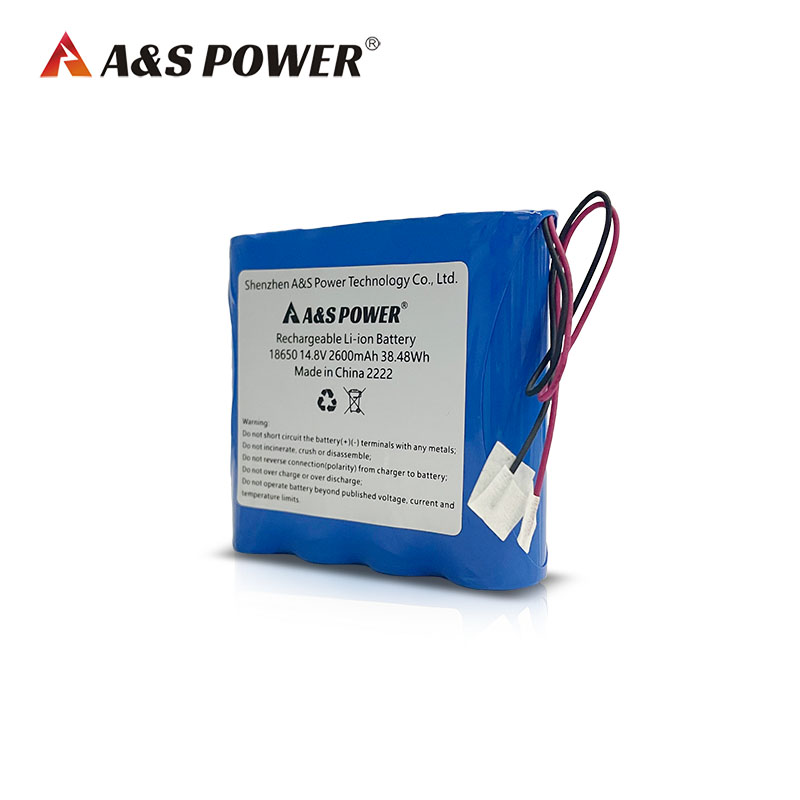

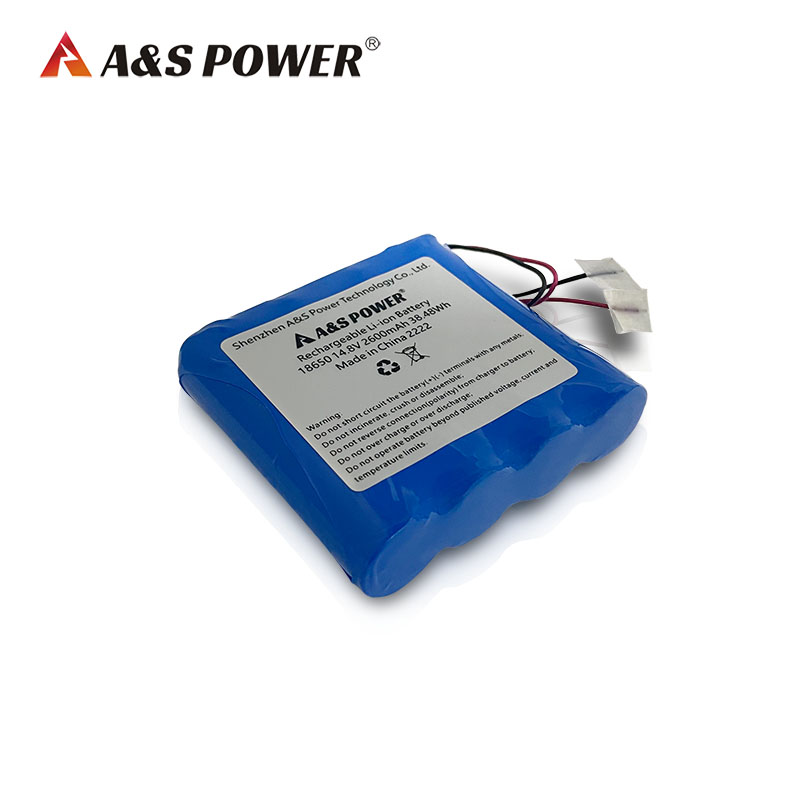

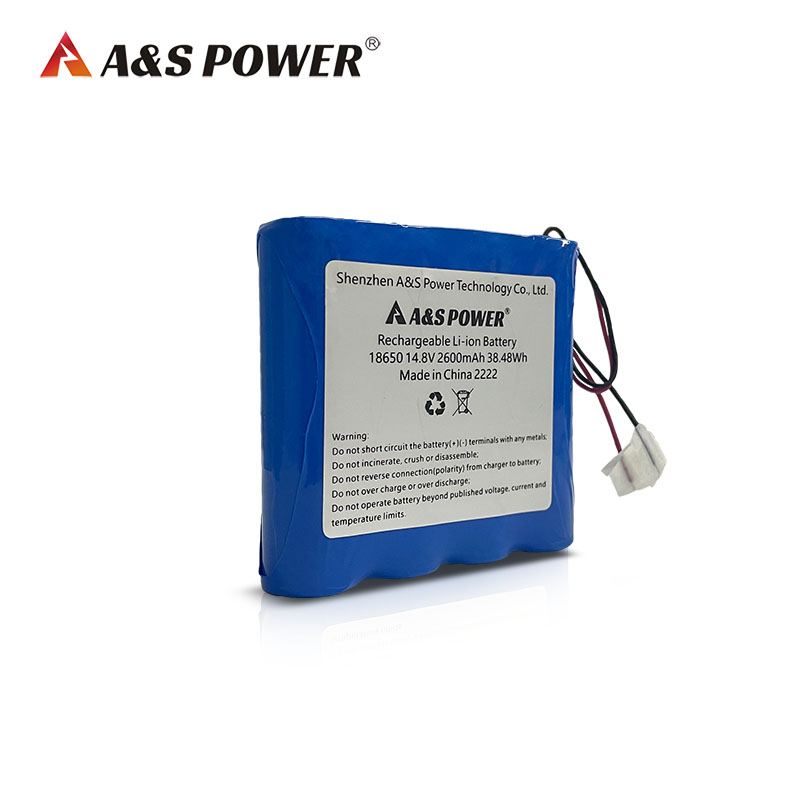

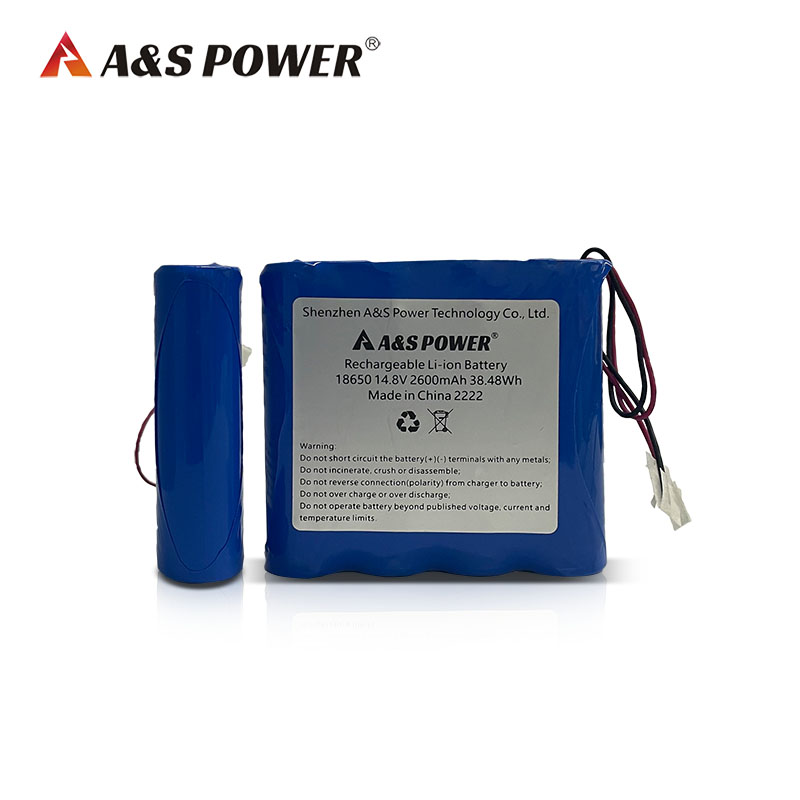

18650 Lithium Ion 14.8V 2600mAh Li Ion Battery Pack
Product Specifications
- Model No.: AS-18650-14.8v-2600mAh
- Battery Type:Lithium Ion Battery
- Unit Size :20*70*78mm
- Weight:200g
- Cycle Life:Over 500times
- Transport Package:Safe Standard Export Cartons
- Application:Remote Control Boat, Remote Control Plane, Remote Control Car, Solar System etc
Product Introduction
| Item | Rating | Note | ||
| 3.1 Capacity | Typical | 2600mAh | Discharge:0.2CmA | |
| Minimum | 2500mAh | |||
| 3.2 Nominal Voltage | Average 14.8V | Discharge:0.2CmA | ||
| 3.3 AC Impedance Resistance | ≤350mΩ | |||
| 3.4 Discharge Cut-off Voltage | 12.0V | |||
| 3.5 Charge Current | 520mA | Standard Charge | ||
| 3.6 Charge Voltage | 16.8V | |||
| 3.7 Charge Time | Approx 6h | Charge: 0.2CmA | ||
| 3.8 Max. Charge Current | 2600mA | |||
| 3.9 Max. Continuous Discharge Current | 2600mA | |||
| 3.10 Weight | Approx 190g | |||
| 3.11 Operating Temperature |
Charge | 0~+45ºC | ||
| Discharge | -20~+60ºC | |||
| 3.12 Storage Temperature |
less than 1 month | -10~+45ºC | Recommended storage temperature: 20ºC,at the shipment state |
|
| less than 3 months | -10~+35ºC | |||
BATTERY CELL
We current main produce 18650 /26650lithium ion cell and lithium iron phosphatecell, for lithium ion cell, they cycle life around300 times, and for lifepo4 cell, the cycle lifearound 1500 times
BATTERY WITH PCM
The PCM main IC we used Japan Seiko lC, it hasOver-charge, over-discharge, over-current andshort-circuit Protection function. The PCM alsocan customized to your request, such as add PTC.NTC, and with cell balance function.
FINISHED BATTERY WITH PCM
Finished battery usually it is with PCM.Wire,and connector, it used for Bluetooth speaker,led light, solar street light and other digitaldevice.
Applications
*Remote Control Boat
*Remote Control Plane
*Remote Control Car
*Solar System etc
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
