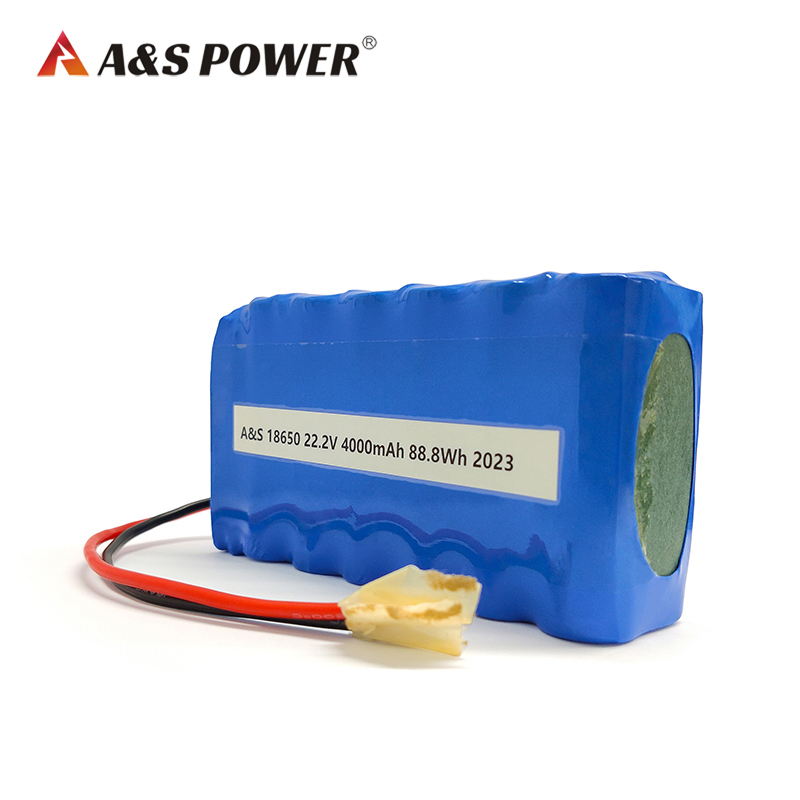

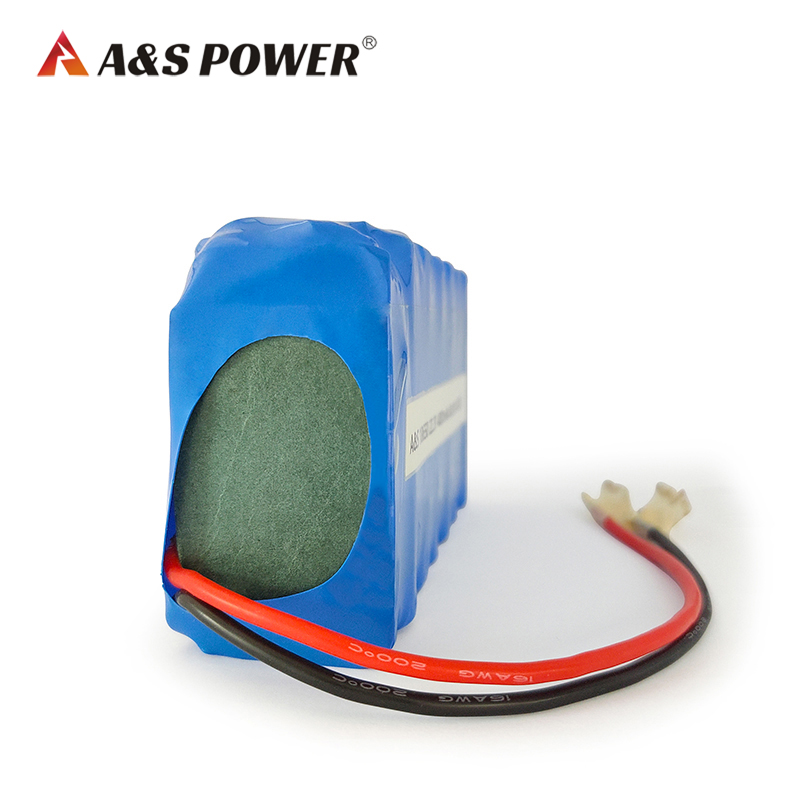

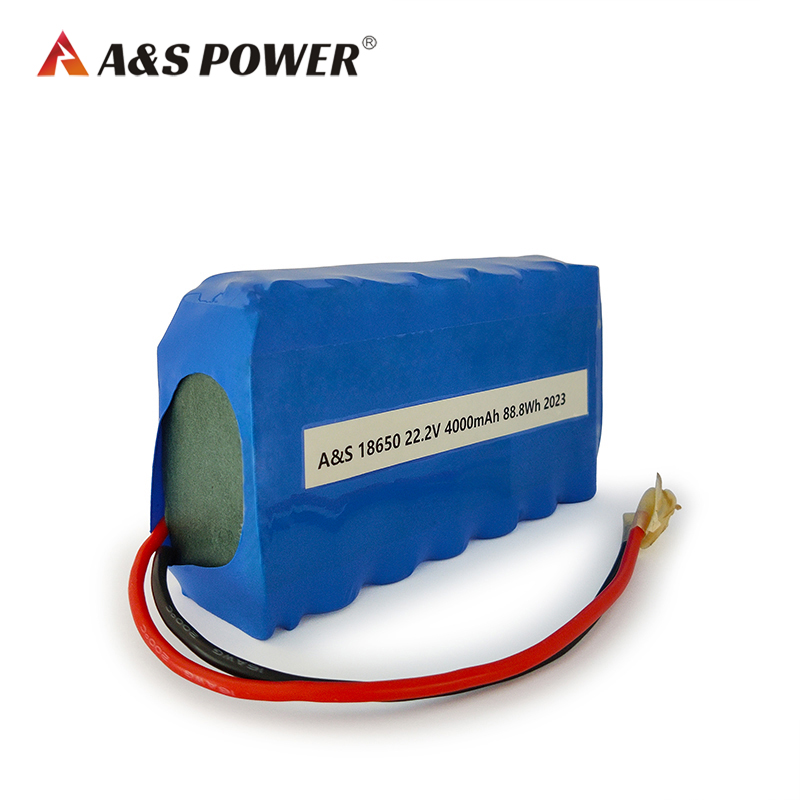

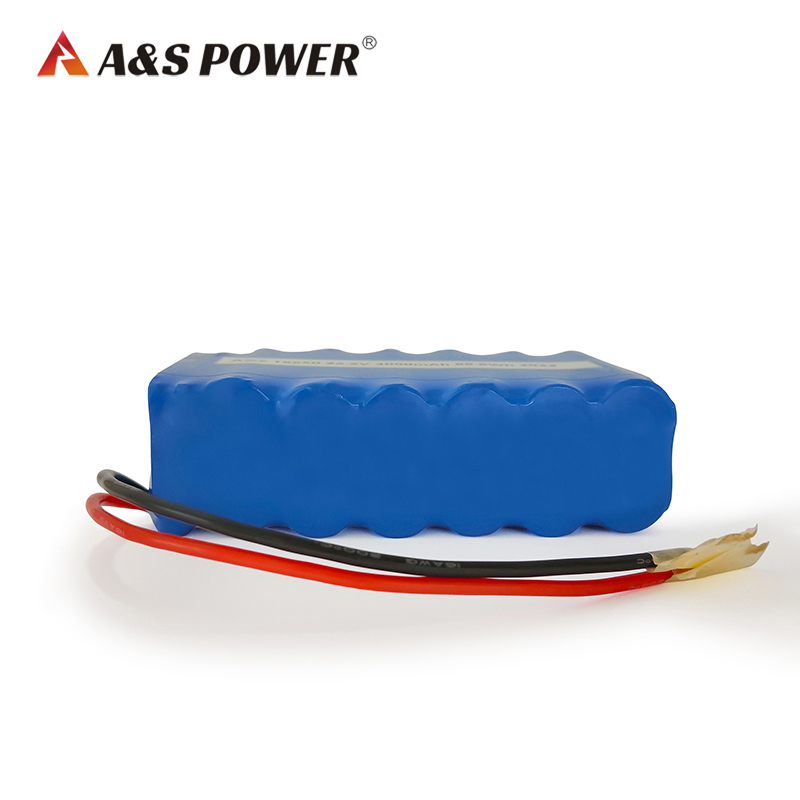

18650 6s2p 22.2v 4Ah Lithium Ion Battery Pack
Product Specifications
- Model No.: AS-ICR186506S2P
- Battery Type:Lithium Ion Battery
- Voltage: 22.2v
- Capacity: 4Ah
- Unit Size : 40*68*115mm
- Weight: 600G
- Certification: IEC62133(CB)/UN38.3
- Cycle Life:Over 500times
- Application: Power Tools, Speakers, Solar Led Light
Product Introduction
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
4000mAh |
Discharge:0.2CmA |
|
|
Minimum |
3800mAh |
|||
|
3.2 Nominal Voltage |
Average 22.2v |
|
||
|
3.3 AC Impedance Resistance |
≤360mΩ |
|
||
|
3.4 Discharge Cut-off Voltage |
18.0V |
|
||
|
3.5 Charge Current |
800mA |
Standard Charge |
||
|
3.6 Max Charge Voltage |
25.2V |
|
||
|
3.7 Charge Time |
Approx 6h |
Charge: 0.2CmA |
||
|
3.8 Max. Charge Current |
4.0A |
1.0CmA |
||
|
3.9 Max. Discharge Current |
16.0A |
|
||
|
3.10 Weight |
Approx 600g |
|
||
|
3.11 Operating Temperature |
Charge |
0~+45°C |
|
|
|
Discharge |
-20~+60°C |
|
||
|
3.12 Storage Temperature |
less than 1 month |
-5~+35°C |
Recommended storage temperature: 25°C,at the shipment state |
|
|
less than 3 months |
-5~+35°C |
|||
Applications
*Power Tools
*Speakers
*Solar Led Light
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
