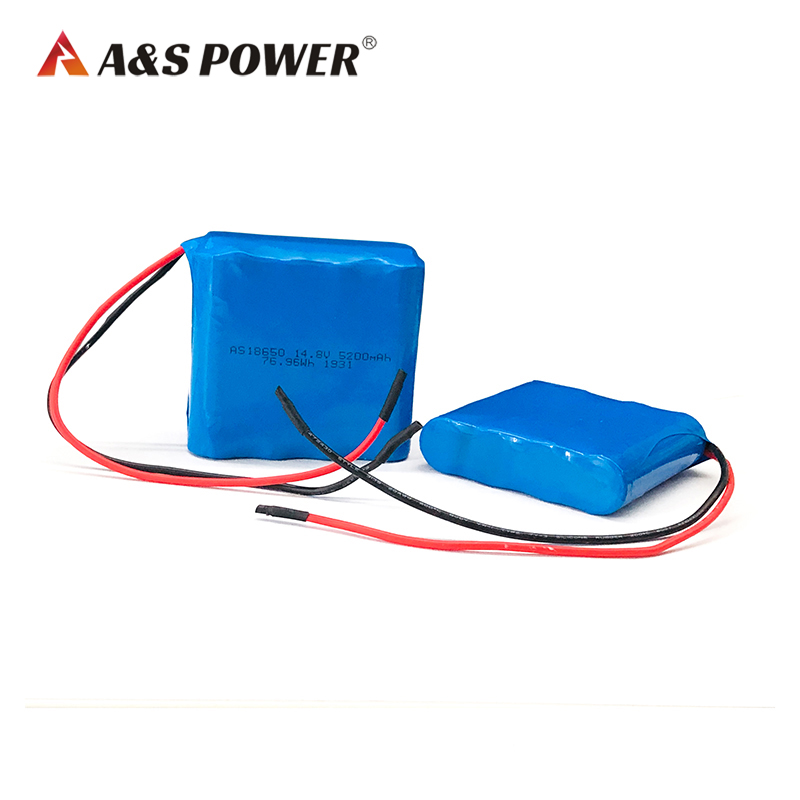

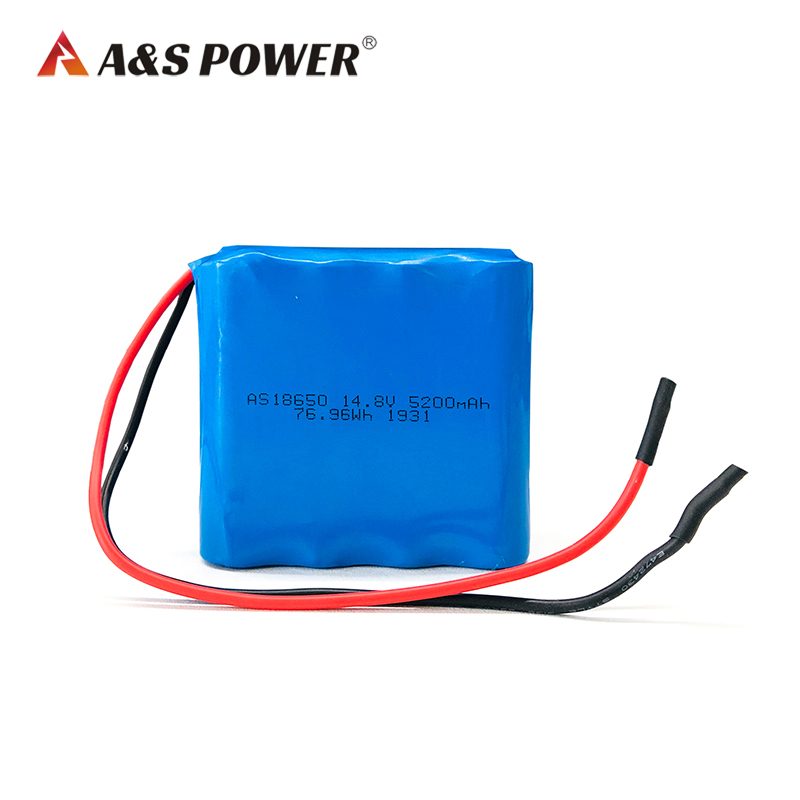

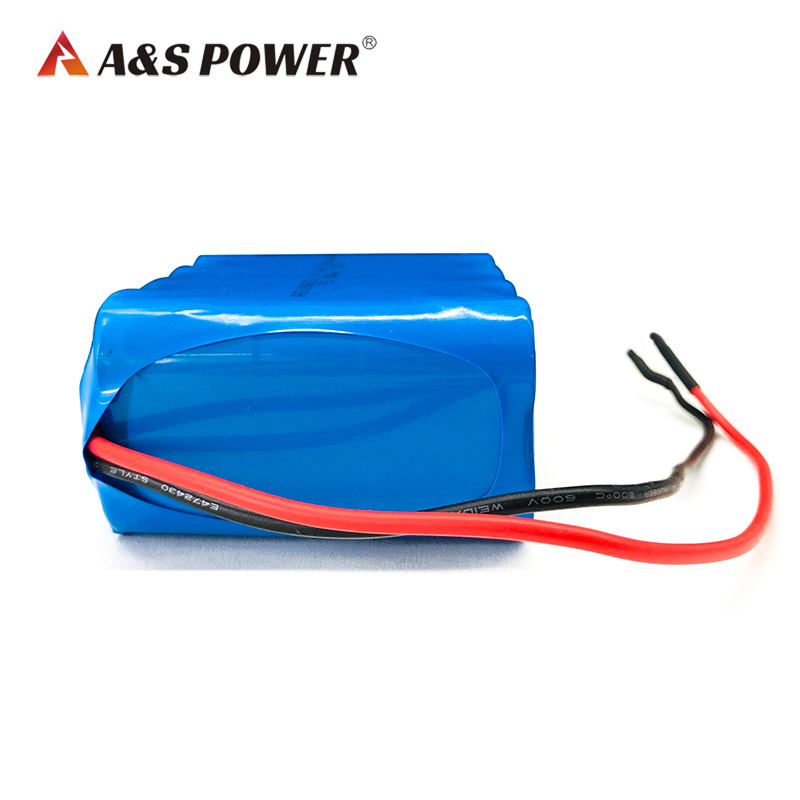

18650 4S2P 14.8v 5200mAh Li-Ion Battery Pack
Product Specifications
- Model No.: AS-ICR18650-4S2P
- Battery Type:Lithium Ion Battery
- Voltage: 14.8v
- Capacity: 5200mAh
- Unit Size : 40*70*75mm
- Weight: 380G
- Cycle Life:Over 500times
- Application: Power Tools, Speakers, Solar Led Light
Product Introduction
| Item | Rating | Note | ||
|
3.1 Capacity |
Typical |
5200mAh | Discharge:0.2CmA
cut off Voltage:3V for cell |
|
|
Minimum |
5100mAh | |||
|
3.2 Nominal Voltage |
Average 14.8v | Discharge:0.2CmA
cut off Voltage:3V for cell |
||
|
3.3 AC Impedance Resistance |
≤320mΩ | |||
|
3.4 Discharge Cut-off Voltage |
12.00V | |||
|
3.5 Charge Current |
1040mA | |||
|
3.6 Charge Voltage |
14.6V | |||
|
3.7 Max. Charge Voltage |
14.69V | |||
|
3.8 Charge Time |
Approx 6.0h | Charge: 0.2CmA | ||
|
3.9 Max. Charge Current |
5200mA | 1.0CmA | ||
|
3.10 Max. Discharge Current |
5200mA | 1.0CmA | ||
|
3.11 Weight |
Approx380.0g | |||
|
3.12 Operating Temperature |
Charge |
0~+40℃ | ||
|
Discharge |
-20~+60℃ | |||
|
3.13 Storage Temperature |
less than 1 month |
-20~+45℃ | Recommended storage
temperature: 20℃,at the shipment state |
|
|
less than 3 months |
-20~+35℃ | |||
Applications
*Power Tools
*Speakers
*Solar Led Light
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
