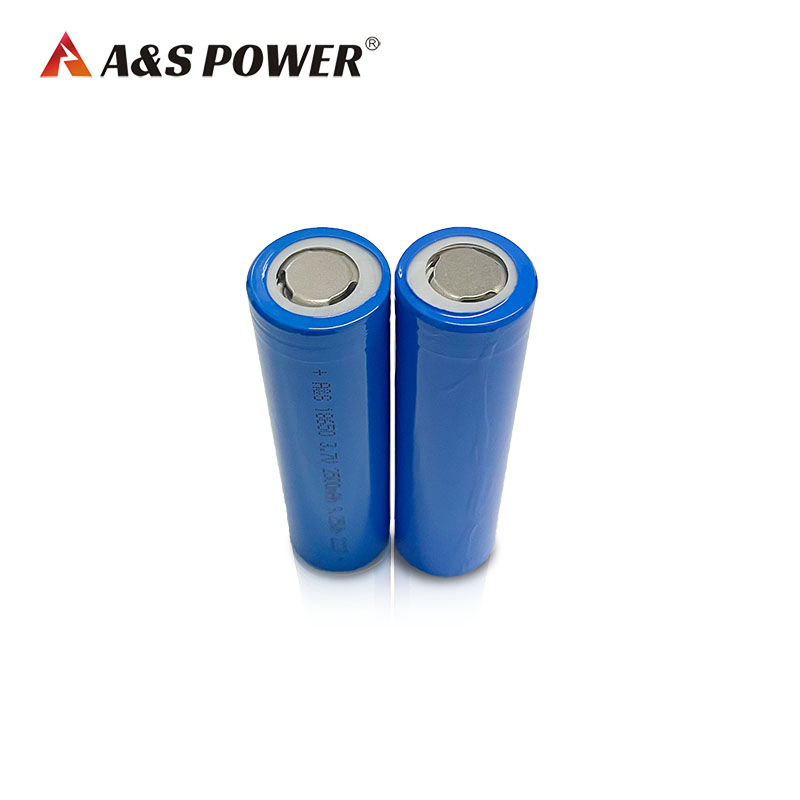

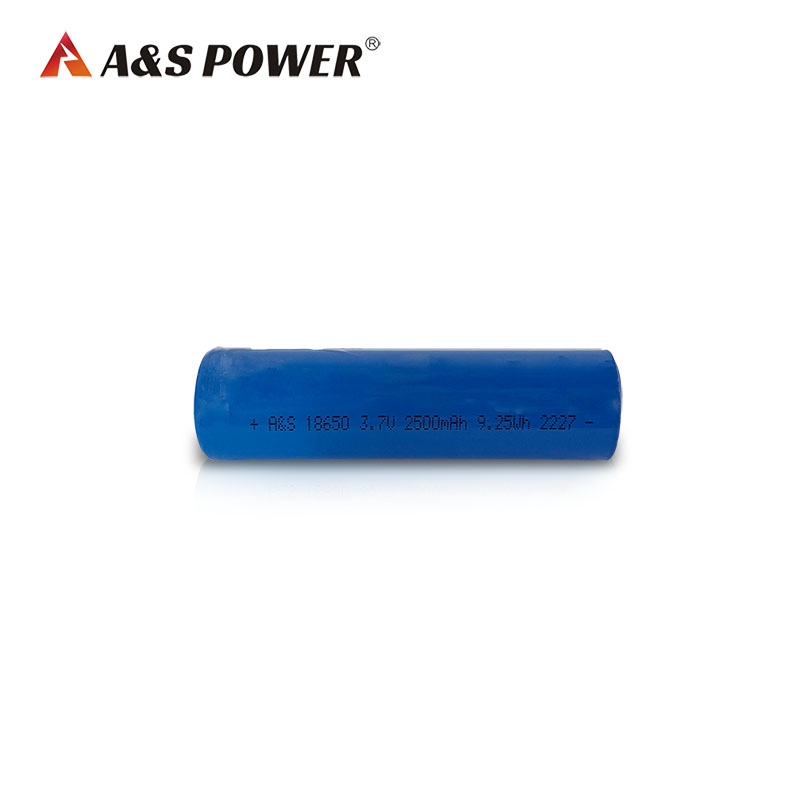

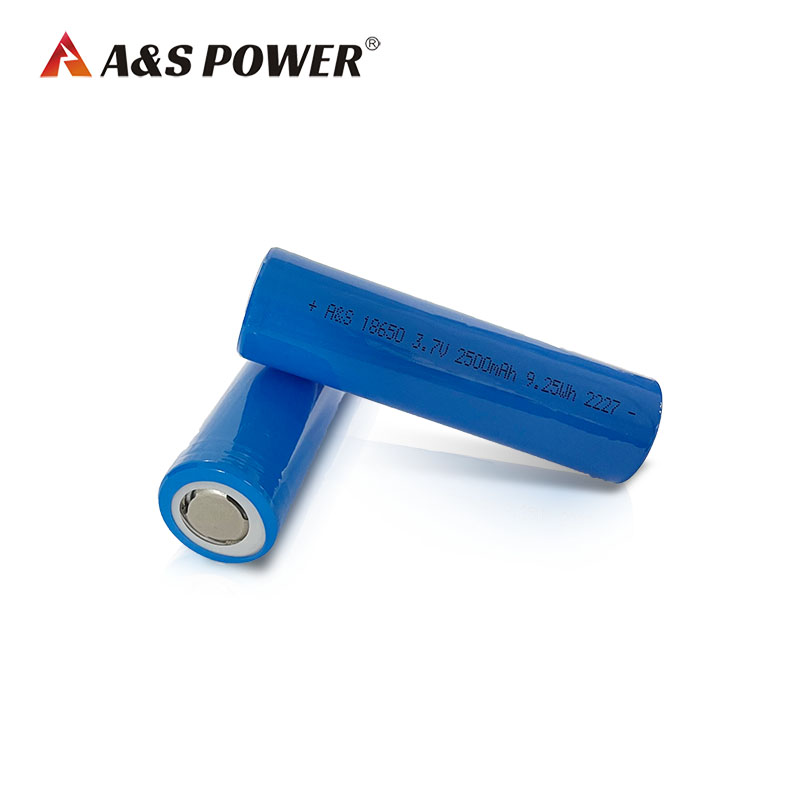

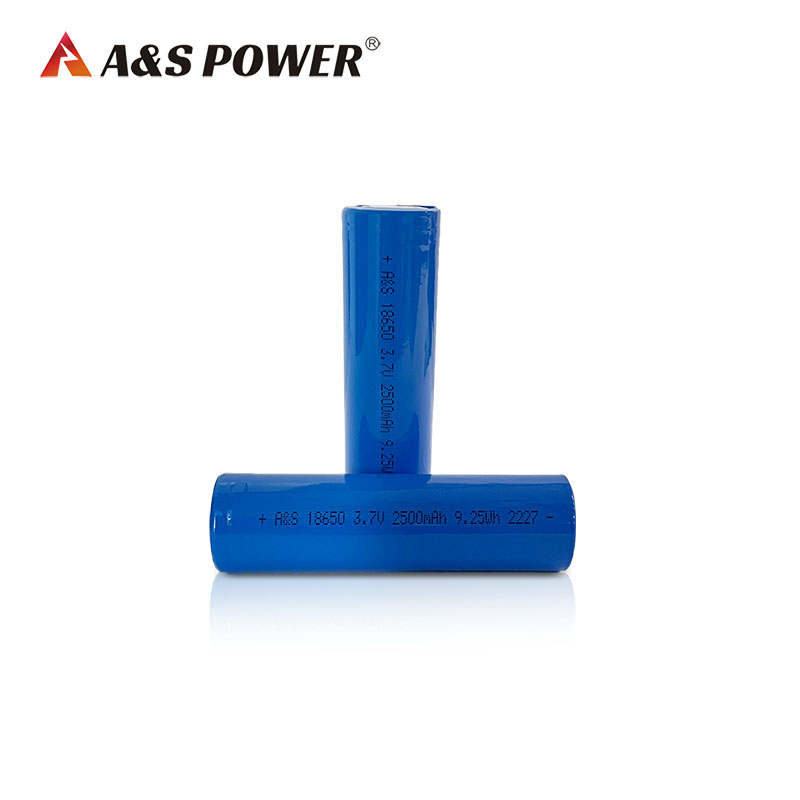

18650 3.7V 2500mAh Rechargeable Li Ion Battery Cells
Product Specifications
- Model No.: AS-18650-2500mAh
- Battery Type: Lithium Ion Battery
- Voltage:3.7V
- Capacity:2500mAh
- Unit Size :18x65mm (cell)
- Weight:55g
- Cycle life:over 500times
- Delivery time:3-4 weeks
- Sample: available
- Certificate:KC/UL2054/IEC62133/CE/UN38.3/MSDS
- Application:Power Tools, LED Light, Speakers
Product Introduction
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
2600mAh |
Discharge:0.2CmA |
|
|
Minimum |
2500mAh |
|||
|
3.2 Nominal Voltage |
Average 3.7V |
|||
|
3.3 AC Impedance Resistance |
≤150mΩ |
|||
|
3.4 Discharge Cut-off Voltage |
3.0V |
|||
|
3.5 Charge Current |
1250mA |
Standard Charge |
||
|
3.6 Charge Voltage |
4.23V |
|||
|
3.7 Charge Time |
Approx 6h |
Charge: 0.2CmA |
||
|
3.8 Max. Continue Charge Current |
2600mA |
|||
|
3.9 Max. Continue Discharge Current |
7800mA |
|||
|
3.10 Weight |
Approx 56g |
|||
|
3.11 Enery Density |
Approx 590Wh/L |
|||
|
3.12 Shipping Voltage |
3.90~3.95V |
|||
|
3.13 Operating Temperature |
Charge |
0~+45℃ |
||
|
Discharge |
-20~+60℃ |
|||
|
3.14 Storage Temperature |
less than 1 month |
-10~+45℃ |
Recommended storage
temperature: 20℃,at the shipment state |
|
| less than 3 months |
-10~+35℃ |
|||
Applications
*Torch Light
*Speakers
*LED Light
*Power Tool
*Hand Fan
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
