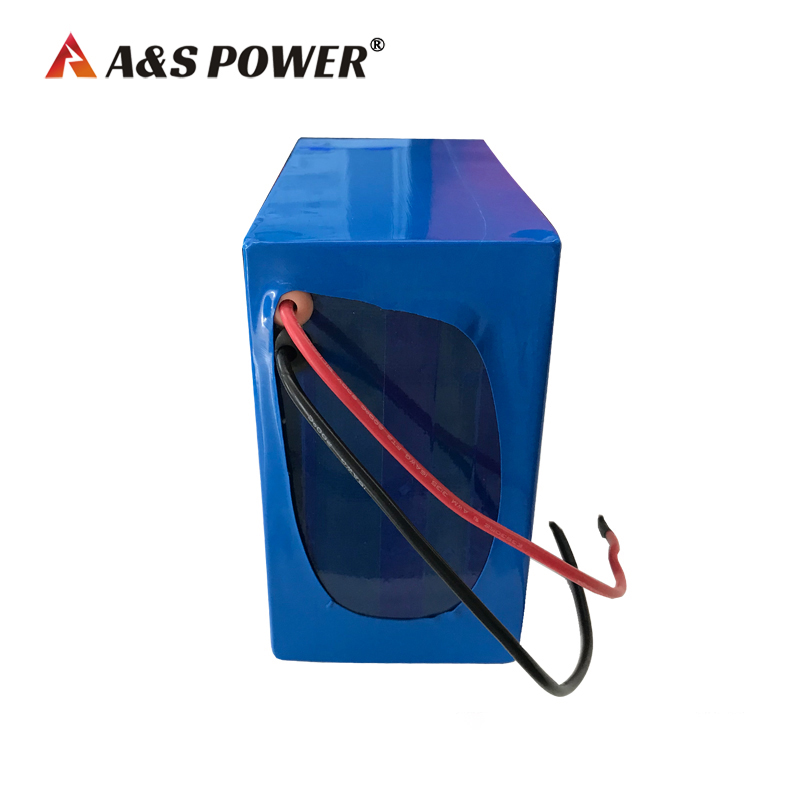

18650 25.9v 15.6ah Li-Ion Battery Pack
With a cycle life of up to 500 times, this battery is designed to last.
Product Specifications
- Model No.: AS18650 7S6P
- Battery Type:Lithium Ion Battery
- Voltage: 25.9v
- Capacity: 15.6Ah
- Unit Size : 75*120*138mm
- Weight: 2.5KG
- Cycle Life:Over 500times
- Application: Power Tools, Speakers, Solar Led Light
Product Introduction
| Item | Rating | Note | ||
| 3.1 Capacity | Typical | 15.6Ah | Discharge:0.2CmA | |
| Minimum | 15.0Ah | |||
| 3.2 Nominal Voltage | Average 25.9V | Discharge:0.2CmA | ||
| 3.3 Discharge Cut-off Voltage | 21.0V | |||
| 3.4 Charge Current | 3.0A | Standard Charge | ||
| 3.5 Charge Voltage | 29.4V | |||
| 3.6 Charge Time | Approx 6h | Charge: 0.2CmA | ||
| 3.7 Max. Continue Charge Current | 7.5A | 10~45ºC | ||
| 3.8 Continue Discharge Current | 7.5A | -20~60ºC | ||
| 3.9 Peak Discharge Current | 15.0A | -10~45ºC | ||
| 3.10 Weight | Approx 2.5KG | |||
| 3.11 Operating Temperature | Charge | 0~+45ºC | ||
| Discharge | -20~+60ºC | |||
| 3.12 Storage Temperature | less than 1 month | -10~+45ºC | Recommended storage temperature: 20ºC,at the shipment state |
|
| less than 3 months | -10~+35ºC | |||
Applications
*Power Tools
*Speakers
*Solar Led Light
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
