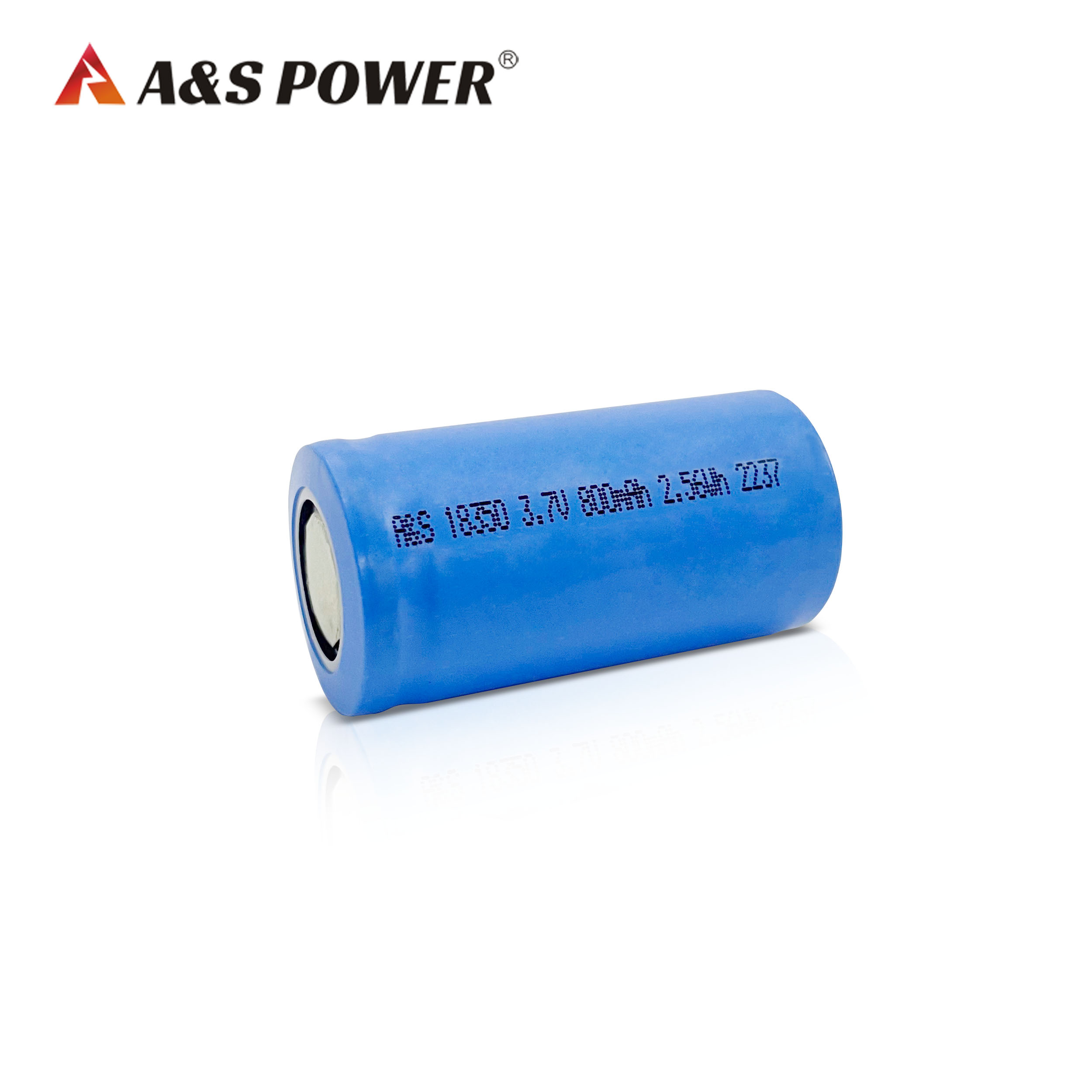

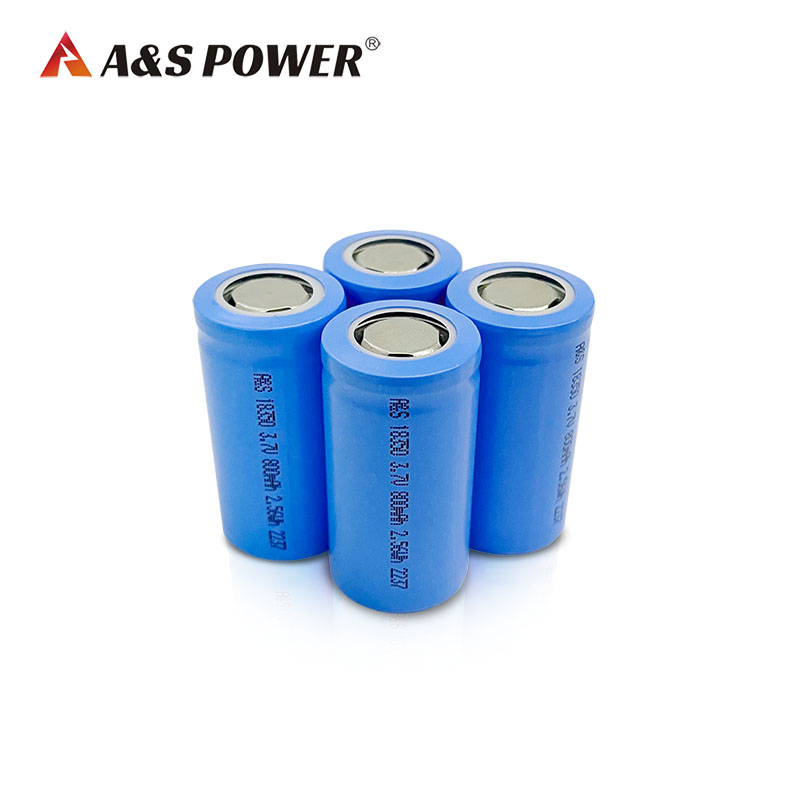

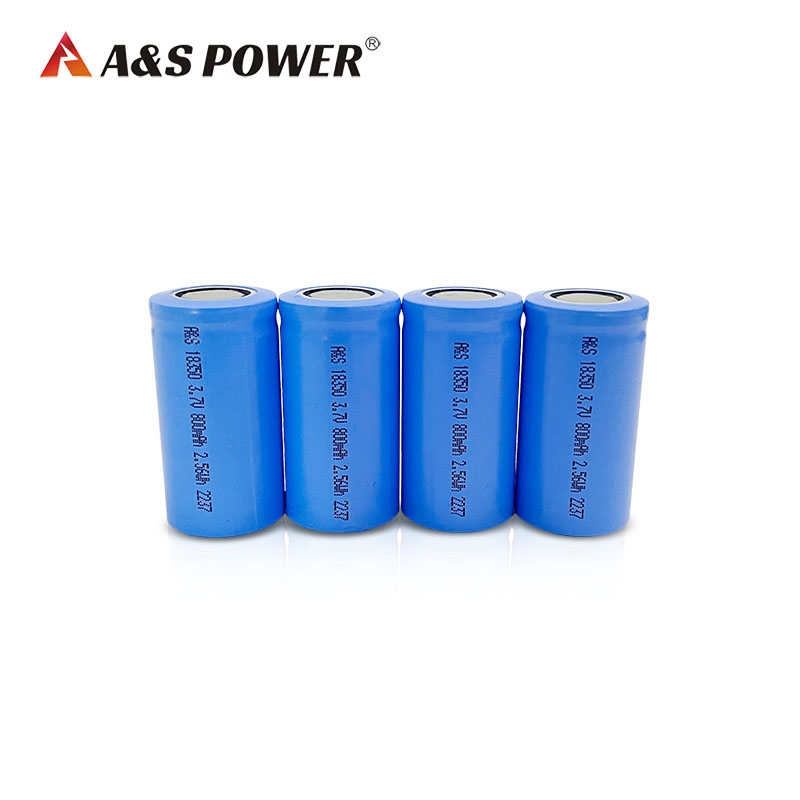

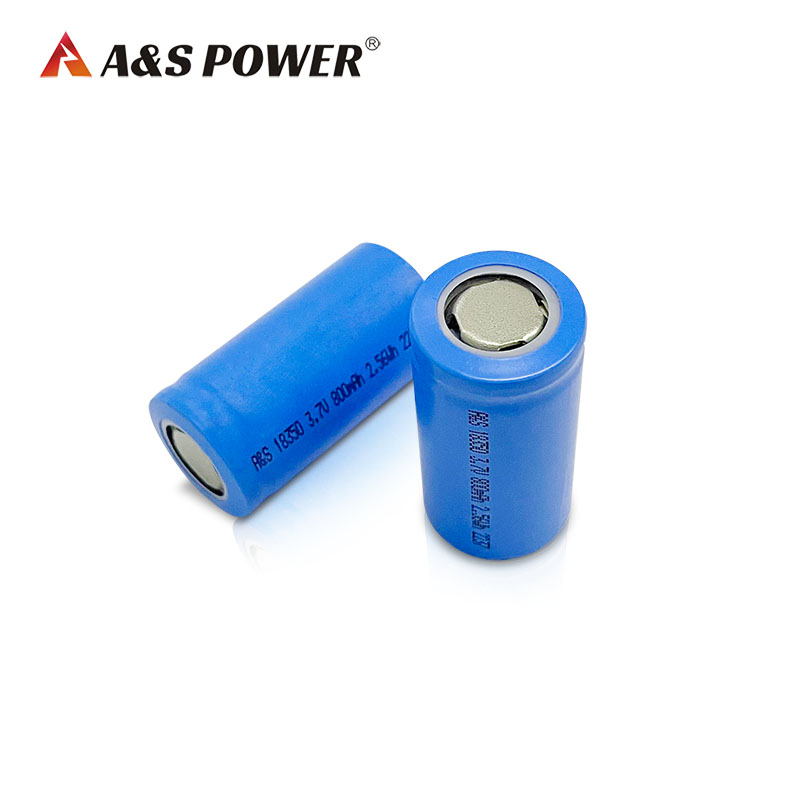

18350 3.7V 800mAh Rechargeable Li Ion Battery Cells
With a cycle life of up to 500 times, this battery is designed to last.
Product Specifications
- Model No.: AS-18350-800mAh
- Battery Type: Lithium Ion Battery
- Voltage:3.7V
- Capacity:2500mAh
- Unit Size : 18*65 mm (cell)
- Weight:50G
- Cycle life:over 500times
- Delivery time:3-4 weeks
- Sample: available
- Certificate: UL2054/CB/KC/MSDS/CE/PSE/UN38.3
- Application:oys, Power Tools, Home Appliances, Consumer Electronics, Power bank,Other digital products
Product Introduction
|
Item |
Rating | Note | ||
| 3.1 Capacity | Typical | 800mAh | Discharge:0.2CmA | |
| Minimum | 800mAh | |||
| 3.2 Nominal Voltage | Average 3.7V | |||
| 3.3 AC Impedance Resistance | ≤150mΩ | |||
| 3.4 Discharge Cut-off Voltage | 3.0V | |||
| 3.5 Charge Current | 52mA | Standard Charge | ||
| 3.6 Charge Voltage | 4.20V | |||
| 3.7 Max. Charge Voltage | 4.23V | |||
| 3.8 Charge Time | Approx 6.0h | Charge: 0.2CmA | ||
| 3.9 Max. Charge Current | 800mA | 1.0CmA | ||
| 3.10 Max. Discharge Current | 800mA | 1.0CmA | ||
| 3.11 Weight | Approx 17g | |||
|
3.12 Operating Temperature |
Charge | 0~+45°C | ||
| Discharge | -20~+60°C | |||
|
3.13 Storage Temperature |
less than 1 month | -5~+35°C | Recommended storage
temperature: 20°C,at the shipment state |
|
Applications
*oys
*Power Tools
*Home Appliances
*Consumer Electronics
*Power bank
*Other digital products
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
