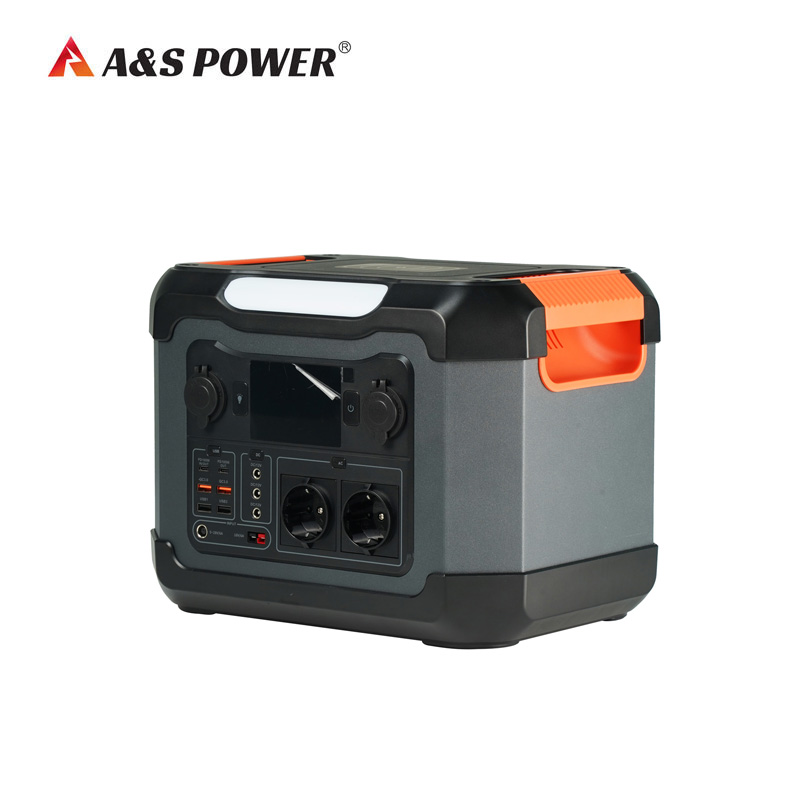

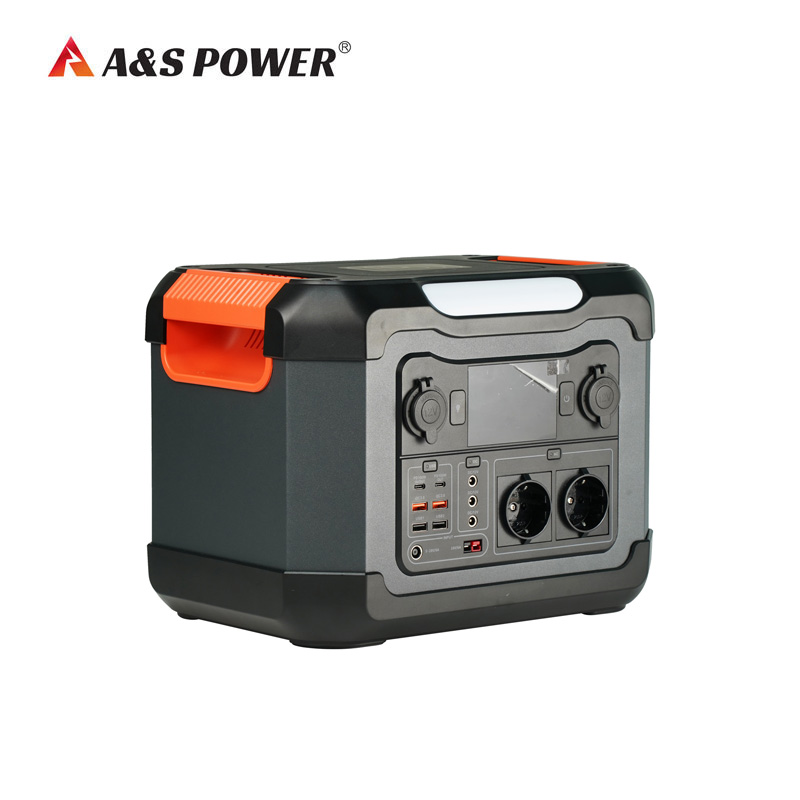

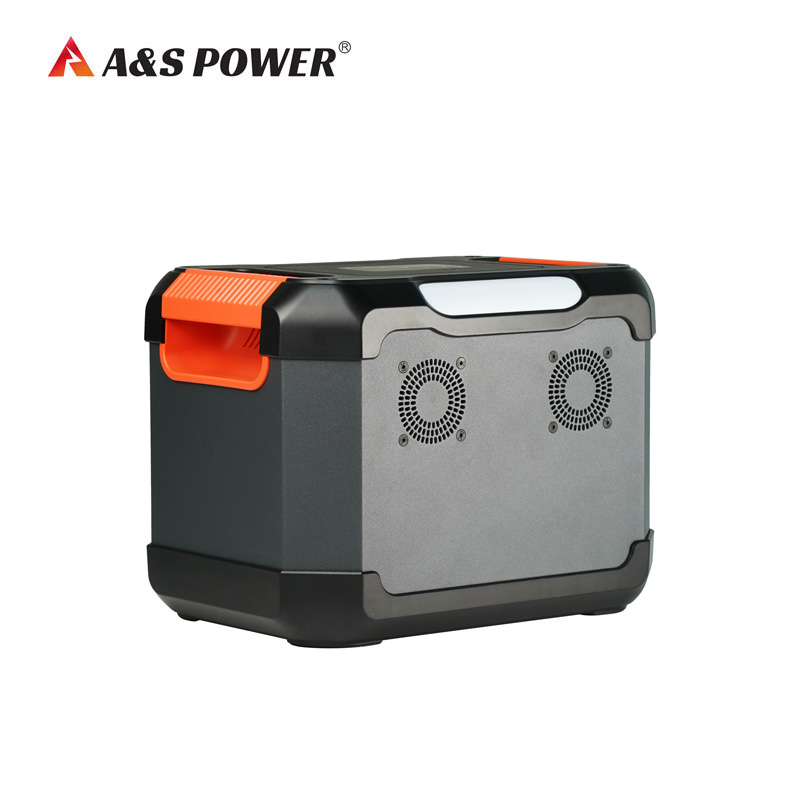

1200w Outdoor multi-function Solar Portable Power Station For home energy storage
Product Specifications
- Model No :ASP1200
- Material:Lithium Battery
- Unit Size :338 * 247 * 245mm
- Weight:12KG
- Battery Capacity: 1080Wh/300000mAh
- AC Output Power: 1200W
- ACOutnutVoltage: 110~220V/50~60Hz
Product Introduction
|
AC Specification
|
US/JP/EU/CN
|
|
Actual Capacity
|
300000mAh / 1098Wh (50AH*6)
|
|
Translated with www.DeepL.com/Translator (free version)
|
Square aluminum case 50AH*6
|
|
Housing Material
|
Aluminum + Plastic
|
|
DC input
|
5V-28V 6A
|
|
DC 1&2&3 Outputs
|
12V-13V /10A
|
|
Type C 1 input/output
|
5V/2.4A, 9V/3A, 12V/3A,15V/3A, 20V/5A (100W)
|
|
Type C 2 Output
|
5V/2.4A, 9V/3A, 12V/3A,15V/3A, 20V/5A (100W)
|
|
Cigarette lighter 1 output
|
12V-13V/10A
|
|
Cigarette lighter 2 output
|
12V-13V/10A
|
|
Wireless charger output
|
15W
|
|
Solar panel input
|
18V/ 6A
|
|
Voltage
|
110V/220V 50-60HZ
|
|
AC Rated Output
|
1200W
|
|
QC3.0 1&2 output
|
5V/3A, 9V/2A, 12V/1.5A 18W
|
|
USB1&2 output
|
5V/2.1A
|
|
Lamp Power
|
12W
|
|
Power display
|
LED digital display
|
|
Charging ambient temperature
|
0–45 ℃
|
|
Discharge ambient temperature
|
-10–45 ℃
|
|
Cycle times
|
500 (80%)
|
|
Bare machine net weight
|
12KG
|
|
Bare machine size
|
338 * 247 * 245mm
|
|
Gross weight (bare machine + color box + adapter + manual)
|
13.8KG
|
|
Color box size
|
405*310*350mm
|
|
UN Outer box size (1PCS/box)
|
425*330*370mm
|
Save Suggestion:
1. The battery pack must be recharged with the original charger.
2. Keep the battery dry and ventilated, prevent fromsun-scorched and rain-drenched.
3. Do not short circuit battery pack.
4. Please do not use heavy objects or other objects to squeeze the battery.
5. If the polarity of the battery is reversed, the battery may be short circuited, which causes the battery to overheat, fire, and damage.
6. Please full charge battery if you do not use it long term, at least charge it in every 3 months. 7. Please turn off DC and AC switch when not used.
Applications
*Occasion: Outdoor Activities, Home Backup, Emergency Power Supply, Camping, Medical Rescue; Outdoor Photography, etc
*Home: TV, Standing Fan, Laptop, Smartphones, Tablets
*Outdoor: DC Fan, DC LED Lights, Small Fridge
*Digital electronic products: Projectors, Camera, Small Blenders, Drone
*Medical Rescue:Breathing machine, CPAP
*Camping:Camping Lights, Car Vacuums, Car Rice Cooker, Car Air Purifier
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
