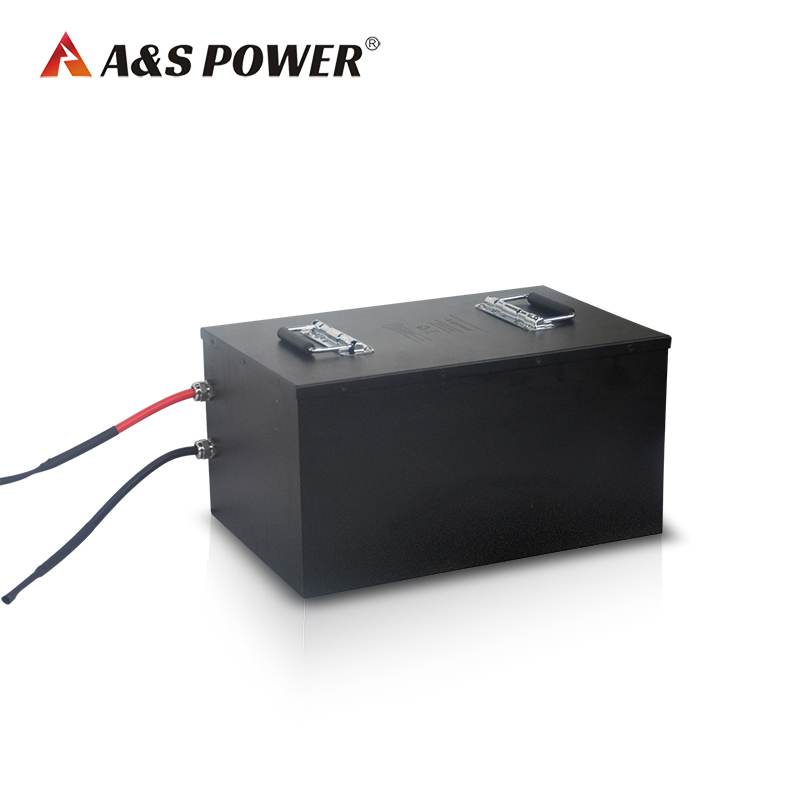

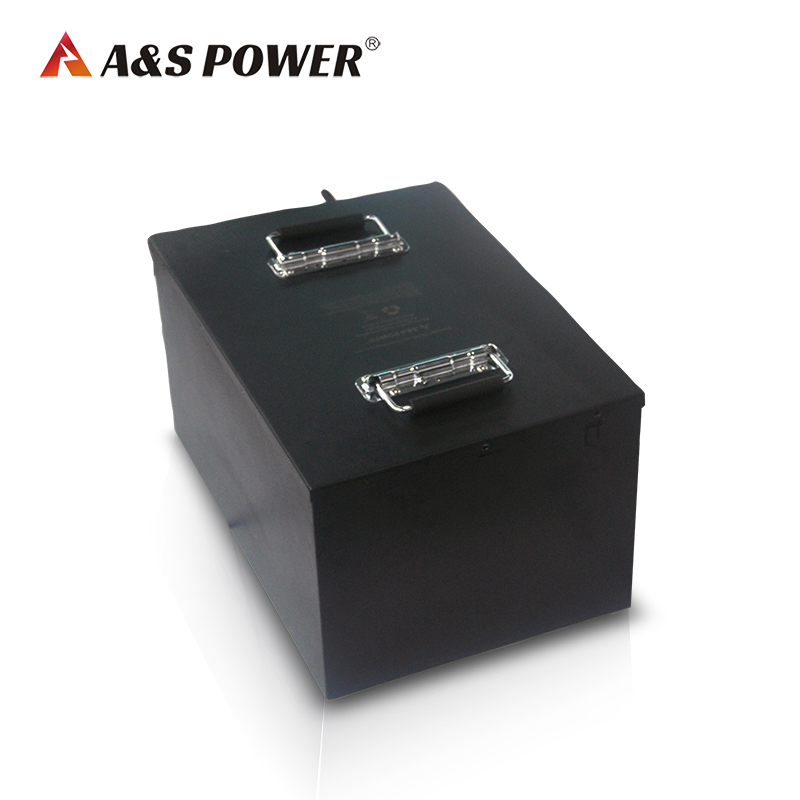

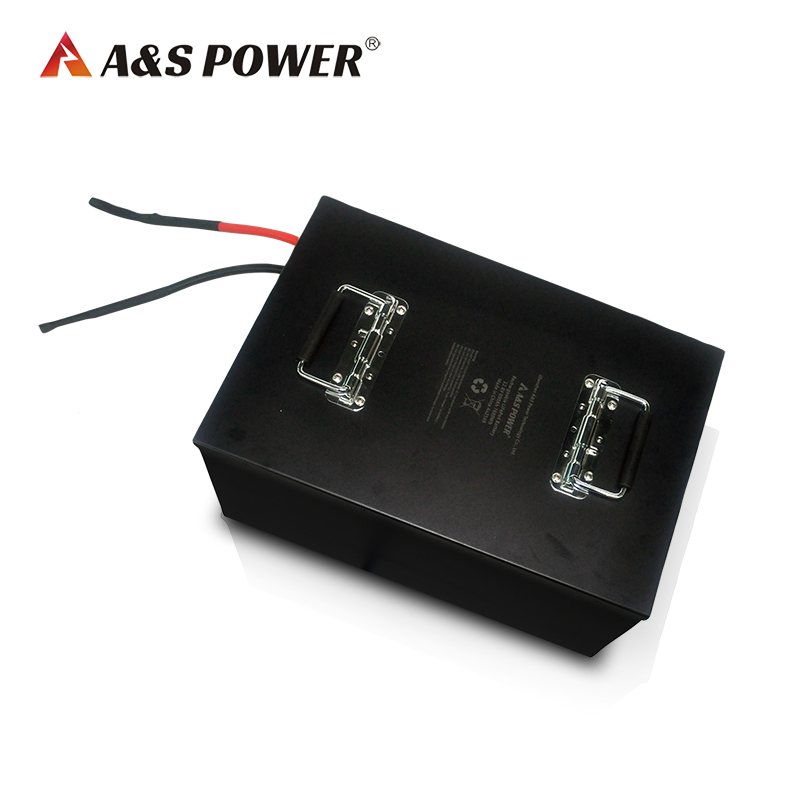

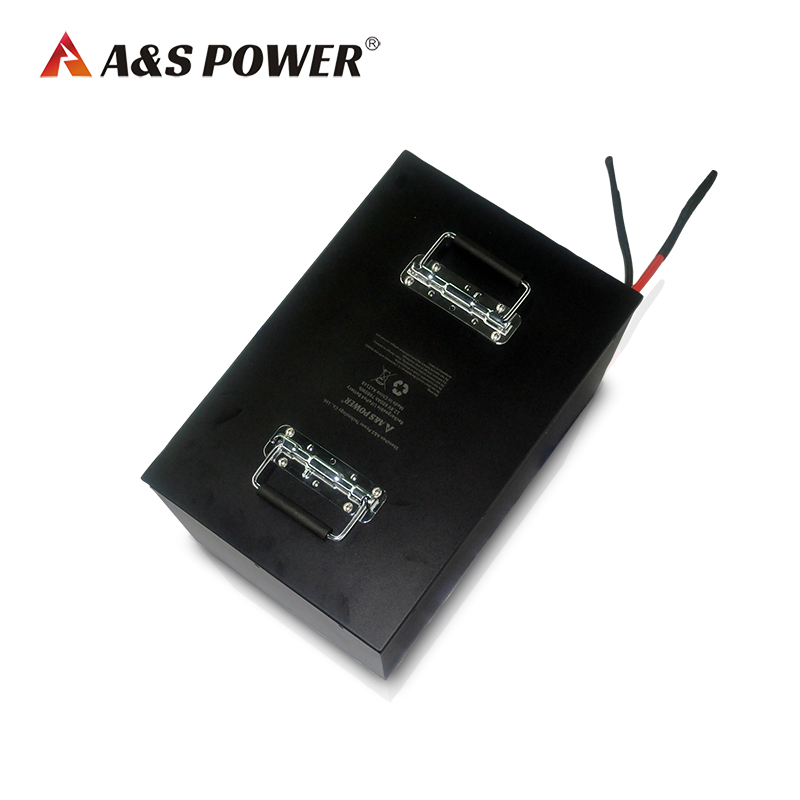

12.8v 300Ah 600Ah Lifepo4 Battery
12.8V 300Ah 600Ah is the best-selling deep cycle lithium battery on the market
Product Specifications
- Model No.: AS-12.8V-600A
- Battery Type: Lifepo4 Battery
- Voltage: 12.8v
- Capacity: 600Ah
- Weight: 65KG
- Unit size: 320*469*260mm
- Warranty:3 Years
- Cycle life:over 2000tims
- Application: RV/Yacht/Camper/Trailer/Motor Home/Recreational Ve
Product Introduction
| Item | Rating | Note | ||
| 3.1 Capacity | Typical | 600Ah | Charge: 0.2C@25±2ºC Discharge:0.2C@25±2ºC |
|
| Minimum | 600Ah | |||
| 3.2 Nominal Voltage | Average 12.8V | |||
| 3.3 AC Impedance Resistance | ≤5mΩ | Cell | ||
| ≤300mΩ | Battery Pack | |||
| 3.4 Discharge Cut-off Voltage | 10.0V | |||
| 3.5 Charge Current | 120 A | Standard Charge | ||
| 3.6 Charge voltage | 14.6V | |||
| 3.7 Charge Tiem | Approx 6 H | Standard Charge | ||
| 3.8 Storage humidity | < 75%RH | |||
| 3.9 Max Charge Continuous | 300 A | |||
| 3.10 Discharge Continuous | 120 A | |||
| 3.11 Max Discharge Continuous | 300 A | |||
| 3.12 Weight / | Approx 65 Kg | |||
| 3.13 Shipping Voltage / | 12.8-13.8V | |||
| 3.14 Operating Temperature | Charge | 0~+45ºC | ||
| Discharge | -20~+60ºC | |||
| 3.15 Storage Temperature | less than 1 month | -20~+45ºC | Recommended storage temperature: 25±2ºC,at the shipment state |
|
Features:
• Environment friendly: Lead-free
• Long life: 2000 times cycle life, life up to 10 years
• Light weight: only 30% of the weight of lead-acid battery
• High power: provide 2 times of lead-acid battery power output
• Flexibility: modular design, can realize 4 series, multiple parallel.
Applications
*RV
*Yacht
*Camper
*Trailer
*Motor Home
*Recreational Ve
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
