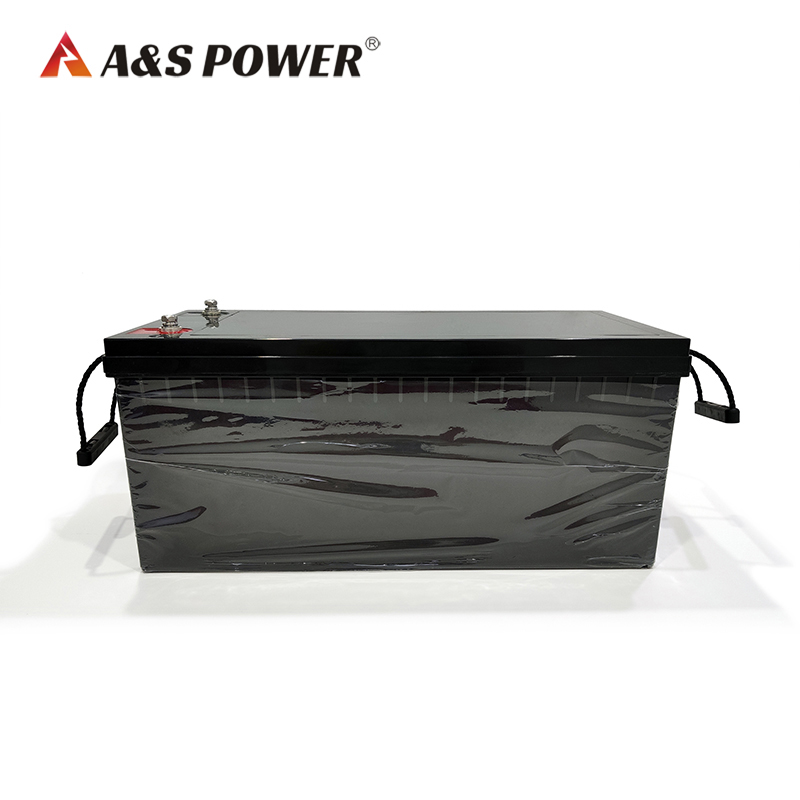

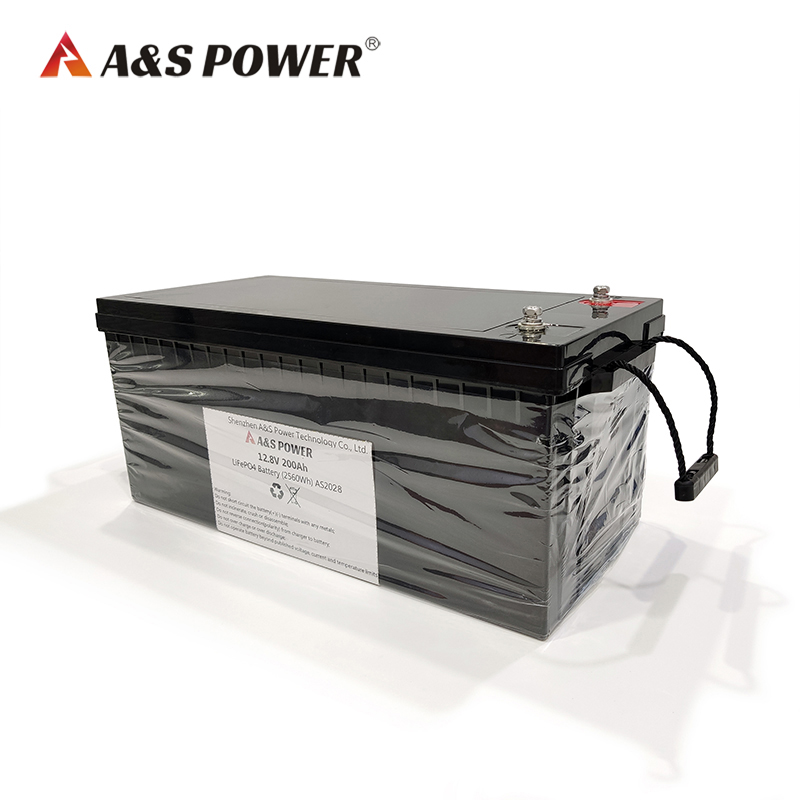

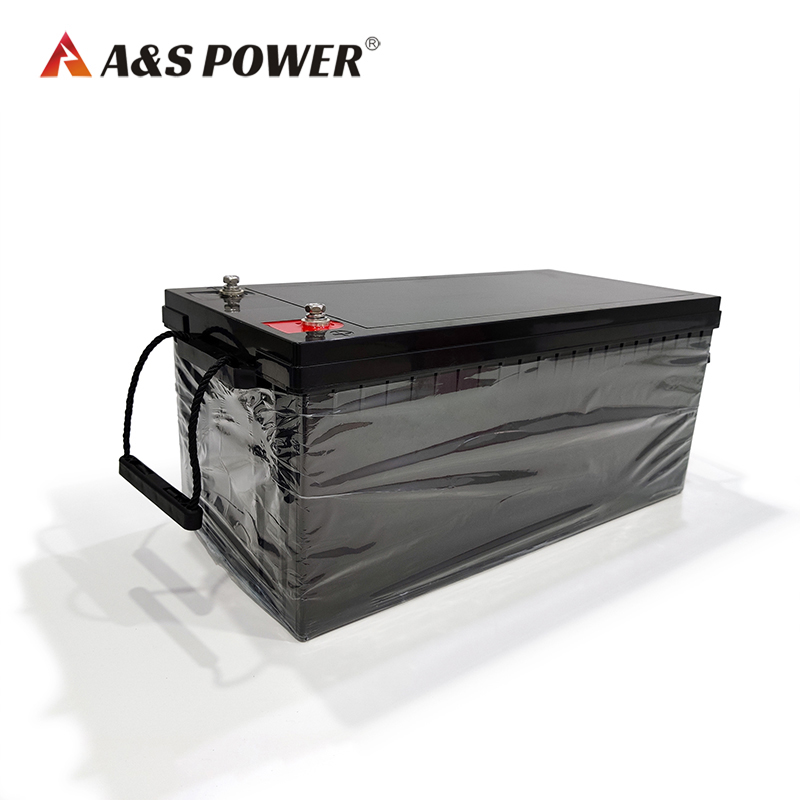

12.8V 200Ah Lifepo4 Battery with BMS
12.8V 200Ah is the best-selling deep cycle lithium battery on the market
Product Specifications
- Model No.: AS-12.8V 200Ah
- Battery Type: Lifepo4 Battery
- Voltage: 12.8v
- Capacity: 200Ah
- Weight: 27KG
- Unit size: 522*238*220mm
- Cycle life:over 2000tims
- Application: Solar energy storage, wind power, off-grid systems, solar street light, Home energy storage, golf cart, electric wheelchair, Instrumentation, power tool, medical equipment, UPS and emergency lights, Sweeping robot, AGV
Product Introduction
| No. | Item | unit | Parameters | Remark | |
|
1 |
Nominal Capacity | Ah | 200.0 |
Capacity according to standard discharge, After standard charge |
|
|
2 |
Nominal Voltage | V | 12.8 |
Average Voltage according to standard discharge, After standard charge |
|
|
3 |
Charge Type | / | CC/CV |
/ |
|
|
4 |
Charge Voltage | V | 14.4 |
/ |
|
|
5 |
Max. Charge Voltage | V | 14.6 |
/ |
|
|
6 |
Fast Charge current | A |
100 |
||
|
8 |
Fast discharge current | A |
100 |
||
|
9 |
Weight | kg | 27kg |
/ |
|
|
10 |
Inner Resistance | mΩ | <35 |
/ |
|
|
11 |
Dimension(T×W×H) | 522*238*220mm |
/ |
||
|
12 |
Working Temperature | Charging | °C | 0~45 | / |
| Discharging | °C | -20~60 |
/ |
||
|
13 |
Storage Temperature | 1 month | °C | -20~60 | / |
|
3 months |
°C |
-20~45 |
/ |
||
| 6 months | °C | -20~25 |
/ |
||
Features:
• Environment friendly: Lead-free
• Long life: 2000 times cycle life, life up to 10 years
• Light weight: only 30% of the weight of lead-acid battery
• High power: provide 2 times of lead-acid battery power output
• Flexibility: modular design, can realize 4 series, multiple parallel.
Applications
*Home Appliances
*Golf Carts
*Power Tools
*BOATS
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
