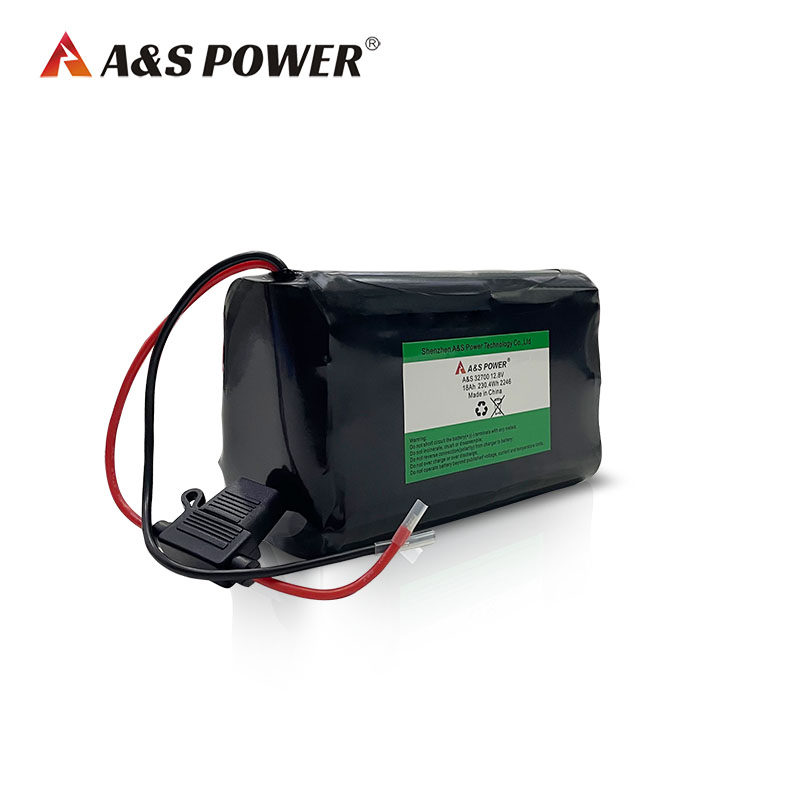

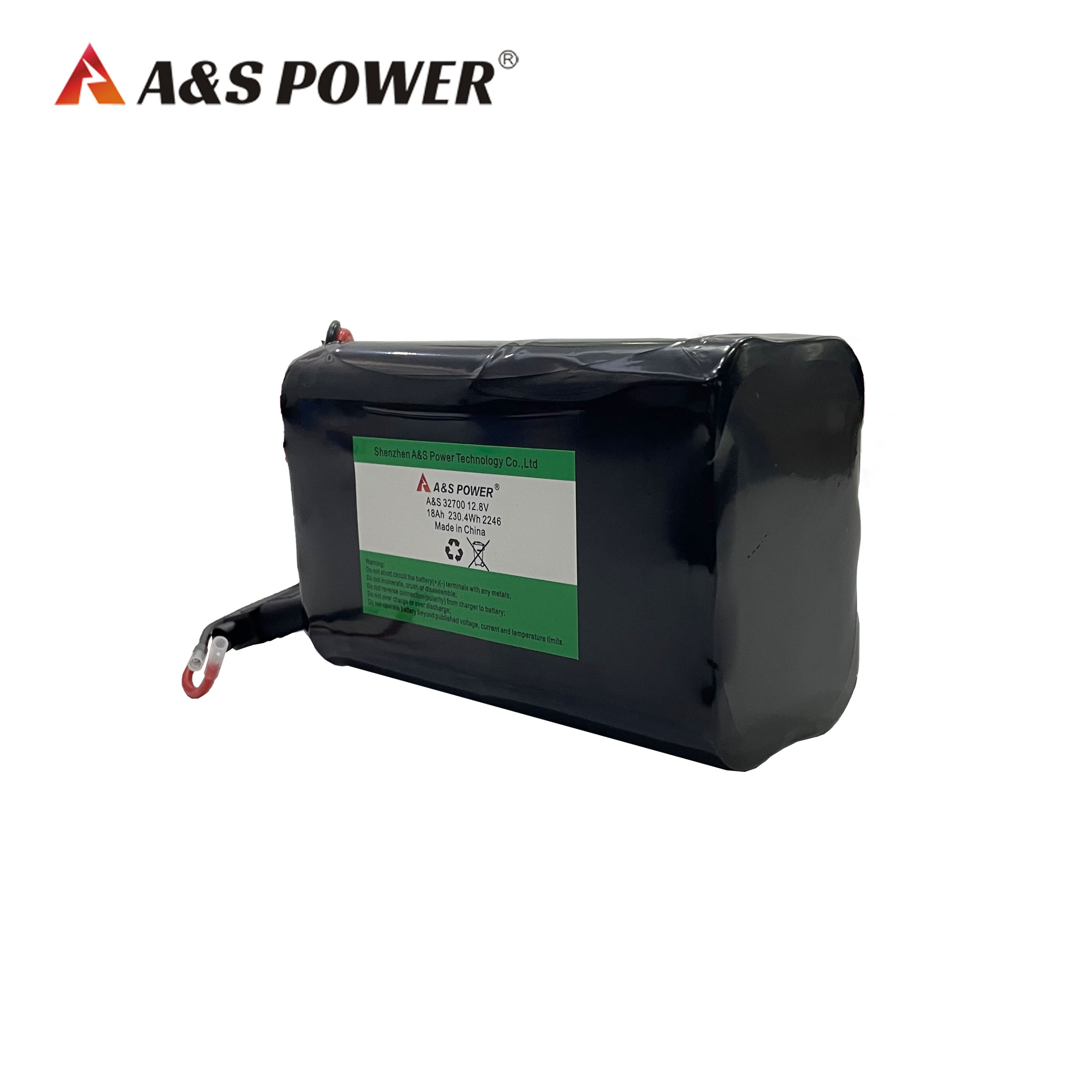

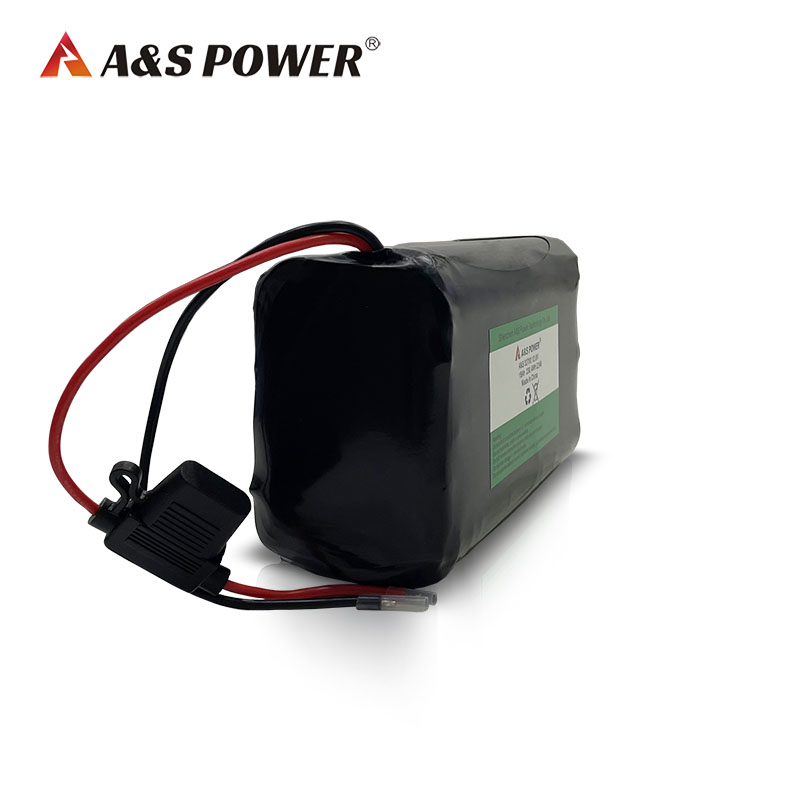

12.8V 18Ah LiFePO4 Battery Pack
Cycle life:over 2000times. Certification: UL.
Product Specifications
- Model No.: AS-12.8V 18Ah
- Battery Type: Lifepo4 Battery
- Voltage: 12.8V
- Capacity: 18.0Ah
- Weight: 1.6KG
- Unit size: 67.5*144.5*102.0 mm
- Cycle life:over 2000times
- Application: Solar Light, Storage, Power tools etc
Product Introduction
|
No.
|
Item
|
Parameters
|
Remarks
|
|
1
|
Norminal Capacity
|
18Ah
|
Discharge:0.2CmA (1200mA)
Cut off Voltage:9V for cell |
|
2
|
Norminal Voltage
|
12.8V
|
Discharge:0.2CmA (1200mA)
Cut off Voltage:9V for cell |
|
3
|
Charge type
|
CC/CV
|
/
|
|
4
|
Discharge cut-off Voltage
|
10.0V
|
/
|
|
5
|
Charge Current
|
3.6A
|
Standard Charge
|
|
6
|
Charge Voltage
|
14.6V
|
|
|
7
|
Max. Charge Current
|
9A
|
0.5CmA
|
|
8
|
Max. Discharge Current
|
18A
|
1.0CmA
|
|
9
|
Weight
|
Approx 1.6kg
|
/
|
|
10
|
AC Impedance Resistance
|
≤40mΩ
|
/
|
|
11
|
Dimension(T*W*H)
|
67.5*144.5*102mm
|
/
|
|
12
|
Working temperature
|
Charging:0~45 °C;
Discharging:-20~60°C |
/
|
|
13
|
Storage temperature
|
1 month: -20~60°C;
3 months: -20~45°C; 6 months: -20~25°C |
Recommended storage
temperature: 20℃, at the shipment state
|
Product Advantage
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 2000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
Applications
*Solar Light
*Storage
*Power tools etc
*The above data is for reference only. CONTACT US for detailed information and customized solutions.
