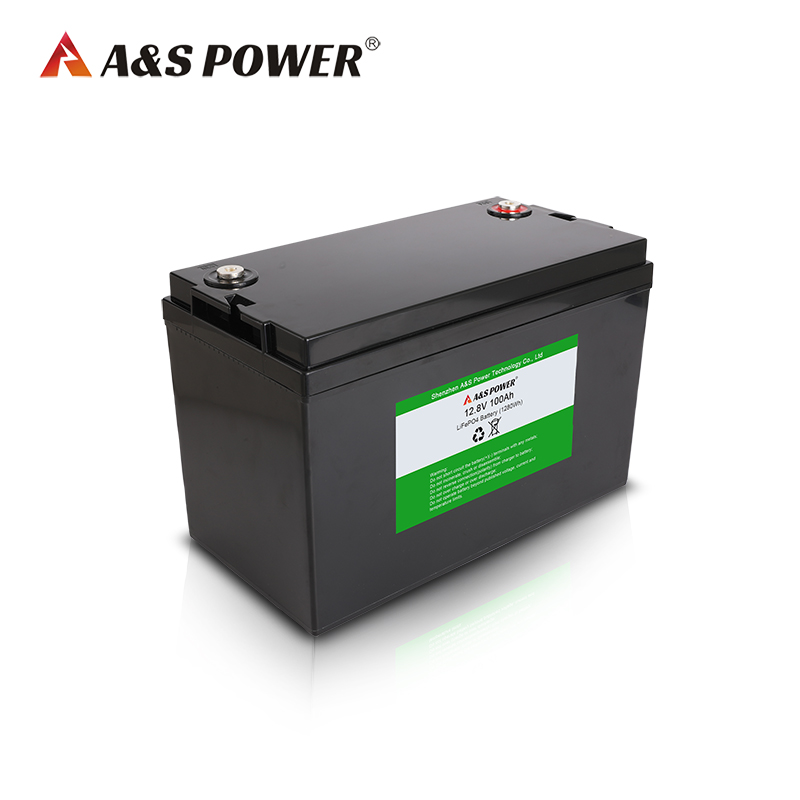

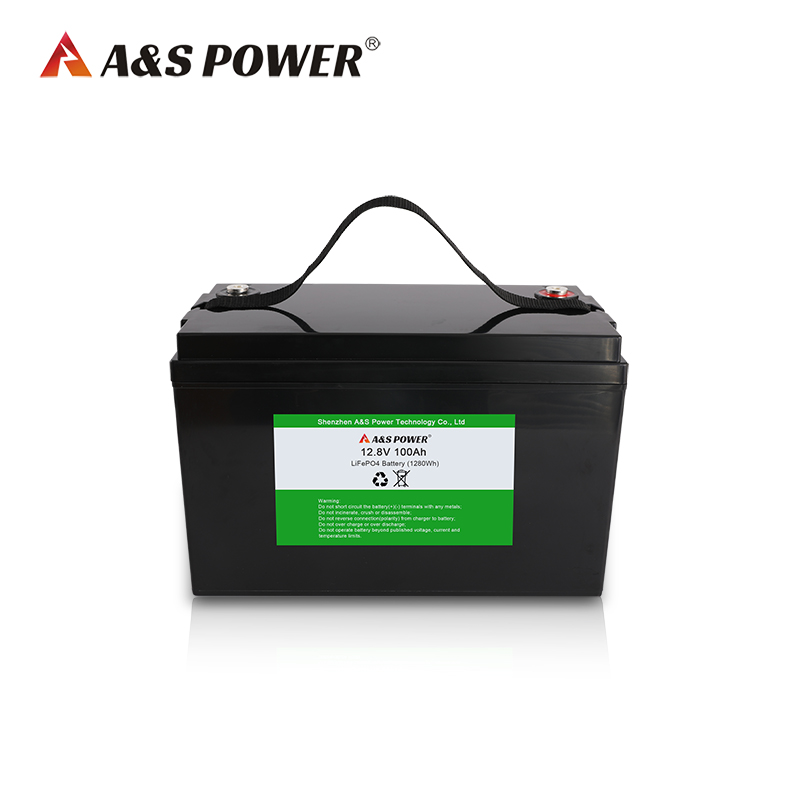

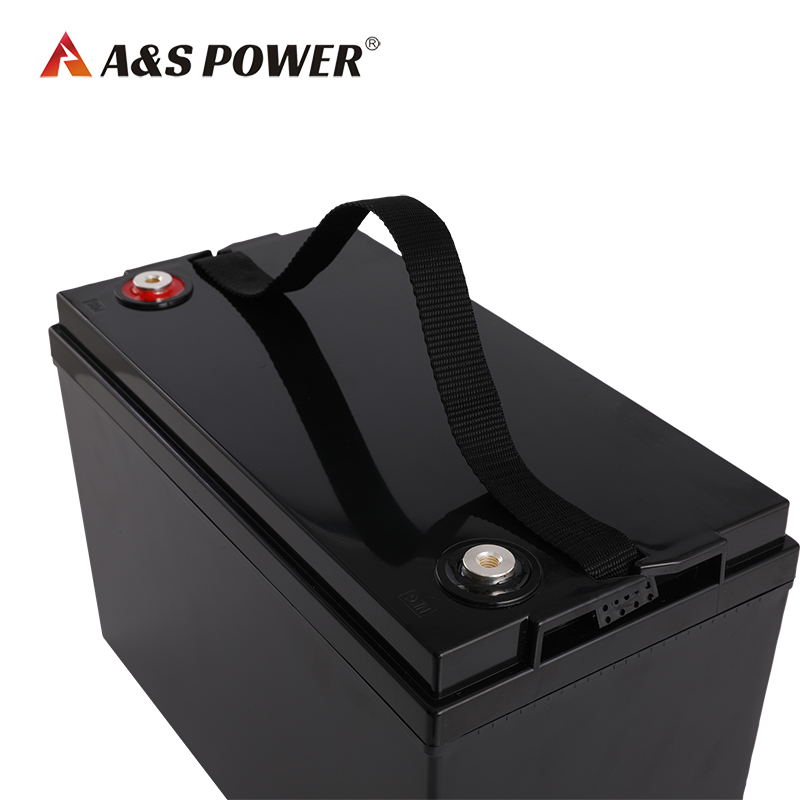

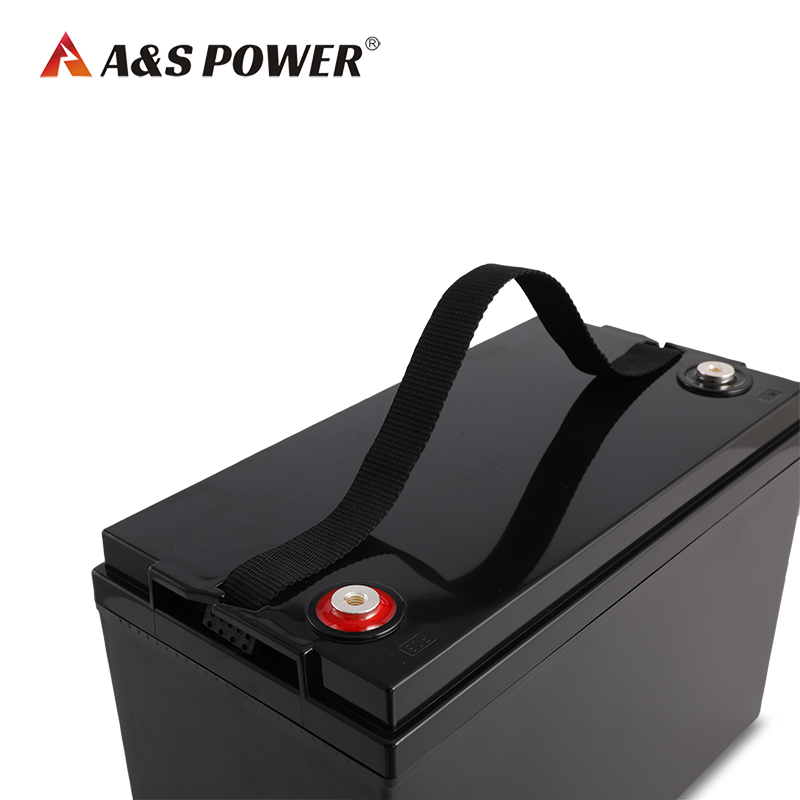

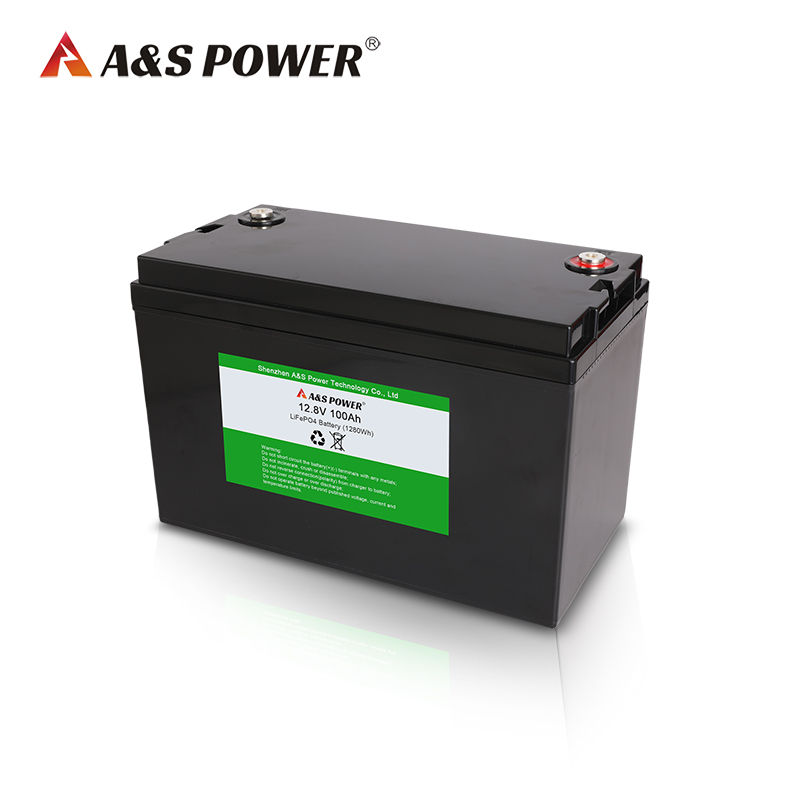

12.8V 100Ah Lifepo4 Battery

32700 12V 100Ah is the best-selling deep cycle lithium battery on the market

icon_pic_arrow_up

  • 12.8v 100ah LiFePO4 battery
  • 12.8v 100ah LiFePO4 battery
  • 12.8v 100ah LiFePO4 battery
  • 12.8v 100ah LiFePO4 battery
  • 12.8v 100ah LiFePO4 battery
  • 12.8v 100ah LiFePO4 battery

icon_pic_arrow_down

12.8v 100ah LiFePO4 battery

Product Specifications

  • Model No.:  AS-IFR327004S17P
  • Battery Type: Lifepo4 Battery
  • Voltage:12.8v
  • Capacity:100Ah
  • Weight: 13.1KG
  • Unit size: 328*172*220mm
  • Cycle life:over 2000times
  • Application: Home Storage/Solar Light/RV/Solar Storage/Camper/AGV/Golf Cart/Marine/Yacht

Product Introduction







Electrical Characteristics

 Nominal Voltage 12.8v
Nominal Capacity 100Ah @ 0.2C
Energy 1280Wh
Internal resistance  ≤45mΩ
Cycle Life >2000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70% capacity
Months Self discharge

≤3.5% per month at 25ºC




Standard Charge

 Charge voltage 14.6±0.2V


Charge Mode( CC/CV)

 At 0ºC~45ºC temperature, charged to 14.6v at constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6v until the current was not more than 0.02C5A
Charge current 20A
Max.Charge current

50A




Standard Discharge

 Discharge current 20A
Max.continuous current 100A
Max. Pulse current 200A (<3S)
Discharge cut-off voltage

10.0V




Environmental

 Charge Temperature 0ºC to 45 ºC
Discharge Temperature -20ºC to 60 ºC
Storage Temperature 0ºC to 45 ºC
Water Dust Resistance

IP55




Mechanical

 Cell & Method IFR32700 N60,4S17P
Plastic Case ABS
Dimension (L*W*H*TH) 328*172*215*220mm
Weight Approx. 13.1KG
Terminal

M8



Features:



• Environment friendly: Lead-free
• Long life: 2000 times cycle life, life up to 10 years
• Light weight: only 30% of the weight of lead-acid battery
• High power: provide 2 times of lead-acid battery power output
• Flexibility: modular design, can realize 4 series, multiple parallel.





Widely Applications For Lithium Battery 12v 100ah



The proprietary lithium iron phosphate chemistry of this battery makes it less of a hassle to maintain and utilize the power you need.

Not only are they designed to store power with ease, but they also provide you with lasting peace of mind, and their tremendous

durability makes it easy to use them at home, at work, or for your outdoor needs where trust, safety, and the environment matter most.

Widely used in caravan and camping, Backup Power, Electric Vehicles and golf cart, Floor Machines, Marine and boats, Recreational Vehicles, and Solar energy.





This high-quality Lifepo4 battery is a reliable and efficient solution for your home storage and solar light needs. With a voltage of 12.8v and a capacity of 100Ah, this battery is capable of powering your devices for extended periods.




The AS-IFR32700 4S17P Lifepo4 battery has been designed with durability and longevity in mind. It is made from high-quality materials and has undergone rigorous testing to ensure that it is both safe and reliable.
This battery is easy to install and maintain, making it an ideal choice for those who require a hassle-free power solution. The compact size of the battery (328*172*220mm) and its lightweight design (13.1kg) make it easy to move and transport.




The AS-IFR32700 4S17P Lifepo4 battery is suitable for a range of applications, including home storage and solar light. Its high capacity and voltage make it an ideal choice for powering larger devices, such as refrigerators and air conditioning units.




This battery is also highly efficient, with a low self-discharge rate and a long cycle life. This means that you can rely on it to provide power when you need it, without having to worry about frequent maintenance or replacement.




If you’re looking for a reliable and efficient power solution for your home or business, the AS-IFR32700 4S17P Lifepo4 battery is an excellent choice. With its high-quality construction, long cycle life, and low self-discharge rate, you can be confident that this battery will provide you with years of trouble-free use.





Applications



*Home Storage

*Solar Light

*RV

*Solar Storage

*Camper

*AGV

*Golf Cart

*Marine

*Yacht

*The above data is for reference only. CONTACT US for detailed information and customized solutions.
